Pallet Stacker uses forks or string rods as picking devices to pick up, move and stack in warehouses, workshops, etc., or pick and place unit goods from high-rise shelves. It is a kind of storage equipment.
Inquiry1、American import CURTS control system enables the machine to perform flexibly under various working conditions and makes the machine the best efficiency of energy utilization.
2、Three sets of independent brake systems improve machine safety.
3、High-position buffering: The most speed is limited when the goods operation is in a high position.
4、The multi-functional handle meets ergonomics, it is easy and comfortable to operate.
5、The specific vertical driving prevents the machine from dust, moisture erosion. It has better cooling performance which is good for long-hour working.
| Model | LT515L-W01TB | |
| Specifications | UNIT | |
| Power Type | Electronic | |
| Operation mode | Stand-on | |
| Rated Capacity | kg | 1500 |
| Load Center distance | mm | 500 |
| Standard Lifting Height | mm | 2500 |
| Height with mast not lifted | mm | 1800 |
| Mast height when lifting | mm | 3031 |
| Min. ground clearance | mm | 90 |
| Total length(pedal unfolded/extracted) | mm | 2455/2045 |
| Length till fork face(pedal unfolded/extracted) | mm | 1305/895 |
| Wheel base | mm | 1427 |
| Total Width | mm | 850 |
| Wheel track front/rear | mm | 490/618 |
| Fork spec. | l/e/s(mm) | 1150/190/75 |
| Fork distance(outside) | mm | 680 |
| Passage width(1000×1200 pallet)pedal unfolded/retracted | mm | 2948/2553 |
| Passage width(800×1200 pallet)pedal unfolded/retracted | mm | 2920/2525 |
| Turning radius pedal unfolded/retracted | mm | 2120/1725 |
| Travel speed full/no-load | km/h | 4.0/5.8 |
| Grade ability(S2 5) full/ no load | % | 8/10 |
| Drive motor type | AC | |
| Power of drive motor(S2 60) | KW | 1.5 |
| Lifting motor type | DC | |
| Power of lifting motor(S3 15%) | KW | 2 |
| Battery voltage/capacity | V/Ah | 24/210 |
| Battery weight | kg | 200 |
| Dead weight(with battery( | kg | 940 |
| Steering type | manual | |
| Stop brake type | electro-magnetic | |
| Park brake type | electro-magnetic | |

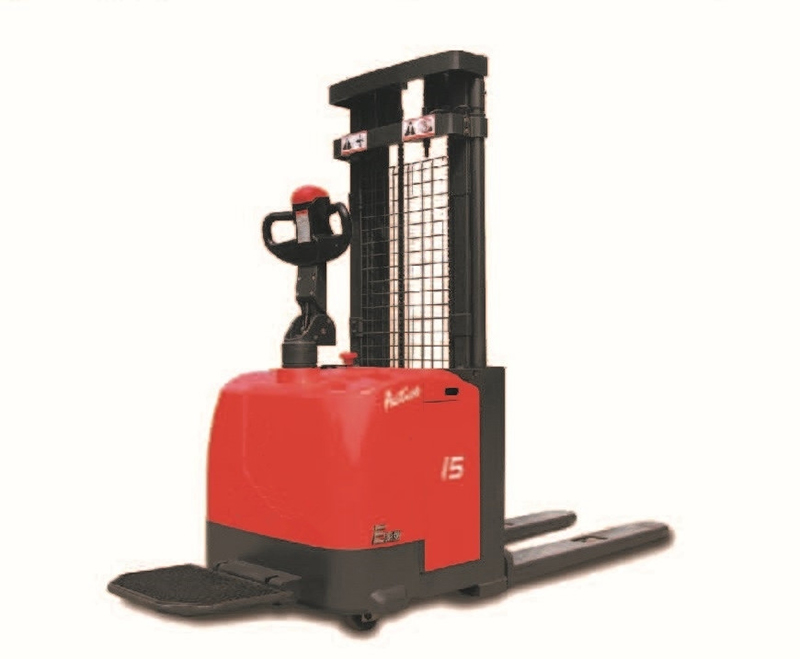

LT515L-W01TB is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of warehouses and other departments.
