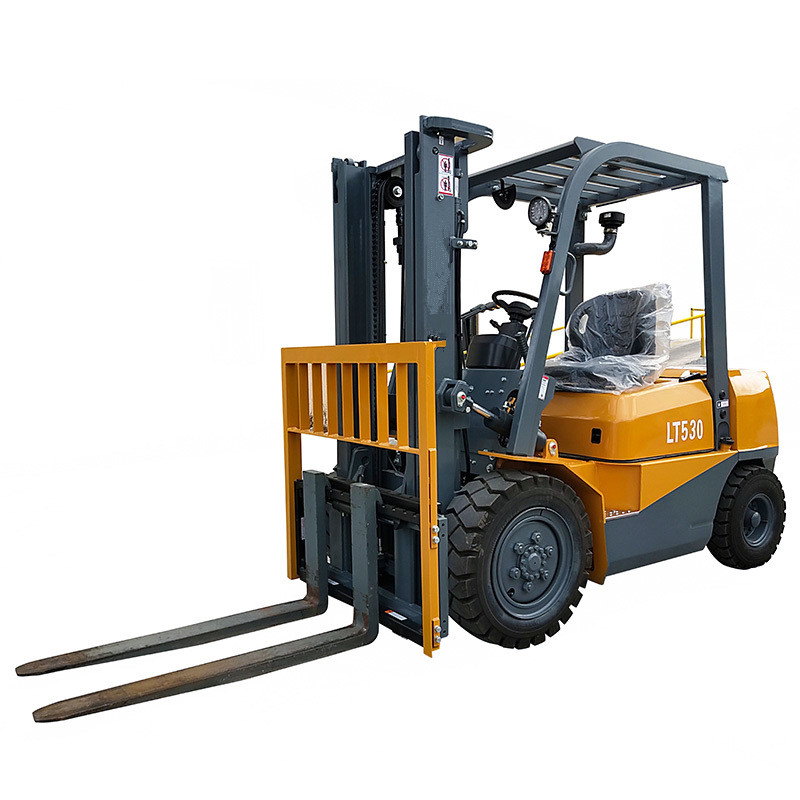

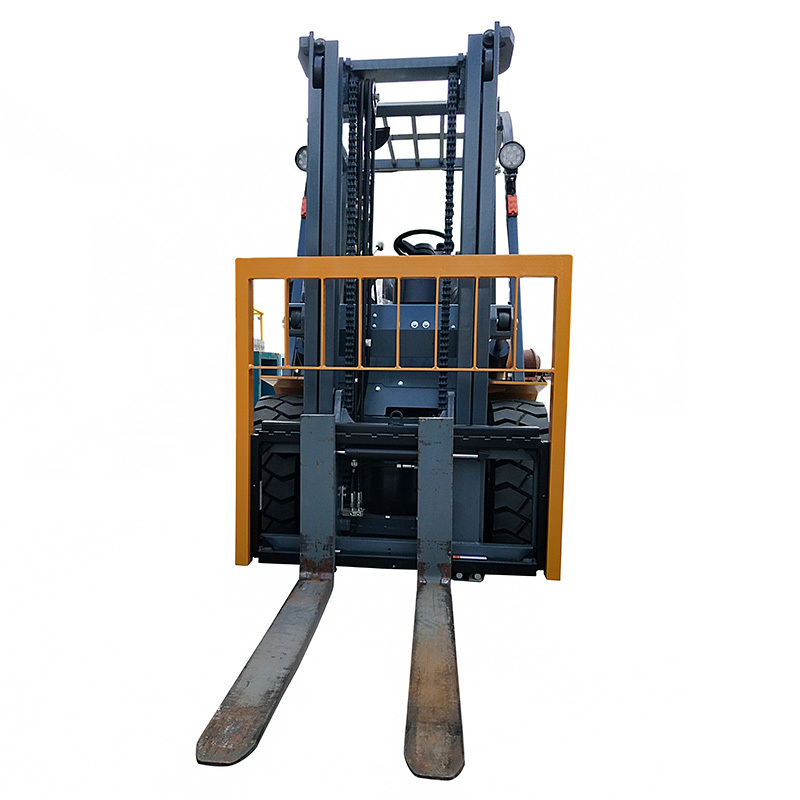

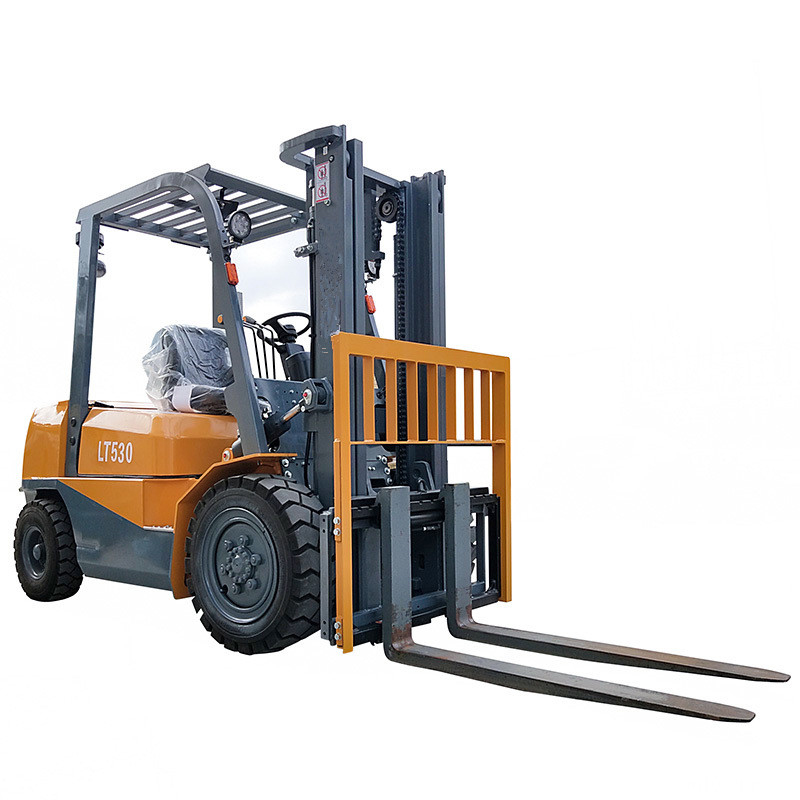

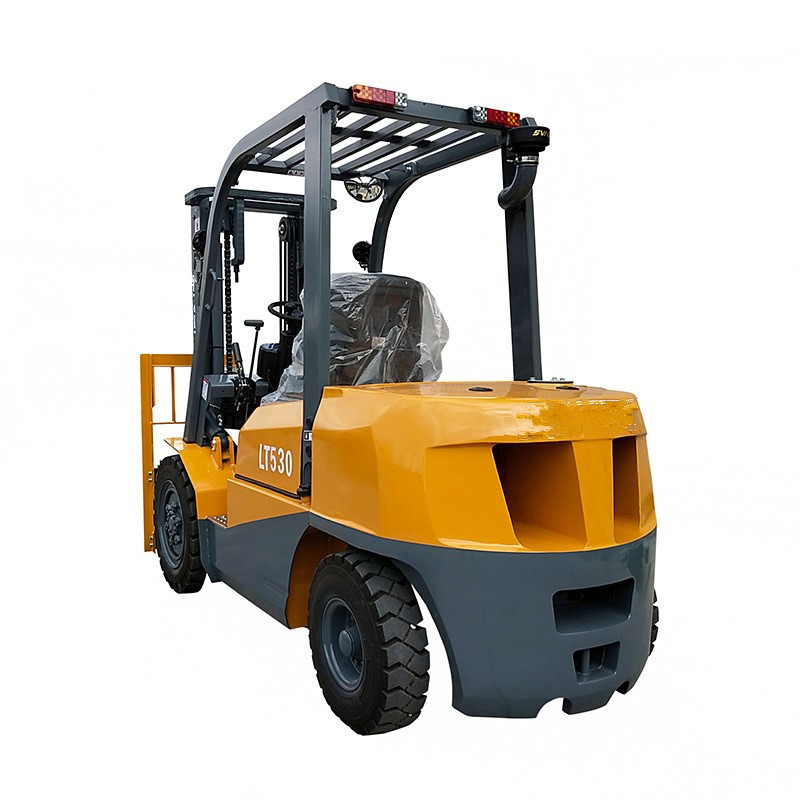

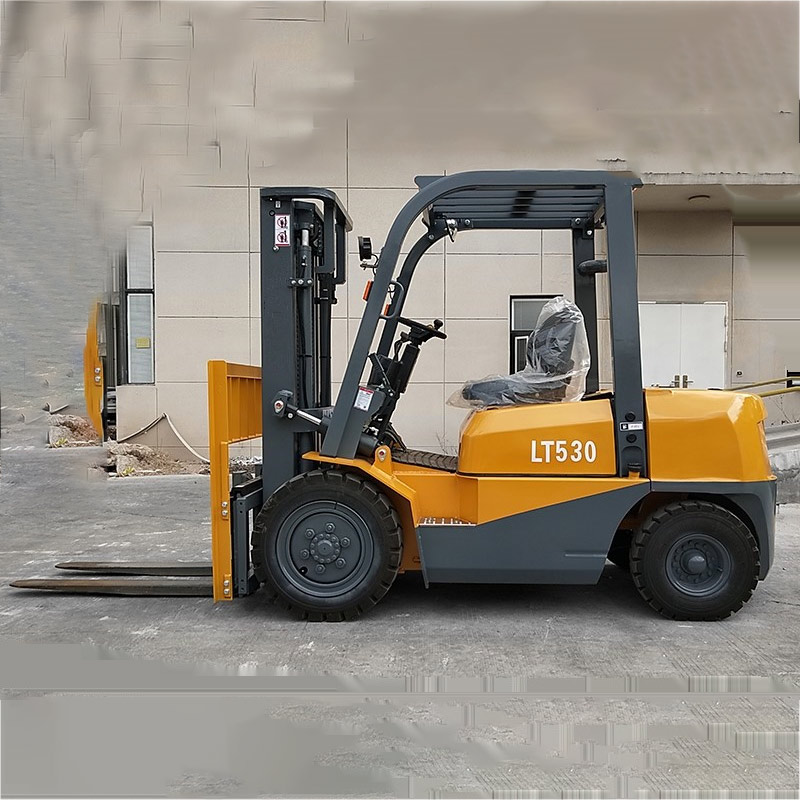

LT530 3Ton Diesel Powered Forklift Truck

Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.

Inquiry

3 ton diesel powered forklift truck LT530 product feature

High quality
— Adopt grade ability improving style electronic hydraulic transmission, compare with other models: efficiency 5% improved, climbing torque 8% increased, noise 3~5dB reduced, thermal equilibrium temperature 8-10°decreased.
— The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle.
— Load sensing priority steering hydraulic system is adopted to reduce pressure loss of the hydraulic system, save energy and improve operator comfort.
High Security
Introducing advances technology from Germany, the unique single chain has greatly enhanced the front.

View while working

— All car LED lights, high brightness, long life, energy-saving, and environmental protection.
High Comfort
— The new suspension system, adjustable seat, allowing the driver to feel more comfortable and reducing fatigue during long operations.
— The combined color instrument has strong human-machine interaction and timely and accurate feedback on the running state of vehicles.
— Spacious control space, comfortable seats, enjoy the pleasure of riding.

Rich options

ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two-stage free lift mast, three-stage free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.

3 ton diesel powered forklift truck LT530 product parameters

Model UNIT LT530
Specifications Power Unit
Operator Type
Transimission Box Type
Rated Capacity kg 3000
Load Center mm 500
Max.Lifting Height mm 3000
Tire Type
Tire Number Front 2
Rear 2
Tire Size Front 28×9-15-14PR
Rear 6.5-10-10PR
Performance Lifting Speed Loaded mm/s 480
Unloaded 500
Lowering Speed Loaded mm/s 420
Unloaded 400
Travelling Speed Loaded km/h 20
Unloaded 21
Max.Gradeability (Loaded) % 20
Max.Drawbar Pull (Loaded) kn 17
Mast Tilting Angle (Fwd/Bwd) deg 6/12
Free Lifting Height mm 150
Turning Radius mm 2395
Dimensions Overall Length (with fork) mm 3800
Overall Width mm 1240
Overhead Guard Height mm 2145
Fork Size (LxWxT) mm 1220×125×45
Mast Height (Fork lowered) mm 2140
Battery (Voltage/Capacity) V/Ah 12/90
Truck Weight kg 4250
Fuel Tank Capacity L 70
Engine Brand XINCHAI ISUZU
Mode C490 C240
Rated Power kw/rpm 40/2650 35.4/2500
Rated torque n-m/rpm 160/1600-2000 137.7/1800
Number Of Cylinder 4 4
Displacement 2.67 2.37

3 ton diesel powered forklift truck LT530 product details

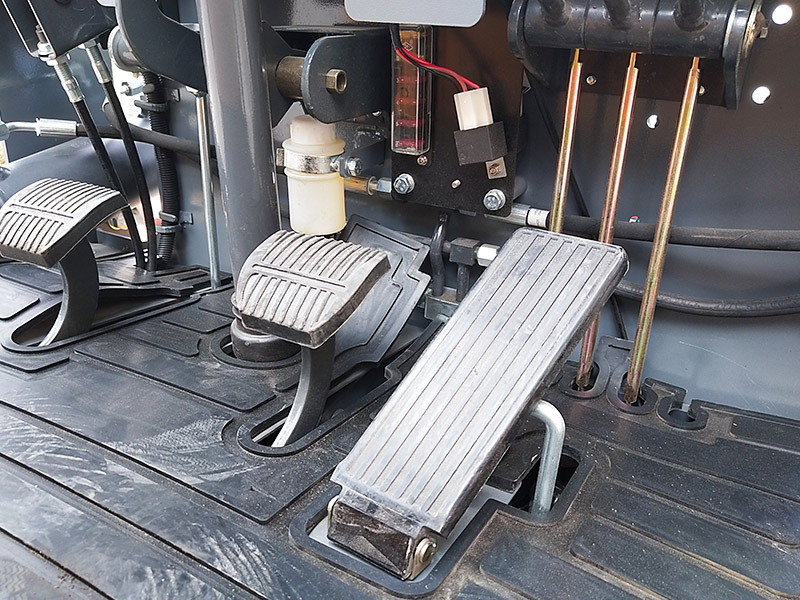

Shifting Is Light And Simple. A tilt oil cylinder is placed inside the frame to increase the maneuvering space. With electronically controlled shifting, shifting is light and simple.
It adopts human-powered hydraulic braking, and rationally designs and operates the brake operating mechanism, which is light in operation, sensitive in response, safe and reliable, and equipped with micro-motion control to facilitate access to the goods.

lt530 3ton diesel powered forklift truck8Structure elucidation

Integral roof guard, profiled steel structure, high strength, and convenient configuration of the cab.

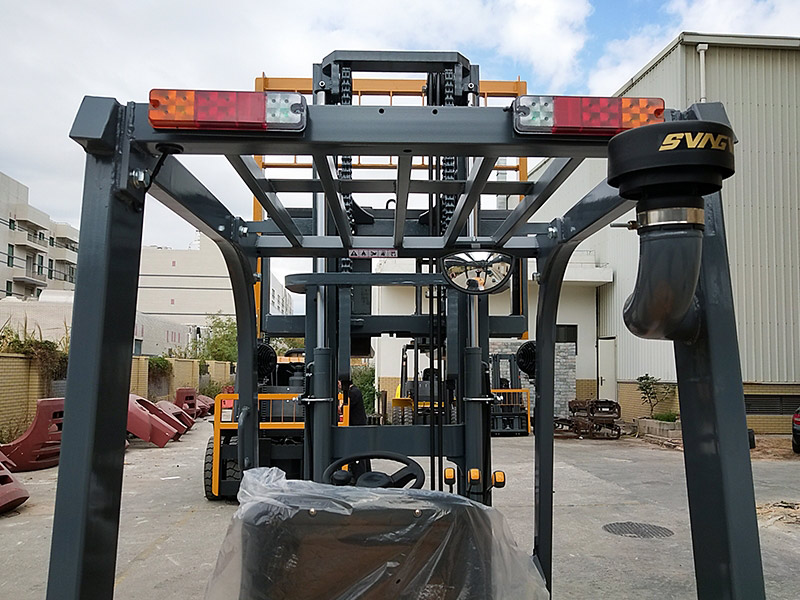

lt530 3ton diesel powered forklift truck12Mast: wide view & durable

Wide-view mast provides excellent through-the-mast visibility improving the work efficiency and allowing safe operation of the forklift. I beam rails and heavy tie bar construction reduce twisting while handling long, lateral loads on rough surface applications.

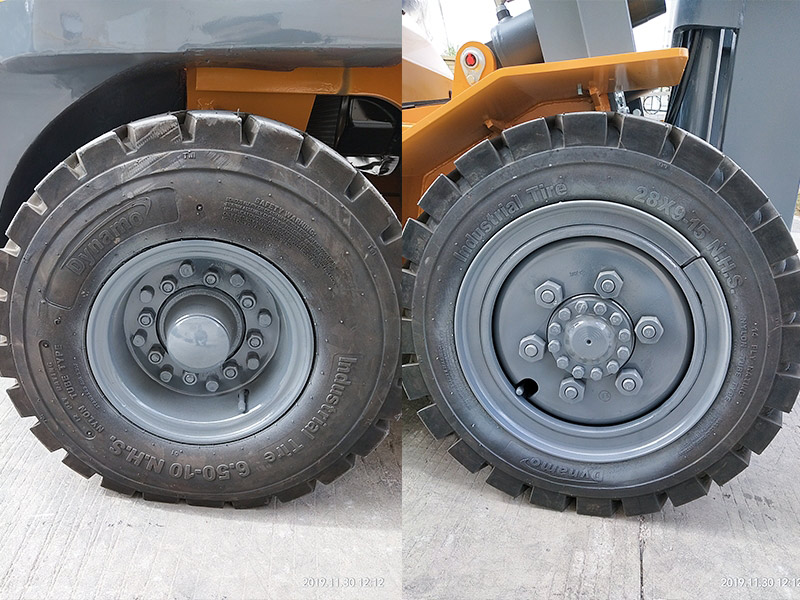

lt530 3ton diesel powered forklift truck10High quality & durable

JOOMACK  forklift tires are special tires with a  footprint giving them greater stability and lift capacity in work environments.

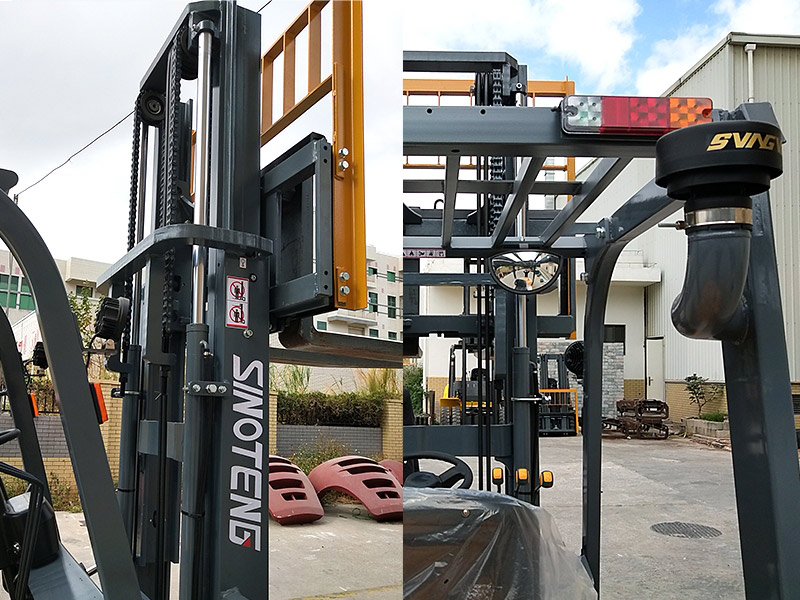

lt530 3ton diesel powered forklift truck11Safety problem
1.Wide view mast, with visibility, increased to enhance the operator’s view and safety.
2.High strength safeguard/cabin by profiled steel insert all around keep the driver safer.

Application and after-sales service

LT530 is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
