Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.
Battery: Li-Ion, Rated
Capacity: 3000kg, Max.
Lifting Height – Standard: 3000mm.
InquiryHigh Safety
Adopt the most secure iron phosphate lithium-Ion battery.
High configuration
Supporting cooperation with well-known international and domestic parts brands.
1. The battery uses international leading brand batteries (CATL, BYD, etc.),
2. American CURTIS control system (full AC);
3. American CURTIS brand instrument.
High Performance
1.Strong adaptability to the environment, unique diaphragm heating technology, responding to the working range of -20 ° C-50 ° C;
2.long life, under normal charging and discharging conditions after 4000 cycles used, the capacity retention of greater than 75%;
3.High energy utilization rate, the normal discharge efficiency of JOOMACH lithium-ion battery can reach more than 98%;
4.Support fast charge mode;
5.Support intelligent cooling.
Save Time
1. In standard mode, 80% charge can be achieved in 2.5 hours.
2. In the fast charge mode, 80% of the charge can be achieved in 1.5 hours.
Cut Costs
The service life of lithium batteries can reach more than five years, and the comprehensive use cost is low.
Release Worry
Maintenance-free, no battery rehydration, zero emissions, and no pollution.
| Summary | Model | UNIT | LT530B-LAA5 |
| Power Model | Li-Ion battery | ||
| Operator Type | Driver seat | ||
| Rated Capacity | kg | 3000 | |
| Load Center Distance | mm | 500 | |
| Max. Lifting Height | mm | 3000 | |
| Operating Weight | kg | 5000 | |
| Dimension | Free Lifting Height | mm | 145 |
| Max. Height(max. lifting) | mm | 4235 | |
| Max. Tilt Angle(Front/Rear) | ° | 6/12 | |
| Overall Length(to fork face)
|
mm/s | 2530 | |
| Overall Width | mm | 1220 | |
| Mast Height (Retracted)
|
mm | 2100 | |
| Overhead Guard Height | mm | 2150 | |
| Fork(LxWxH) | mm | 1070x125x45 | |
| Min. Ground Clearance | mm | 125 | |
| Min Turning Radius | mm | 2210 | |
| Performance | Max. TRAVEL SPEED(full load/Idle load) | km/h | 13/15 |
| Lifting Speed(full load/Idle load) | mm/s | 275/420 | |
| Grade Ability(full load/Idle load) | % | 15/15 | |
| Tire | Tire style | Pneumatic | |
| Tire number | 2×2
|
||
| Front-wheel tire size | 28×9-15-14PR
|
||
| Rear-wheel tire size | 18×7-8-14PR
|
||
| Battery | Voltage/Capacity | V/AH | 80/500
|
| Manufacturer | CATL | ||
| Driving System | Power of driving motor | KW | 16.6(AC) |
| Power of Lifting motor | KW | 13.5(AC) |

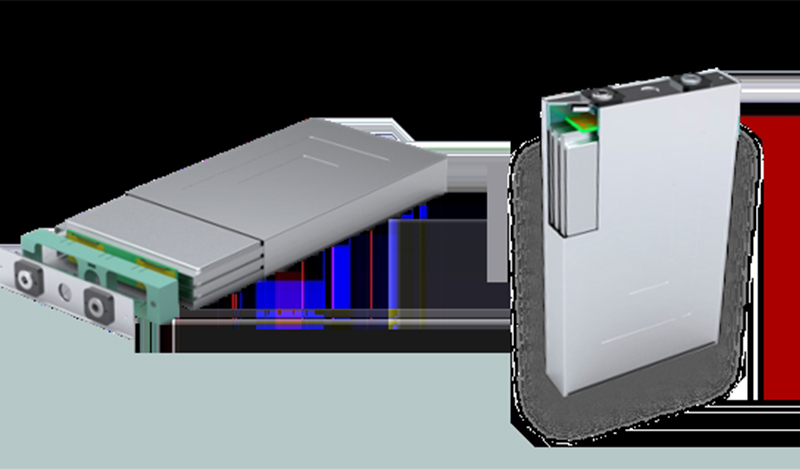

CATL OR BYD Li-Ion Battery

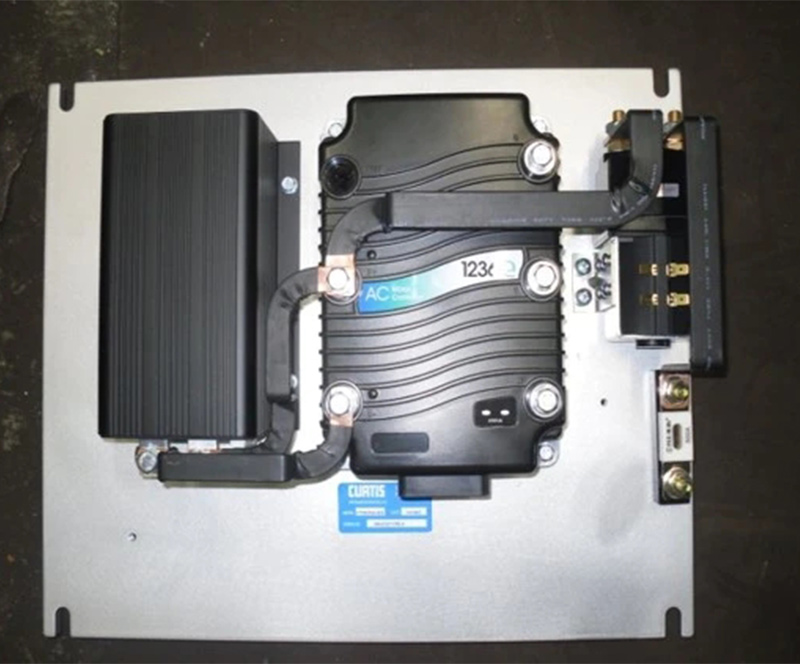

CURTIS CONTROL SYSTEM

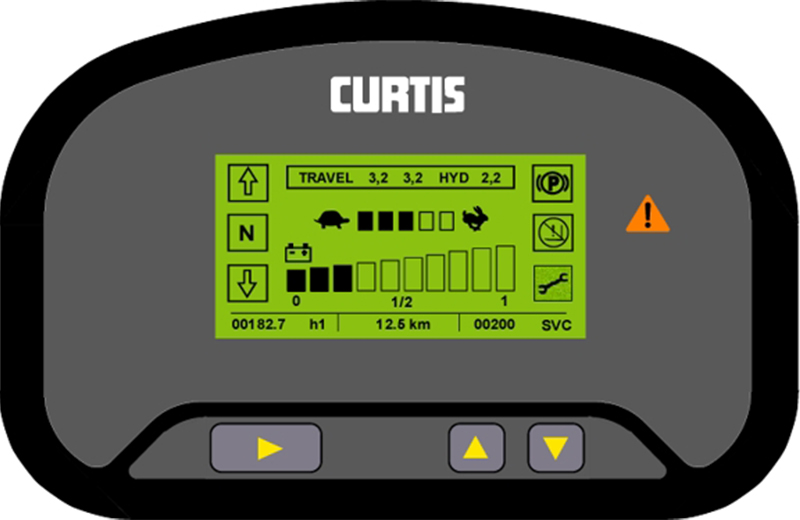

CURTIS INSTRUMENT

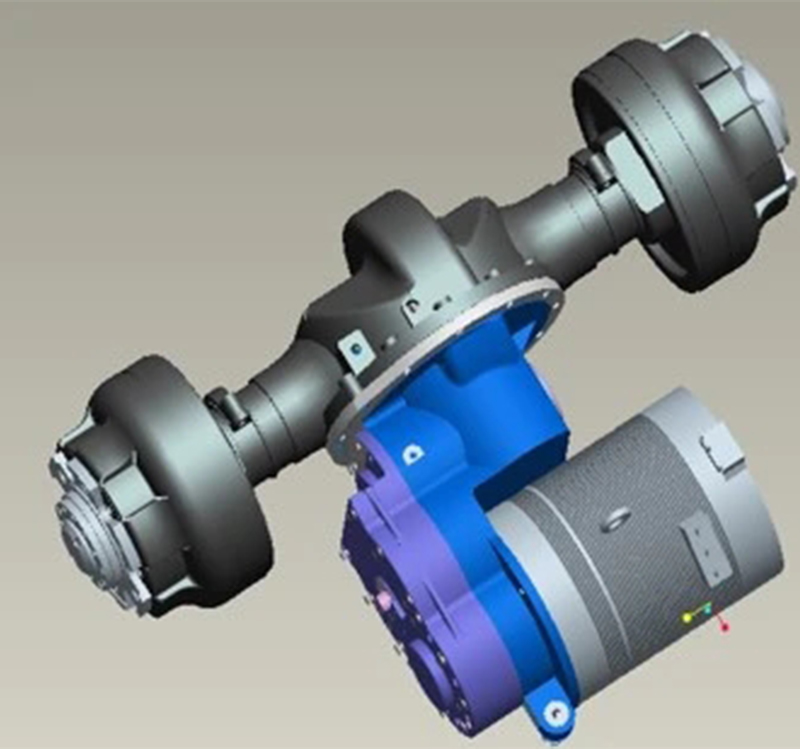

H-FRAME

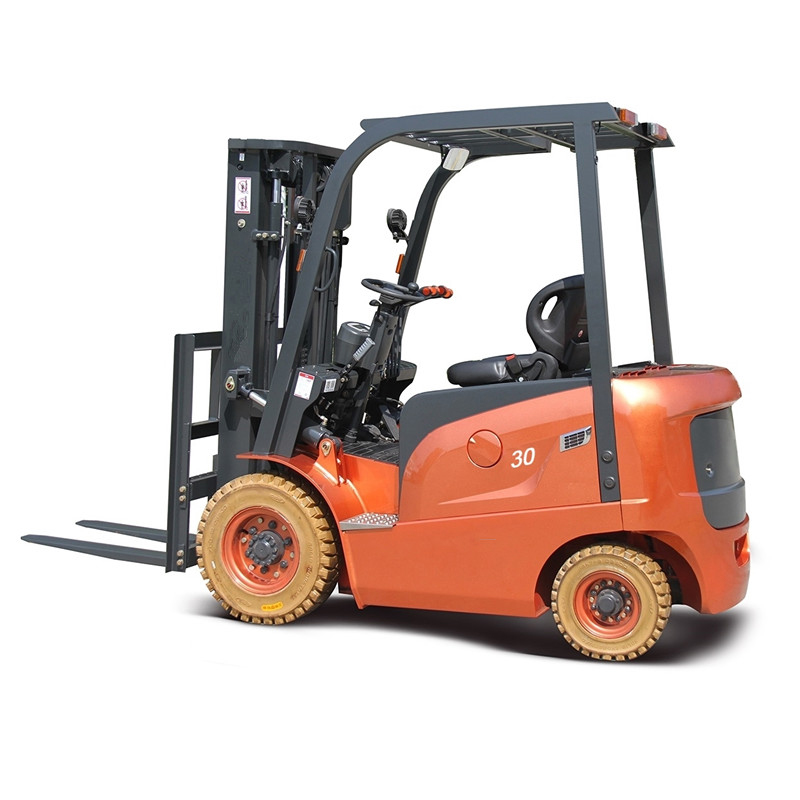

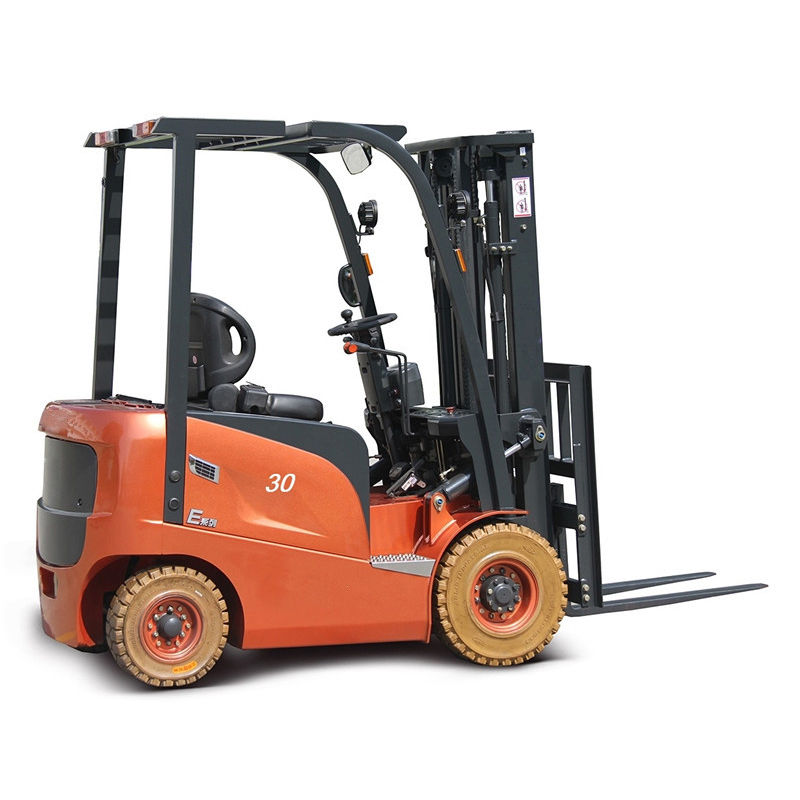

3 ton li-ion electric forklift truck LT530B-LAA5 application and after-sales serviceLT530B-LAA5 is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
