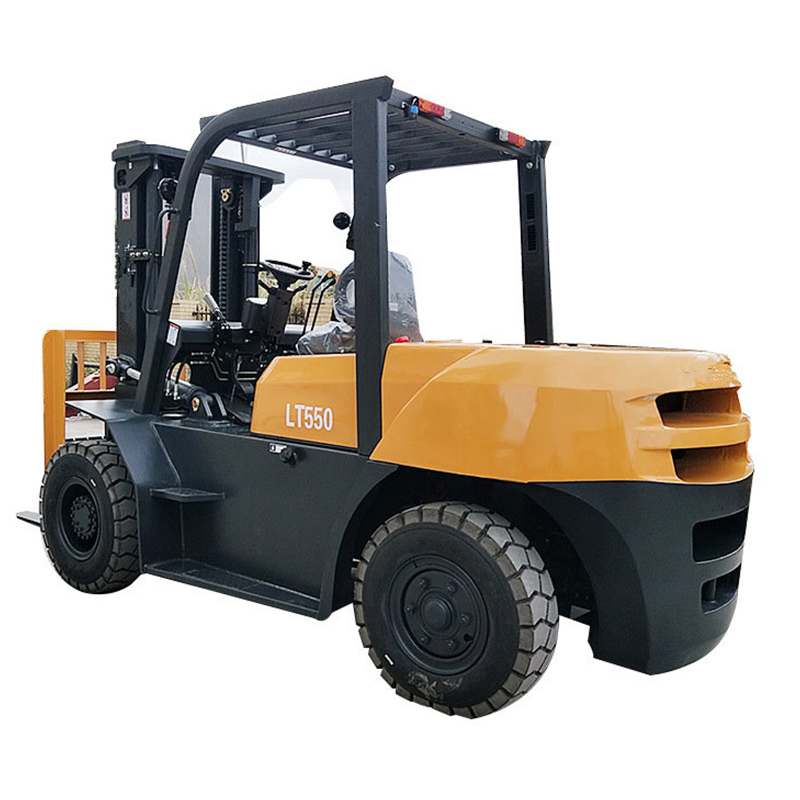

LT550 5Ton Diesel Forklift Truck

Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.

Inquiry

5 ton diesel forklift truck LT550 product feature

Sure the safe operation of the engine
— Optional allocation of a variety of high-quality power, equipped with engine electronic control technology, can protect the engine in many ways;
— Load sensing and dual pump hydraulic system technology are adopted to improve the operation efficiency and reduce the overall energy consumption.

— The super large capacity aluminum tube belt radiator and optimized heat dissipation channel further improve the heat dissipation capacity of the vehicle.
High security
— Equipped with wide-field portal frame system and wide-angle rearview mirror, to provide a good working field of vision for drivers.

High comfort
— Standard diameter 300mm steering wheel, assist system, lightness control, reduce driver fatigue;
— It adopts an optimized cover system and hood locking mechanism. The hood is flexible and convenient to maintain.

Rich options
ISUZU engine, high exhaust device, air prefilter, fireproof cap, solid tire, two-stage free lift mast, three stages free lift mast, widening fork frame, fork sleeve, side shifter, paper roll clamp, bale clamp, carton clamp, block clamp, rotators, drum clamp, push-pull, etc.

5 ton diesel forklift truck LT550 product parameters

Model UNIT LT550
Specifications Power Unit Diesel
Operator Type Driver/Seat
Transimission Box Type Electronic hydraulic transmission
Rated Capacity kg 5000
Load Center mm 600
Max.Lifting Height mm 3000
Tire Type Pneumatic Tire
Tire Number Front 4
Rear 2
Tire Size Front 8.25×15-14PR
Rear 8.25×15-14PR
Performance Lifting Speed Loaded mm/s 450
Unloaded 500
Lowering Speed Loaded mm/s 500
Unloaded 450
Travelling Speed Loaded km/h 25
Unloaded 30
Max.Gradeability (Loaded) % 33
Max.Drawbar Pull (Loaded) kg 5500
Mast Tilting Angle (Fwd/Bwd) deg 6/12
Free Lifting Height mm 145
Turning Radius mm 3250
Dimensions Overall Length (with fork) mm 4715
Overall Width mm 2000
Overhead Guard Height mm 2480
Fork Size (LxWxT) mm 1220x150x55
Mast Height (Fork lowered) mm 2500
Battery (Voltage/Capacity) V/Ah 2×12/90
Truck Weight kg 7900
Fuel Tank Capacity L 135
Engine Brand ISUZU CHAOCHAI
Model 6BG1 6102
Rated Power kw/rpm 82.3/2000 80.8/250
Rated torque n-m/rpm 418/1500 354/1650
Number Of Cylinder 6 6
Displacement 6.49 5.78

5 ton diesel forklift truck LT550 product details

“1. Wide view mast, with visibility increased to enhance the operator’s view and safety.
2. High strength safeguard/cabin by profiled steel insert all around keep the driver safer.

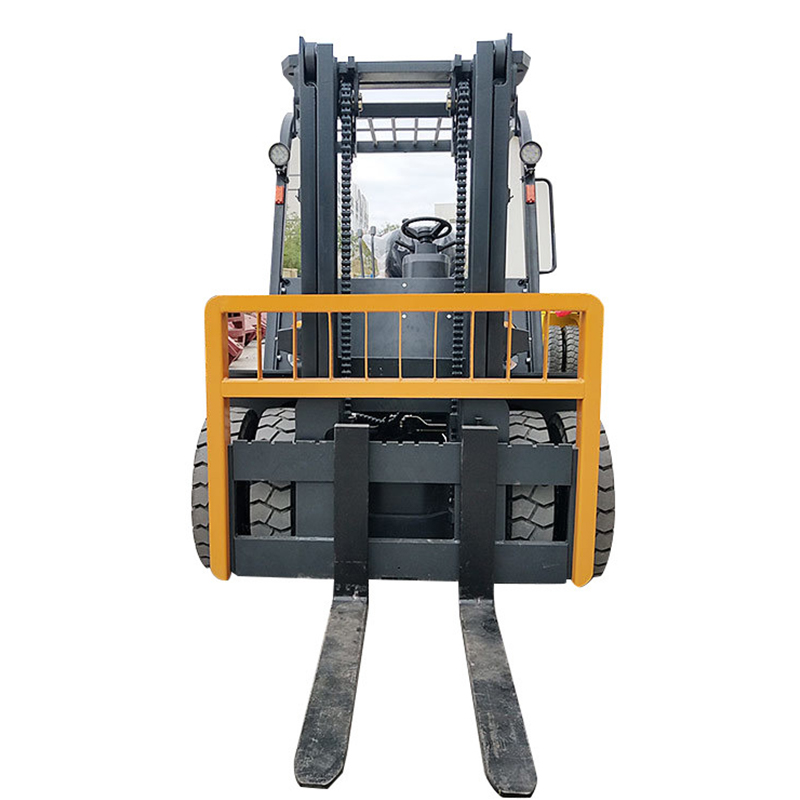

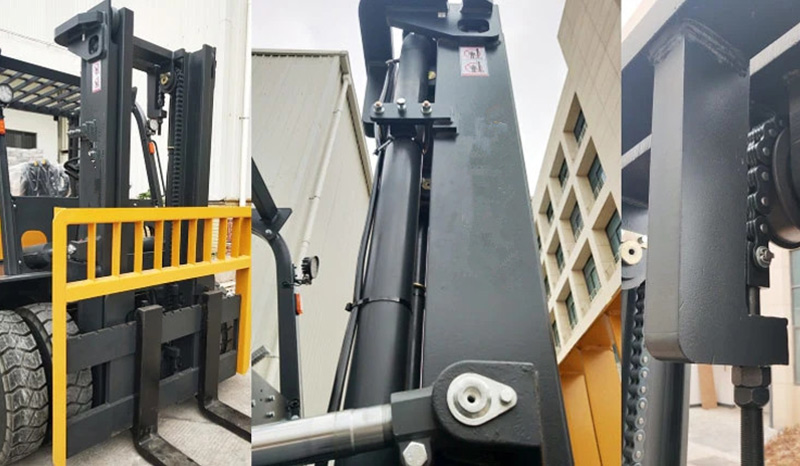

The mast rails are positioned

To create a wider forward view of the fork tips and the load. Large rollers roll more freely under load and side thrust rollers provide added lateral support especially in wide load applications. Both load rollers and thrust rollers are externally adjustable to maintain mast and carriage alignment and, reduce labor costs. Hydraulic hoses are positioned behind the rails for protection and enhance forward visibility through the mast.

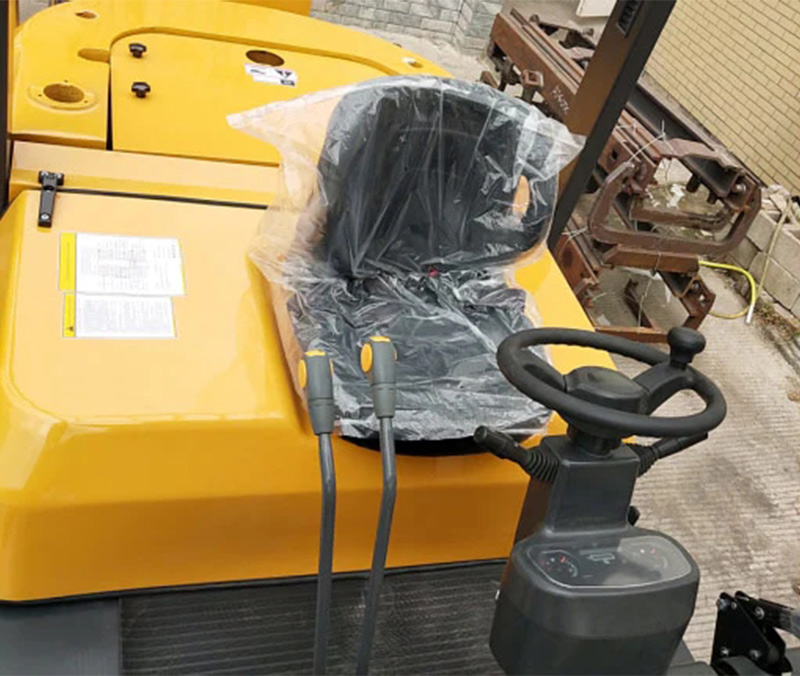

lt550 5ton diesel forklift truck 8Luxury driver’s operating seat, more space, more comfortable, reduce driver fatigue.

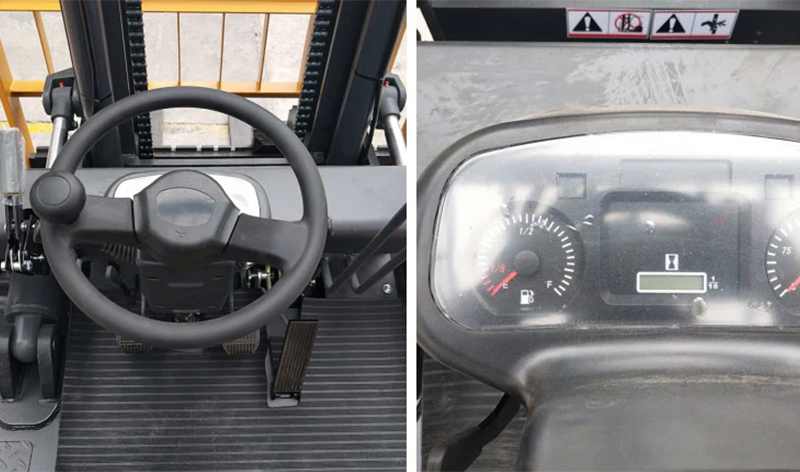

lt550 5ton diesel forklift truck 9The lighted instrument

The panel is conveniently positioned relative to the operator’s line of sight. The LCD monitors the machine’s vital components and electrical systems including travel speed and operating time. The monitor with an integrated diagnostic system provides easy service and lower maintenance costs. The advanced design wiring harness uses waterproof connectors and an enclosed multiunit fuse module for improved circuit security and reliability.

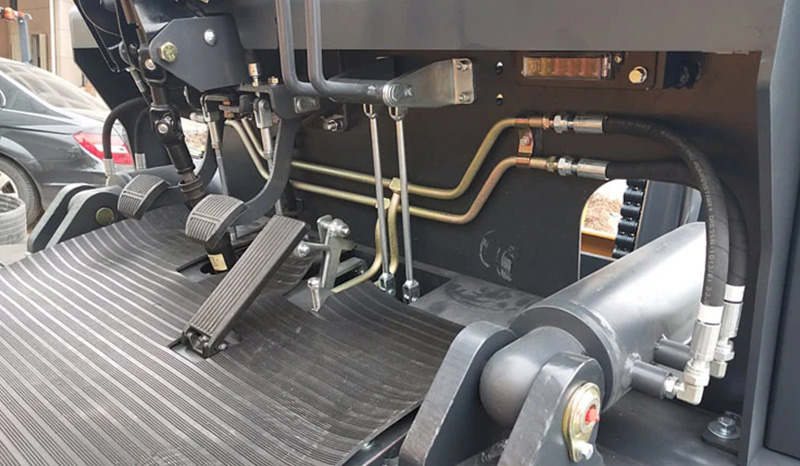

lt550 5ton diesel forklift truck 10Premium hydraulic hose

Fittings and steel tubes are vital to operator safety and load handling. All hydraulic cylinders use premium seals eliminating leaks and pressure loss. The main lift cylinder has a lowering speed valve to avoid rapid decent should a pressure loss occur in the lifting system. A fully adjustable steering wheel allows multiple operator sizes and added comfort. Power steering provides precise control and easy maneuverability in confined spaces reducing operator fatigue and stress.

lt550 5ton diesel forklift truck 11

Application and after-sales service

LT550T is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
