Forklifts are industrial transport vehicles, which refer to various wheeled transport vehicles for loading, unloading, stacking, and short-distance transportation of palletized goods. The International Organization for Standardization ISO / TC110 is called an industrial vehicle. Commonly used for storage of large items, usually powered by fuel engines or batteries.
Inquiry1, Every detail is well-designed to guarantee comfortability and safety. It is ergonomically designed. The combined effectiveness of control, monitor, aeration, and chair improve the working efficiency for the operator. All direction has excellent vision.
2, The right mast can be chosen from our variety of series. 2-stage (with or without free lift) and 3-stages (with free lift) are available.
3, The design of an easy-maintenance point, makes the inspection and service more convenient and easy.
4, Centralized control stick is with excellent inching performance, easy to realize millimeter-scale accurate control.
5, Through advanced FEA, kinematics, and dynamics Simulation analysis and calculation, with accurate data support design base, Guarantee the rationality and excellent performance for mast and chassis structure. The overall unit is high reliability and stable.
6, The overall unit adopts a lightweight design, with excellent fuel consumption savings.
| Configuration | Model | Unit | CPCD320 | |
| Vehicle configuration | LT5320 | |||
| Performance | Rated load | 32000 | ||
| Load center | 1250 | |||
| Mast tilt angle (front/rear) | º | 6/12 | ||
| Overall dimensions | Length | mm | 9590 | |
| Width | mm | 3200 | ||
| Height | mm | 3950 | ||
| Mast lifting height | mm | 3500 | ||
| Fork size (L*W*H) | mm | 2440X320X110 | ||
| Min. turning radius | mm | 7260 | ||
| Max. travel speed (with load) | Km/h | 24 | ||
| Lifting speed (with load) | mm/s | 260 | ||
| Gradeability (with load) | % | 20 | ||
| Weight | Kg | 40000 | ||
| Tyre | Front | 4X14.00-24-32PR | ||
| Rear | 2X14.00-24-32PR | |||
| Wheel tread | Front | mm | 2420 | |
| Rear | mm | 2390 | ||
| Wheelbase | mm | 4800 | ||
| Min. ground clearance | mm | 350 | ||
| DF Cummins Engine | Model | 6CTA8.3-C260 | ||
| Rated power/rotate speed | KW/r.pm | 194/2200 | ||
| Displacement | 8.3L | |||

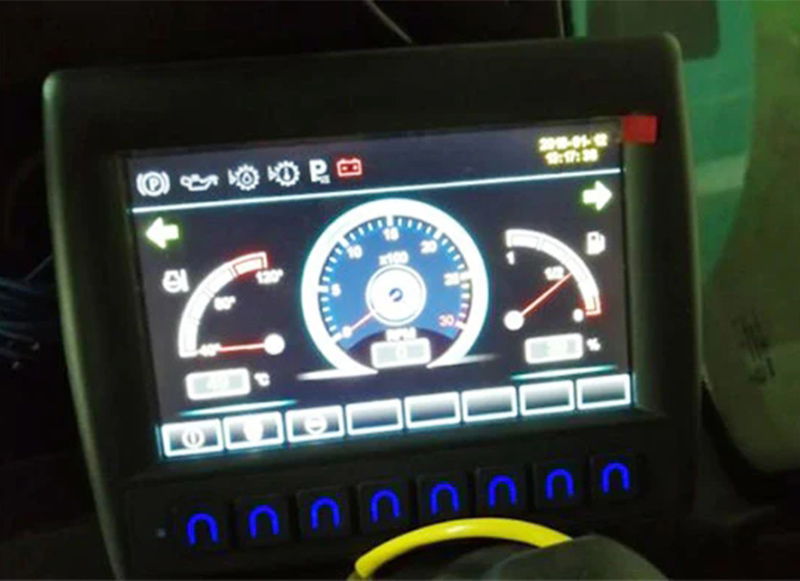

New style Digital LCD instrument.

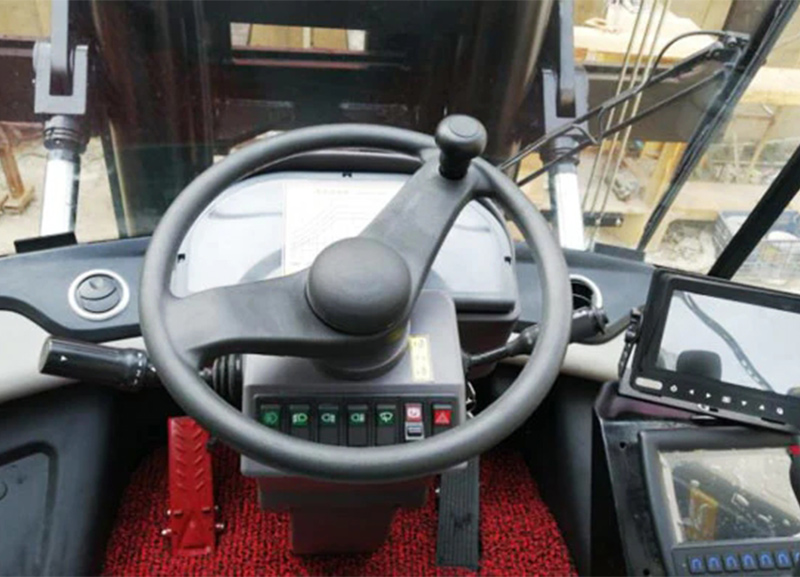

New style cabin. Better sight, doors on both sides, easier access, better air outlet position of the air-conditioner.

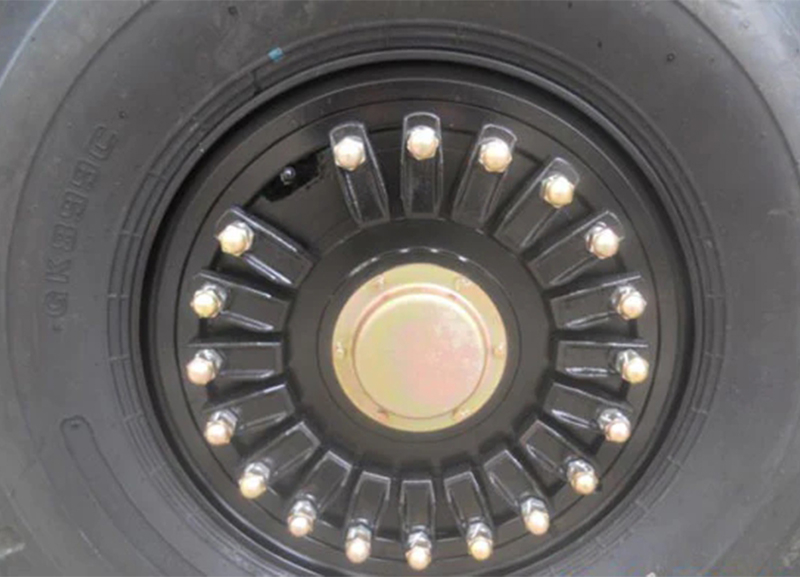

Specially designed heavy-duty rims.

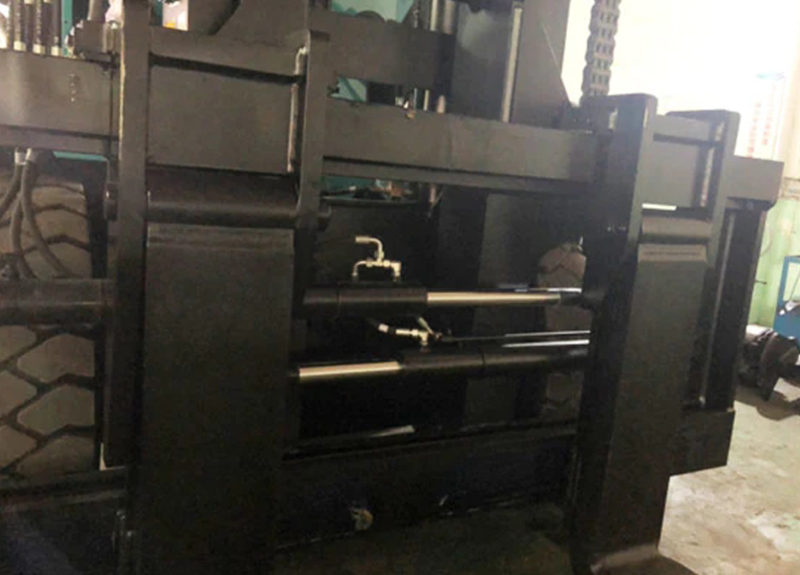

Slide pad type fork shaft, more reliable

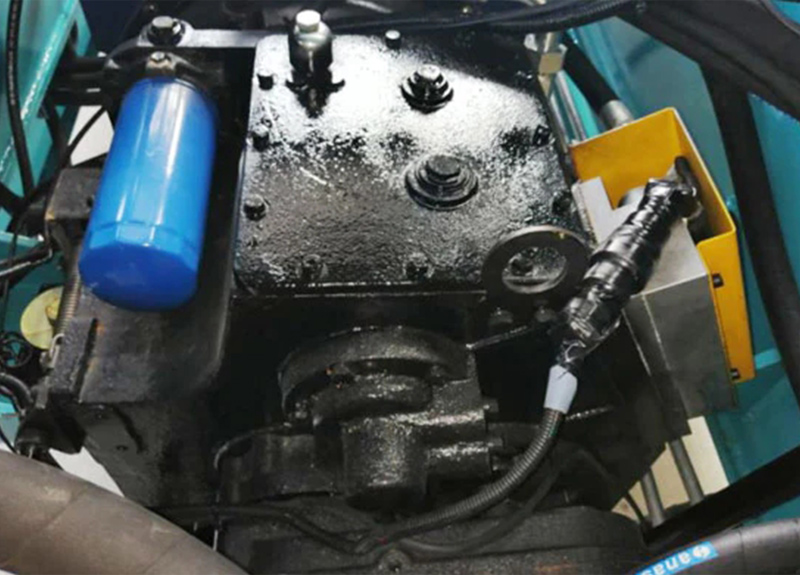

New Transmission. Electro-controlled gearbox with 3 forward/3reverse auto-shift, high efficient and smooth gear shifting.

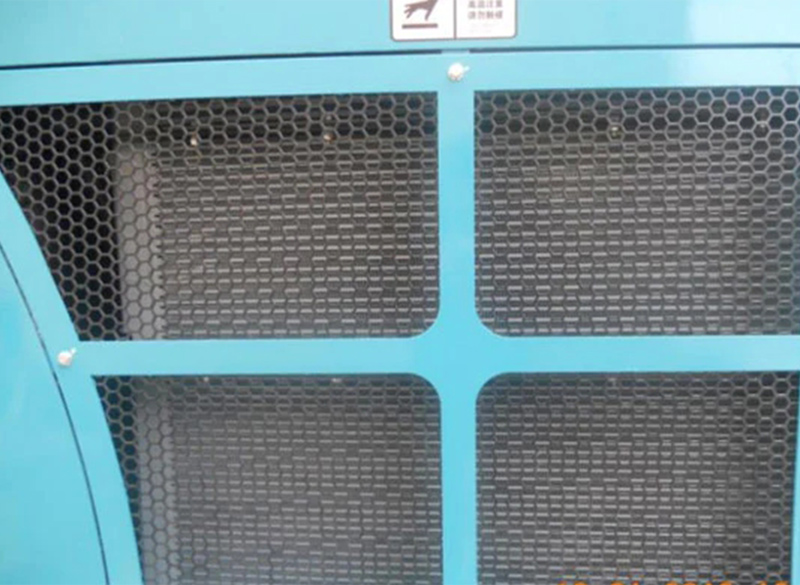

Hydraulic drive. Radiator with better cooling performance and low noise, easy to access and daily check.

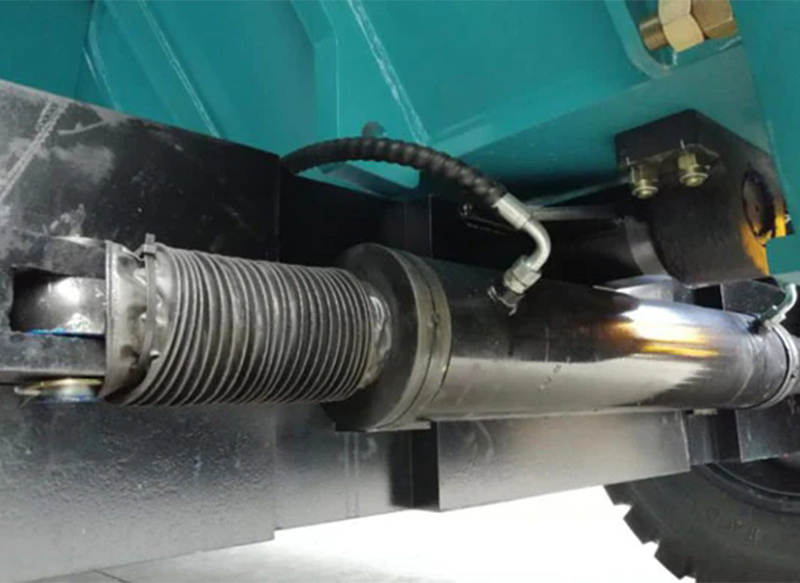

New style steering axle. One-piece axle body, new rim installation structure, stronger & more reliable.

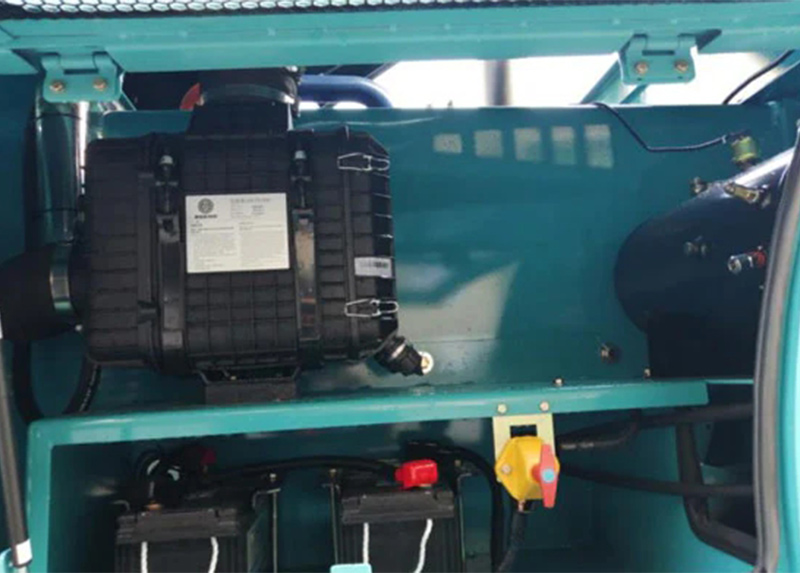

Move the air filter out of the engine house, easier access.
Application and after-sales serviceLT5320T is an industrial handling vehicle for loading, unloading, stacking, and short-distance transportation of goods. Widely used in mechanized loading, unloading, stacking, and short-distance transportation of stations, ports, airports, factories, warehouses, and other departments.
