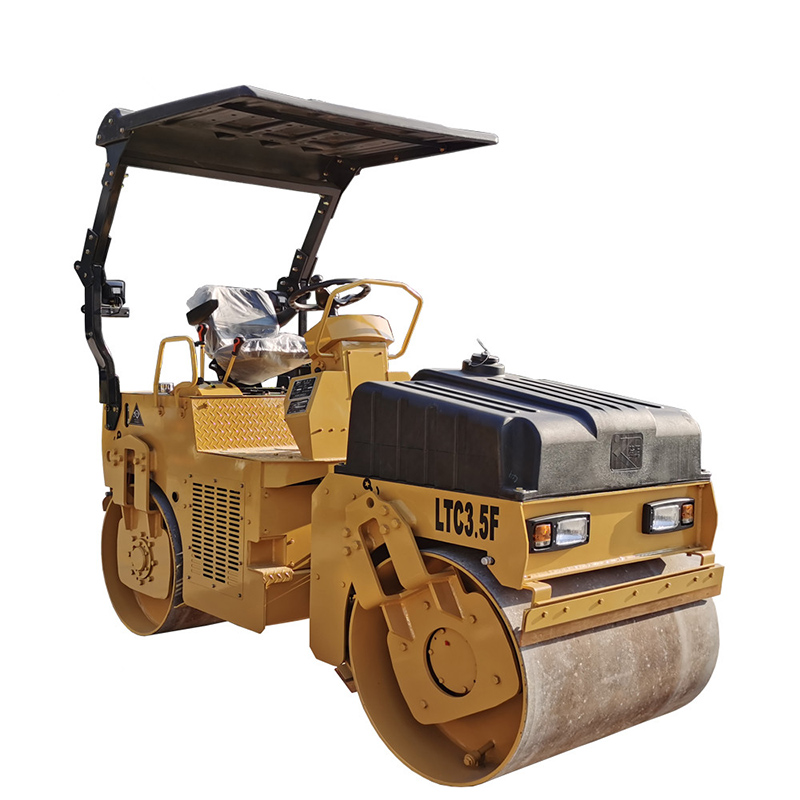

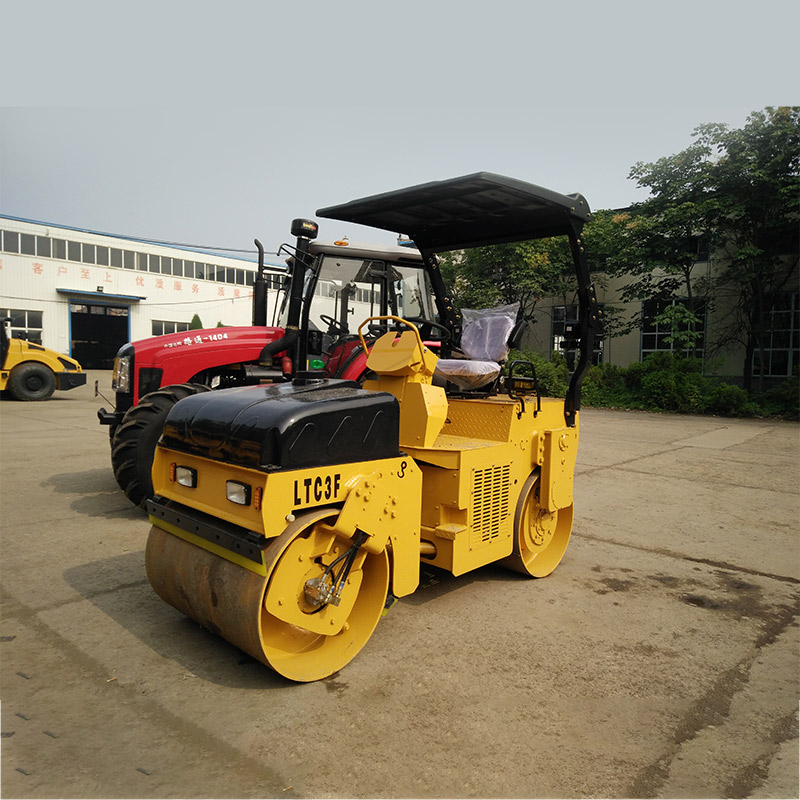

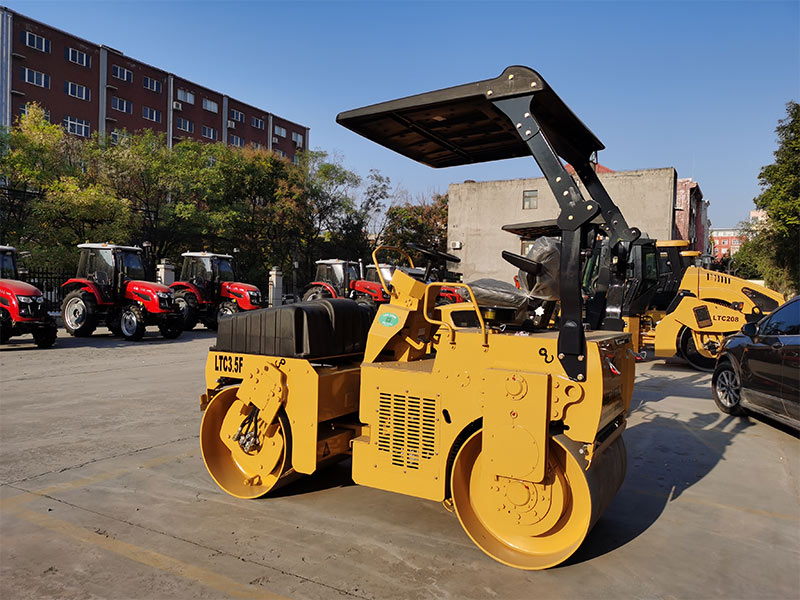

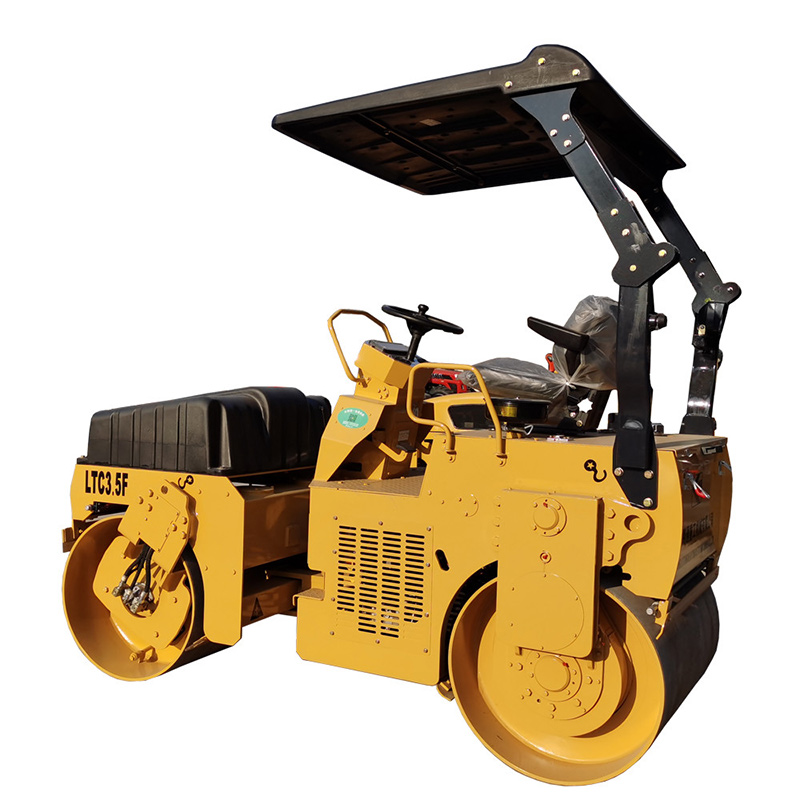

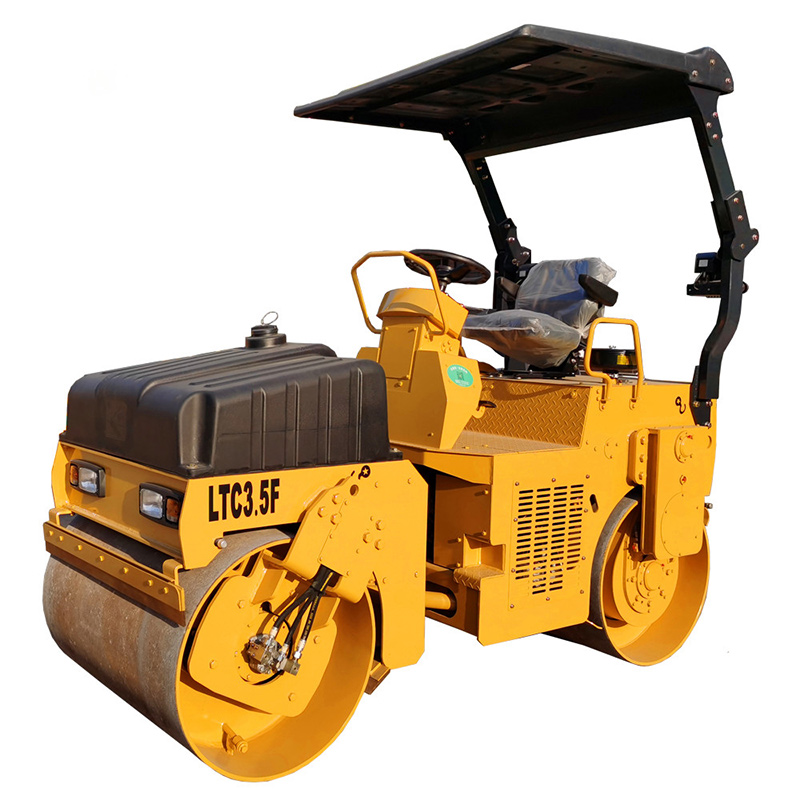

3-4 Ton Mechanical Drive Roller

LTC3F, LTC3.4F, LTC4F series mechanical drive roller adopts fork foot structure, mechanical drive, hydraulic articulated steering, maneuverable and flexible, safe and reliable, and can be used for compaction operations in narrow fields and sidewalk operations. The engine adopts the domestic major national brand national three diesel engine, which is convenient to use and maintain, energy-saving, and environmentally friendly. The LLDPE large-capacity sprinkler tank and ceiling made by advanced rotational molding process have high strength, strong corrosion resistance, and a beautiful appearance.


3-4 ton mechanical drive vibration roller products features

Mechanical movement, hydraulic vibration, hydraulic rotation, with reliable performance and optimum function/price ratio.
2. Both front and rear wheels have a scraping and water spray unit.
3. Adopt ZN390B series diesel engine, very convenient for use and maintenance.
4. Compact integral structure, small volume, capable of being used for compaction on narrow site.

3 4 ton mechanical drive roller 63-4 ton mechanical drive vibration roller products parameters

Model   LTC3F LTC3.5F LTC4F
Operating mass kg 3000 3500 4000
Static linear (front and rear) N/cm 120/153 120/153 155/211
Vibration frequency HZ 50 50 50
Centrifugal force KN 32 32 32
Travel speed Km/h 7.8 7.8 7.8
Grade ability % 20 20 20
Turning radius mm 4500 4500 4500
Overall dimension mm 2830*1290*2650 2830*1290*2650 2830*1290*2650
Drum width mm 1090 1090 1090
Wheelbase mm 2000 2000 2000
Diesel power kw 26.5 26.5 26.5
Diesel model   ZN390B ZN390B ZN390B
Water tank capacity L 200 200 200

3-4 ton mechanical drive vibration roller application and after-sales service

The series of mechanically driven vibratory rollers are suitable for municipal roads and highway maintenance, as well as for compaction operations on narrow roads such as trench foundations, building construction, pipeline backfilling, and sports fields.

3 4 ton mechanical drive roller 73 4 ton mechanical drive roller 83 4 ton mechanical drive roller 9


Please feel free to leave your needs here, a competitive quotation will be provided according to your requirement.
