Forklift loaders are mining stone operation equipment for earthmoving machinery and are also widely used in the operation of terminal block logistics.
Inquiry| MODEL | UNIT | LT16T/LT18T | |
| Rocker arm type | – | Single rocking arm | |
| Operation weight | kg | 20000/21000 | |
| Rated load | tons | 10 | |
| Engine model | WD10G220E23 | ||
| Rated power | kw | 162 | |
| Rated output | r/min | 2000 | |
| Maximum torque | N.m | 745.3 | |
| Maximum gradeability | ° | 20 | |
| Max. Turning angle | ° | 35±1 | |
| Lifting, dumping, and lowering | s | 12s | |
| Max. dumping height | mm | 3300 | |
| Wheelbase | mm | 3230 | |
| Track base | mm | 2300 | |
| Overall Length | mm | 8000 | |
| Overall Width | mm | 2870 | |
| Overall Height | mm | 3220 | |
| Traveling speeds | Forward 1 | km/h | 0-11.5 |
| Forward 2 | km/h | 0-36 | |
| Forward 3 | km/h | – | |
| Forward 4 | km/h | – | |
| Reverse 1 | km/h | 0-16 | |
| Reverse 2 | km/h | – | |
| Fork dimension | mm | 1500x200x100 | |
| Tires specification | – | 23.5-25(24 levels) | |
Details-1

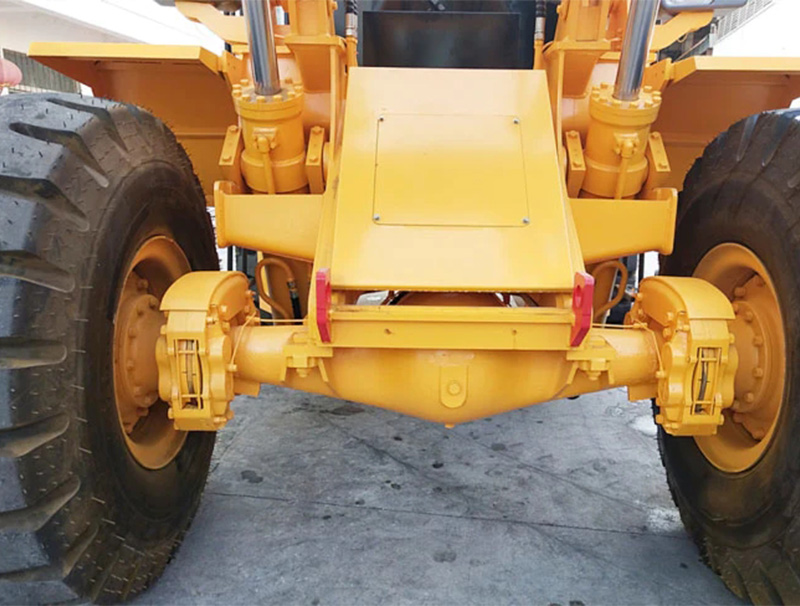

Brake calipers add protection.
Details-2

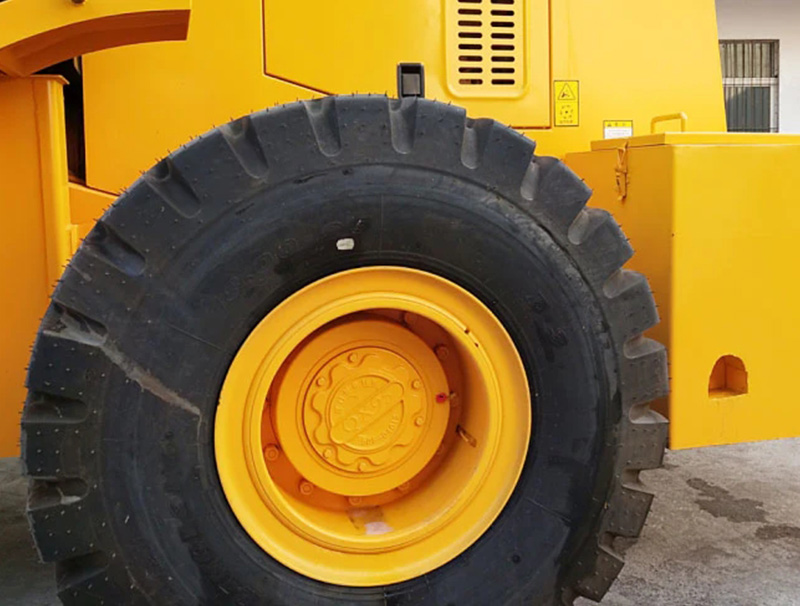

JOOMACH special reinforced rims and quarry-specific tires have stronger carrying capacity, higher reliability, and longer life.
Details-3

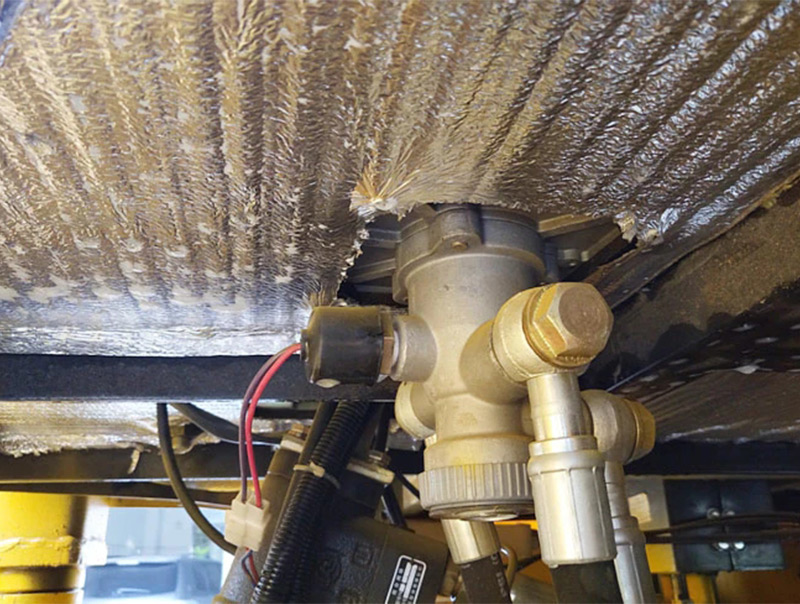

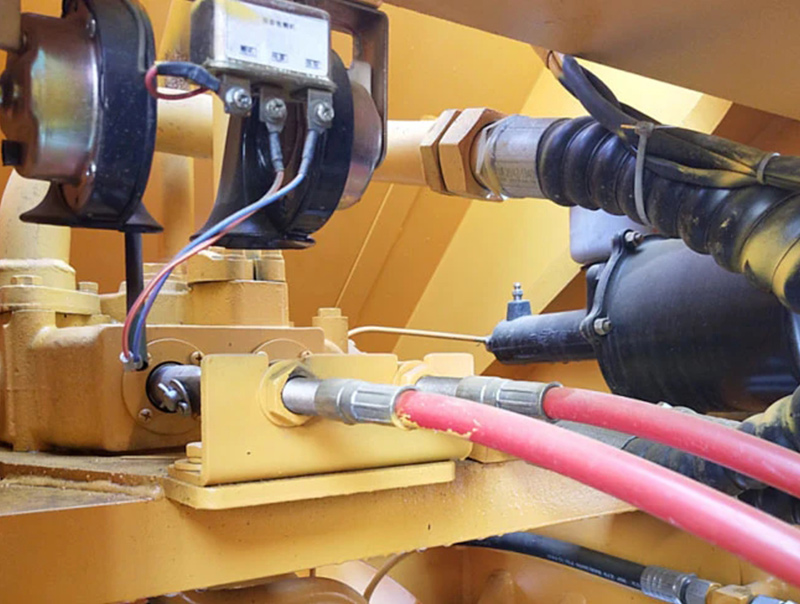

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details-4
Luxury CAB, noise-isolation, and vibration absorber meet all kinds of operation, which can be dismantled for Large space.
Application and after-sales serviceLT10T is mining stone operation equipment for earthmoving machinery and is also widely used in the operation of terminal block logistics.
