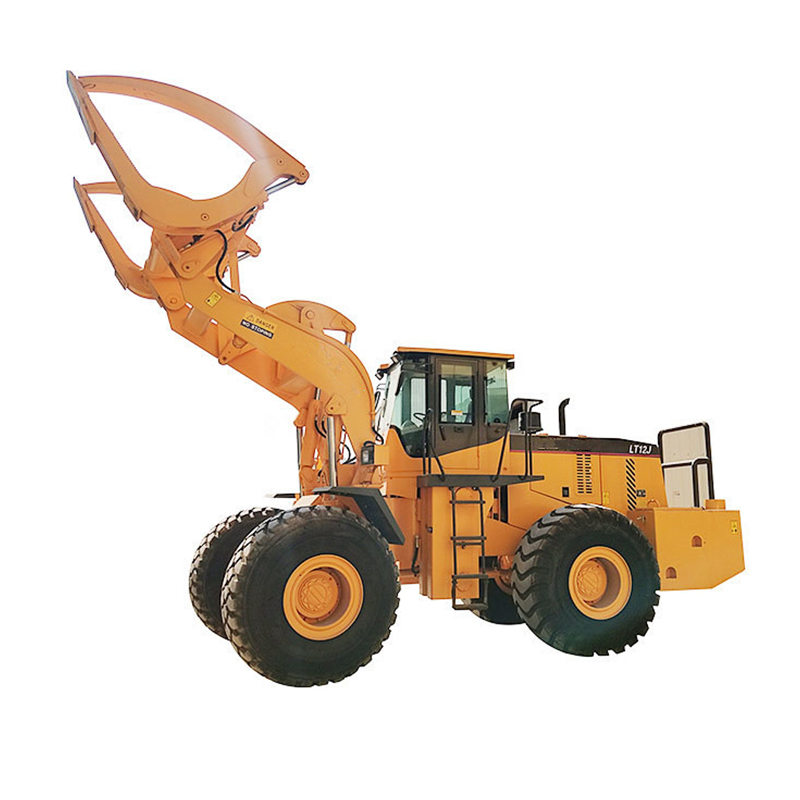

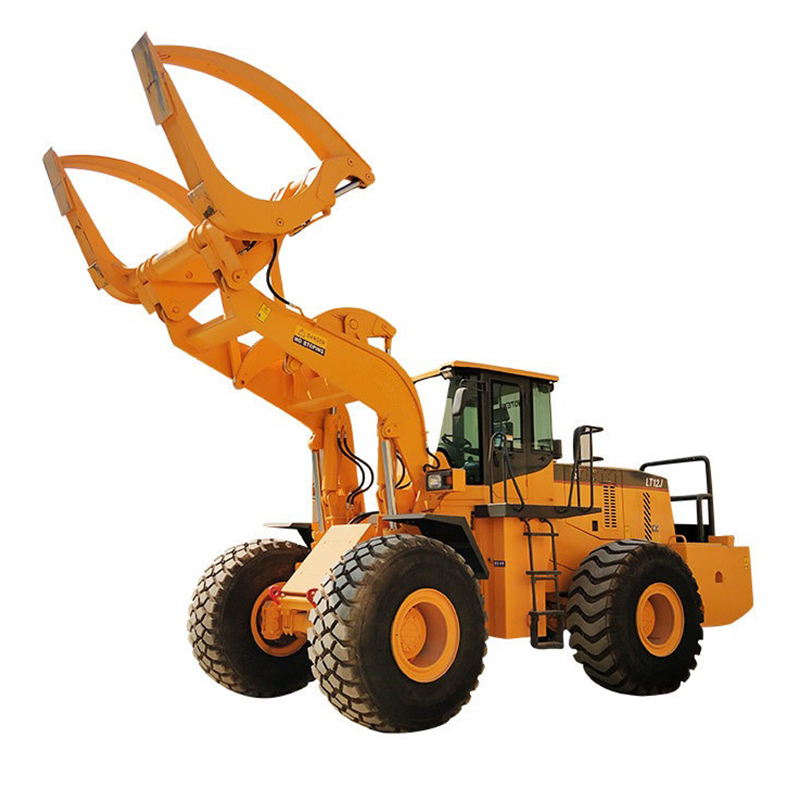

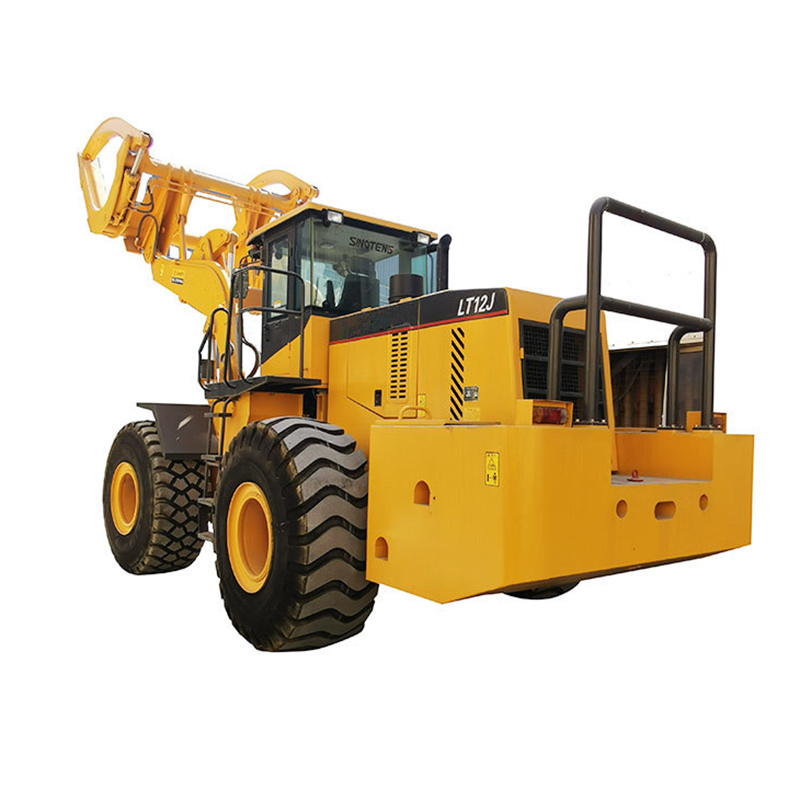

Wheel log loader (referred to as the log loader) is an important piece of equipment in the construction of engineering machinery and is widely used in the loading and unloading of timber in ports, lumber yards, and wood processing plants. 12 Ton Log Wheel Loader Machine With Grapple LT12J Single Tilt Lever, and its rated load is 12 ton, rated power is 199kw.
Inquiry1.Frame:
Same design and dimensions with Japanese Komatsu 470 loader, thicken hinge plate makes the loader more durable and efficient. The thickness of the lifting arm is 60mm, the thickness of the hinge pin is 80mm much stronger than normal loaders.

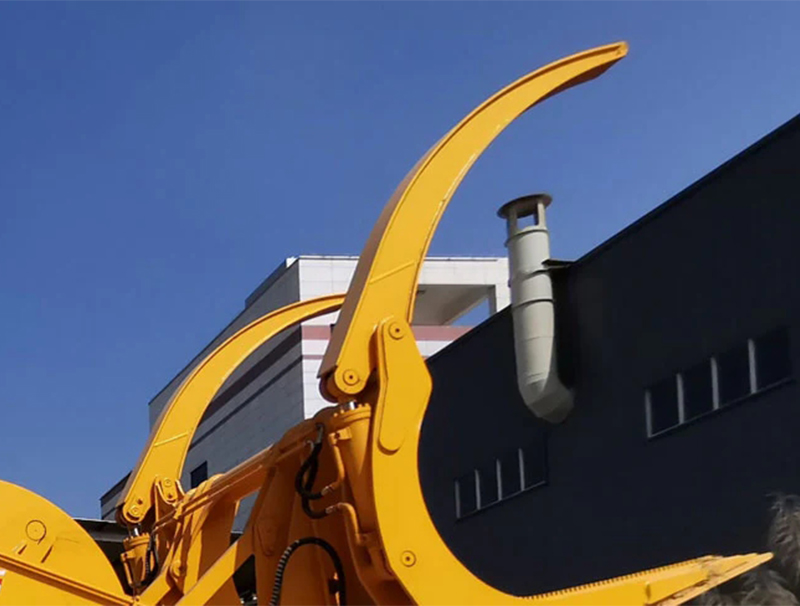

Quenched integral Anti-wear grapple is made in Japan. Specially designed for the heavy log, effectively prevent any break, prolongs the grapple’s life to a great extent.
Chinese Beilian advance gearbox with Caterpillar technique transmission. The powerful electronic control countershaft transmission is easy to maintain, superior in efficiency delivery, and overload adaption.
2.Brake systems:

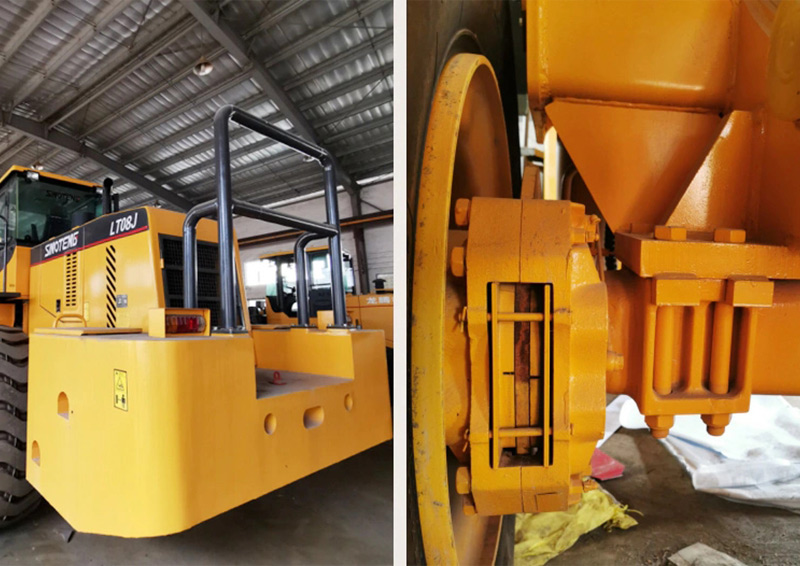

Four-wheel double-line caliper disc braking system with a gas container in the back as well as our exclusive auto cooling technology on brake system double assures reliability and safety. The rearview camera and ROPS/FOPS cab are optional.
The heavier counterweight, long wheelbase, heighten ground clearance ensure that the machine could adapt to the various tough condition.
3.Hydraulic systems:
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.
Independent transmission and hydraulic cooling improve the hydraulic system stability.
| Model | LT12J Single Rocker arm | LT12J Dual Rocker arm |
| Operating weight | 26,200 kgs | 25,500 kgs |
| Engine model | WEICHAI WD10G270E201 | WEICHAI WD10G270E201 |
| Rated engine power | 199KW | 199KW |
| Rated rotate speed | 2200r/nin | 2200r/nin |
| Max.torque | 1100KN | 1100KN |
| Max. Traction force | ≥205KN | ≥205KN |
| Breakout force | ≥230KN | ≥230KN |
| Max. lifting height | 3,900 mm | 3,900 mm |
| Rated load | 12,000 kgs | 12,000 kgs |
| Max. load | 15,000 kgs | 15,000 kgs |
| NO.of shifts | F:4, R:2 | F:4, R:2 |
| Transmission | Countershaft | Countershaft |
| Torque converter | Model: YJ375X3 Ratio: 3.166 | Model: YJ375X3 Ratio: 3.166 |
| Driving speed | ||
| Forward/Reverse | 0-8.5km/h | 0-8.5km/h |
| Forward/ReverseⅡ | 0-16.5km/h | 0-16.5km/h |
| ForwardⅢ | 0-25km/h | 0-25km/h |
| Forward IV | 0-42km/h | 0-42km/h |
| Grade ability | 28° | 28° |
| Turning angle | 35°±1° | 35°±1° |
| Overall length | 8600mm | 8500mm |
| Overall width | 3130mm | 3130mm |
| Overall height | 3550mm | 3650mm |
| Wheel base | 3550mm | 3550mm |
| Track base | 2510mm | 2510mm |
| Minimum ground clearance | 520mm | 680 mm |
| Raise time | ≤8.5s | ≤8.5s |
| Cycling time | 14s | 14s |
| Fuel Tank | 330L | 300L |
| Hydraulic tank | 300L | 280L |
| Tire type | 26.5-25 Front rail tire, Rear Nylon tire | 26.5-25 Front rail tire, Rear Nylon tire |
Details 1

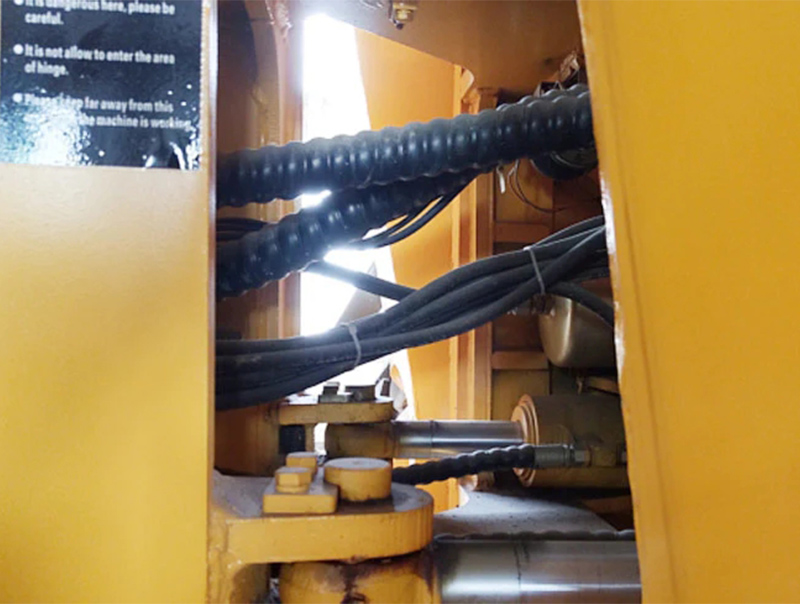

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 2

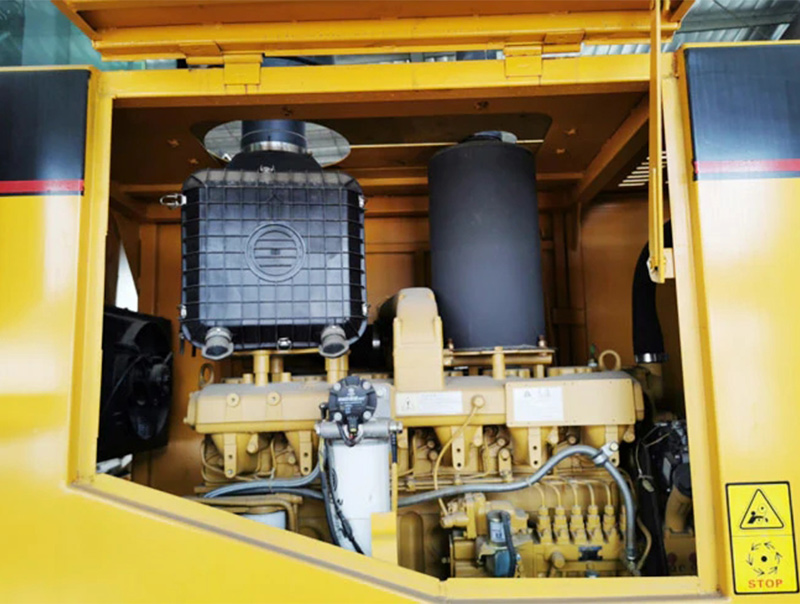

Ide-opening hood Makes servicing and maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space.
Details 3

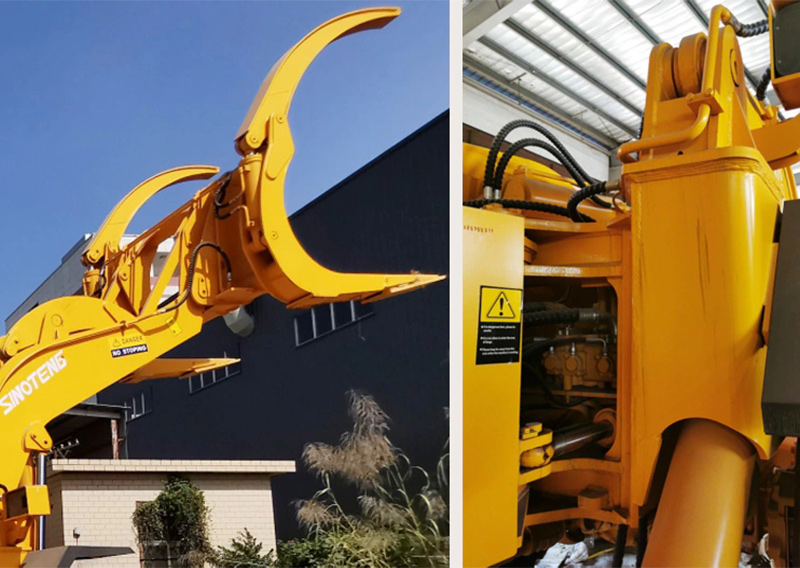

The fork can be 90 degrees vertical, which makes it easy to load and unload the wood log from the truck.
Details 4

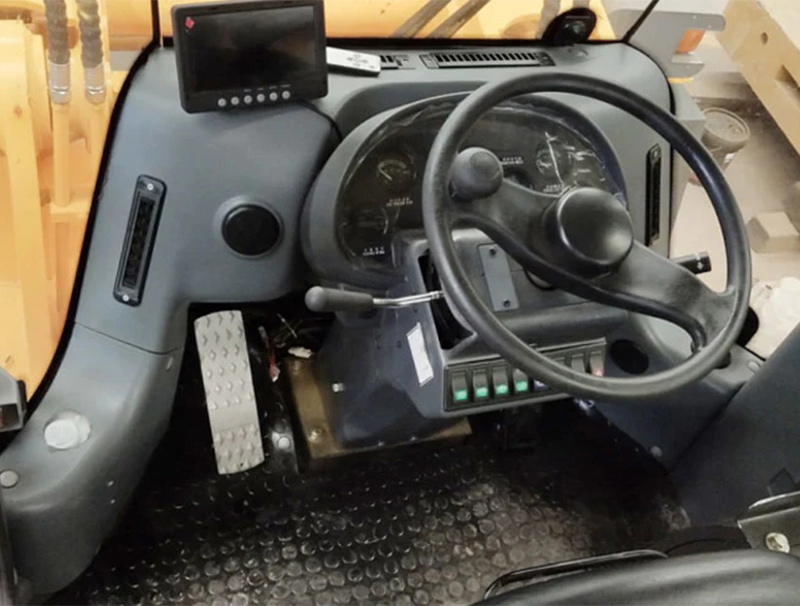

Luxury driver’s cabin, more space, wider visual field.
Application and after-sales serviceLT12J is an important piece of equipment in the construction of engineering machinery, which is widely distributed in ports, lumberyards, wood processing plants, etc.
