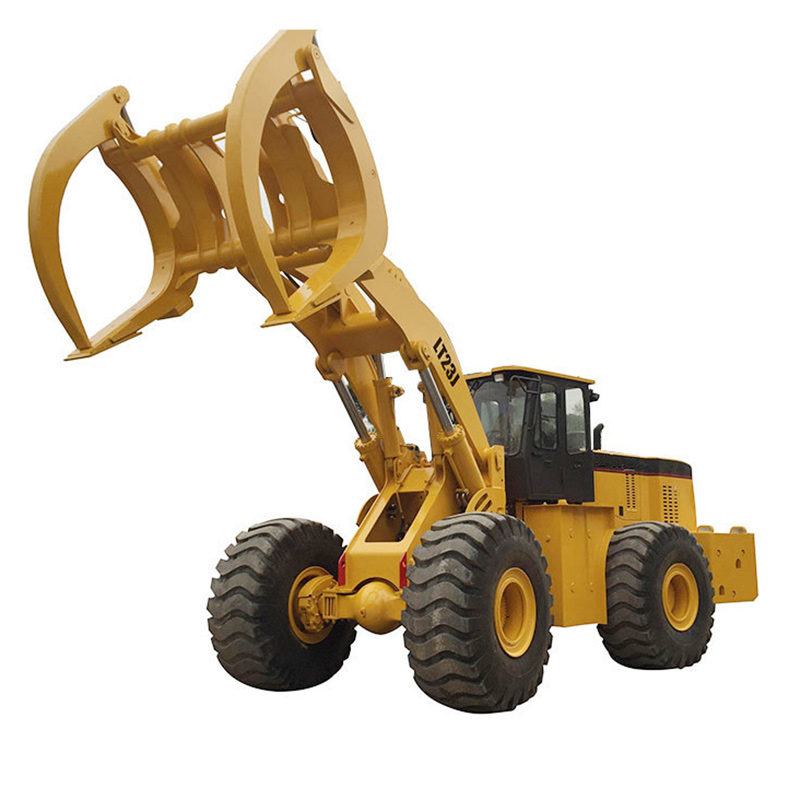

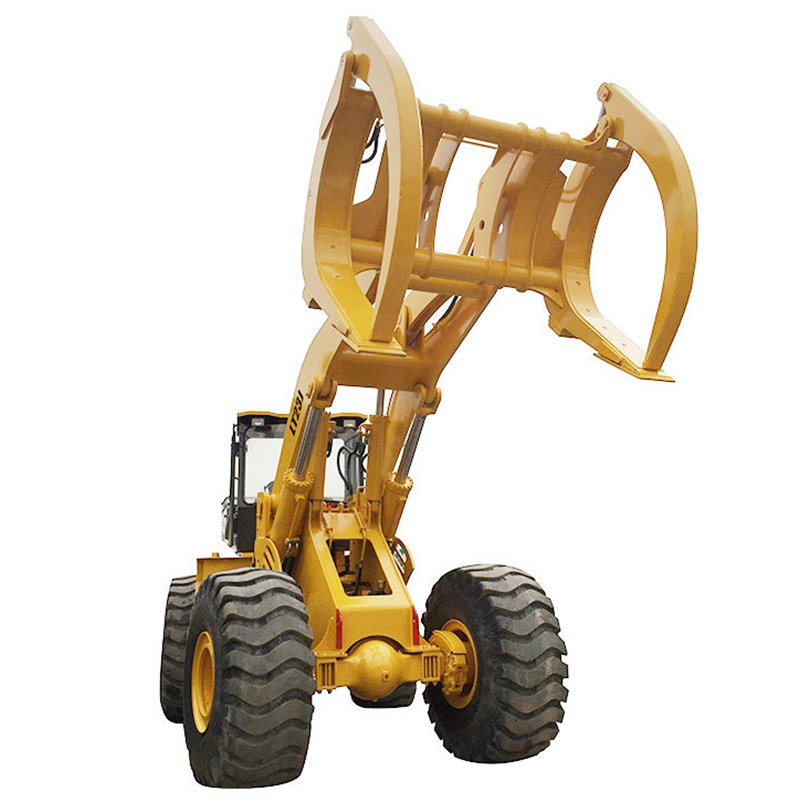

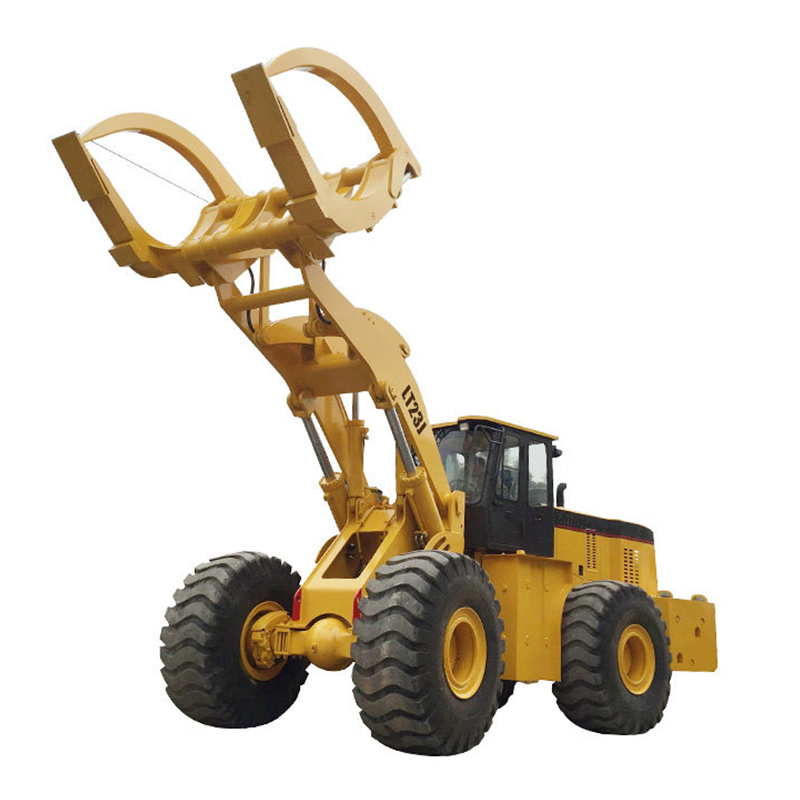

Wheel log loader (referred to as the log loader) is an important piece of equipment in the construction of engineering machinery and is widely used in the loading and unloading of timber in ports, lumber yards, and wood processing plants. The Heavy Duty 23 Ton Forestry Wheel Log Loader LT23J. Single Tilt Lever. Its rated load is 23ton, rated power is 247kw, and operating weight is 35ton.
Inquiry1.Durable structure:
The heavier counterweight, long wheelbase, heighten ground clearance ensure that the machine could adapt to various tough conditions.
2.Anti-wear gripper:
Quenched integral Anti-wear grapple is made in Japan specially designed for the heavy log, effectively prevent any break, prolongs the grapple’s life to a great extent.
3.Efficiency transmission:
Chinese Beilian advance gearbox with Caterpillar technique transmission. The powerful electronic control countershaft transmission is easy to maintain, superior in efficiency delivery, and overload adaption.
4.Safety and brake systems:
Four-wheel double-line caliper disc braking system with a gas container in the back as well as our exclusive auto cooling technology on brake system double assures reliability and safety. The rearview camera and ROPS/FOPS cab are optional.
5.Efficiency transmission:
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively.
Independent transmission and hydraulic cooling improve the hydraulic system stability.
| Model | LT23J | Forward/ReverseⅠ | 0-6.5km/h |
| Operating weight | 35,000kg | Forward/ReverseⅡ | 0-12.3km/h |
| Engine model | WD12G336E211 | ForwardⅢ | 0-24km/h |
| Rated engine power | 247kw | Forward IV | 0-41km/h |
| Rated rotate speed | 2200r/nin | Grade ability | ≥25° |
| Max.torque | 1350 N.m | Turning angle | 35°±1° |
| Max. Traction force | ≥192KN | Overall length | 10100mm |
| Breakout force | ≥331KN | Overall width | 3430mm |
| Max. lifting height | 4200mm | Overall height | 3980mm |
| Rated load | 23,000 kgs | Wheel base | 4200mm |
| Max. load | 25,000 kgs | Track base | 2830mm |
| NO.of shifts | Forward 4 For Reverse 2 | Minimum ground clearance | 520mm |
| Transmission | Countershaft | Raise time | ≤9s |
| Torque converter | Model: YJ405X3 Ratio: 3.166 | Cycling time | 16s |
| Fuel Tank | 350L | ||
| Hydraulic tank | 320L | ||
| Tire type | 29.5-25 |
Details 1

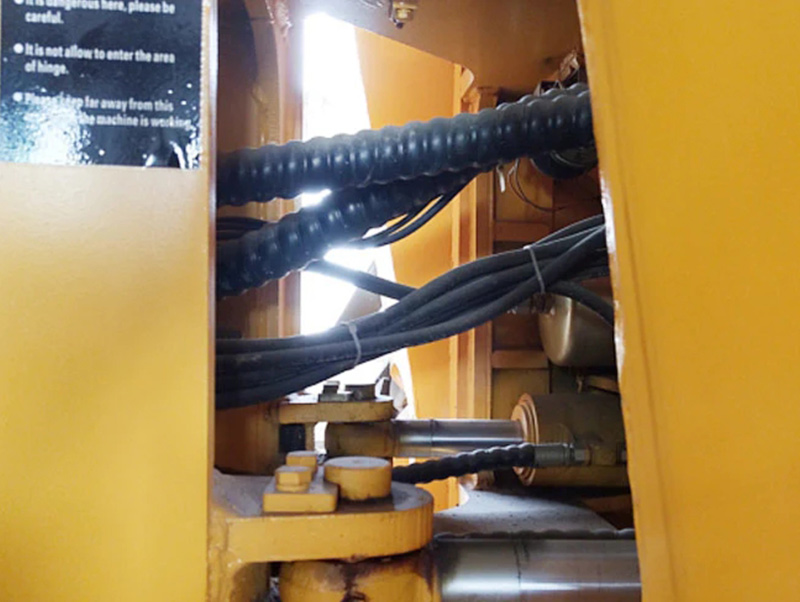

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.
Details 2

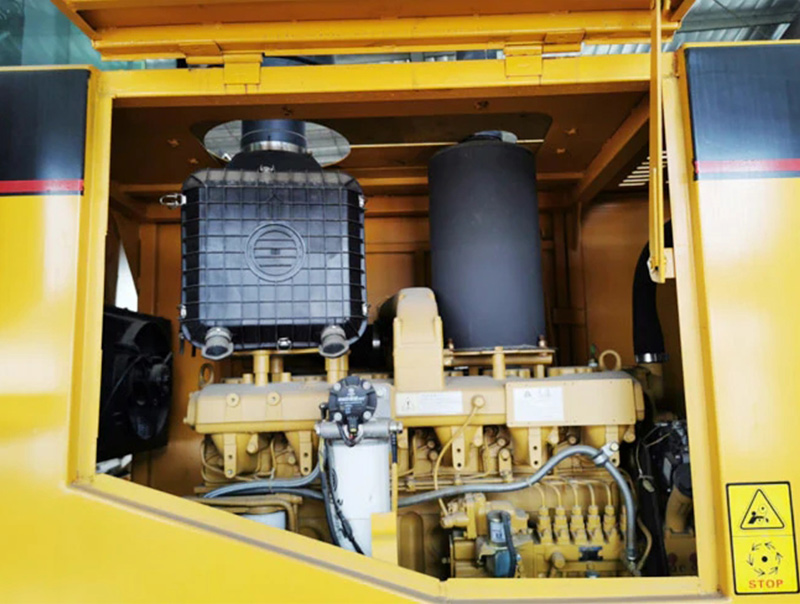

Ide-opening hood Makes servicing and maintenance of engine easier. The large distance between up and down articulated boards creates large maintenance space.
Details 3

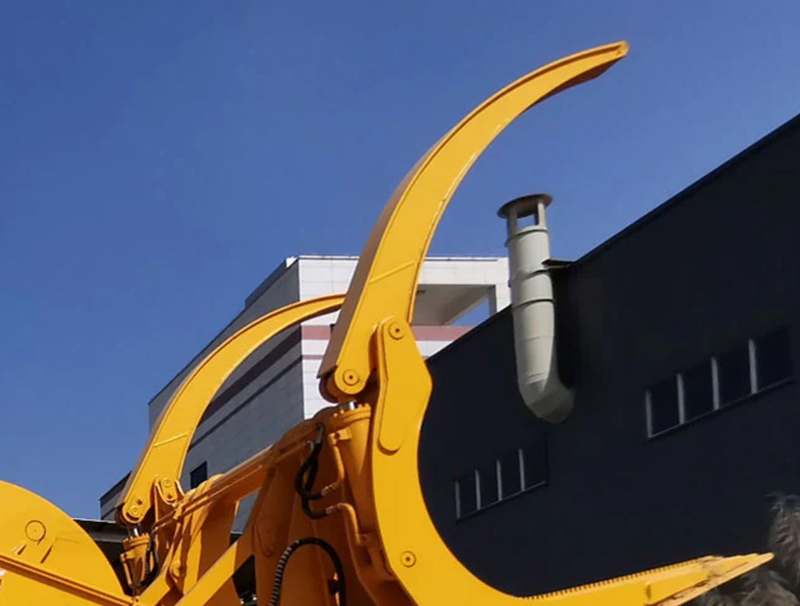

The fork can be 90 degrees vertical, which makes it easy to load and unload the wood log from the truck.
Details 4

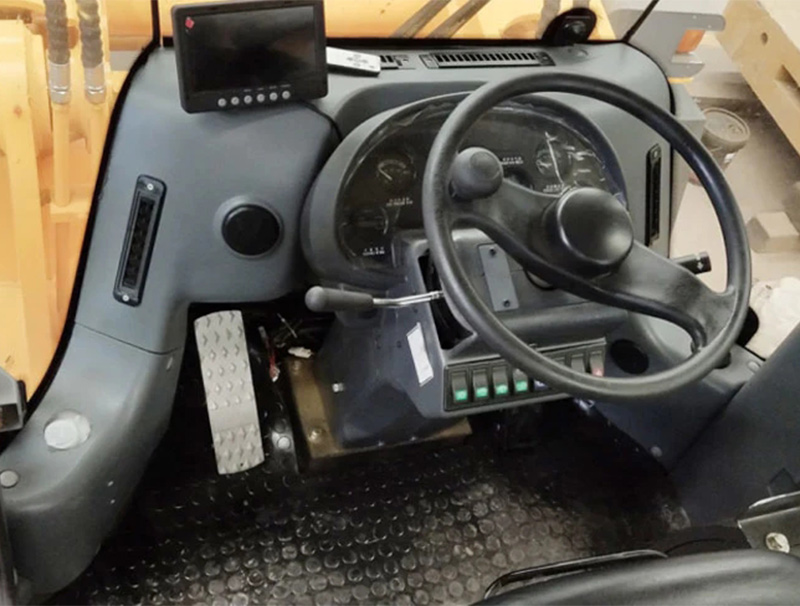

Luxury driver’s cabin, more space, wider visual field.
Application and after-sales serviceLT23J is an important piece of equipment in the construction of engineering machinery, which is widely distributed in ports, lumberyards, wood processing plants, etc.
