Bulldozer is an earthmoving engineering machine capable of excavating, transporting, and abandoning rock and soil. For example, it is used for the construction of dumping grounds, leveling of automotive dumping grounds, accumulation of scattered ore rocks, leveling work flat plates, and construction sites. It is used not only for auxiliary work but also for main mining work. For example, stripping and mining of sand deposits, traction and boosting of scrapers and plows, and other earthmoving machinery to reduce the stripping step height when there is no transportation mining method.
Inquiry1. A diesel engine with a turbocharger and fuel-feeding system of PT pump is adopted as the power supplier for the machine, with its characteristics of low fuel consumption, high power performance, and large torque reserve.
2. The diesel engine matches very well with the hydraulic torque converter and the transmission system, making a wide rotational speed range for machine traveling in high efficiency. Output power can be achieved perfectly, with the control of shifting on the transmission gearbox.
3. A hydraulic drive system is adopted for the working device, with its characteristics of simple structure, flexibility, and reliability.
4. The hydraulic-assisting mode is adopted in the control system, making the machine can be operated easily.
5. A mode of hanging balance beam is adopted in the traveling system, making the machine works well in rugged areas.
6. Centralized pressure-testing technology is applied for inspecting and debugging failure easily; the high generalization of wearing parts makes it easier to maintain the overall machine.
7. The sound-proofing, heat-proofing, and vibration-absorbing cab provide efficient operation space and excellent operation vision for the driver. The cab is also equipped with a comfortable adjustable driver’s seat and air conditioner, together with an optional heater.
8. Equipped with the straight-tilting shovel as standard as well as U-shovel and angle shovel as options, all provided with the well durable blade.
9. Optionally equipped with the ripper, (3-tooth or 1-tooth available), u-shovel, angle blade, air conditioning, heater, rear ripper, ROPS frame, forest cab, etc.”
| Description | Unit | LT4161L | ||
| Engine | Model | type | Weichai WD10G178E25 | |
| Rated speed | rpm | 1850 | ||
| Rated power | kW | 131 | ||
| Travel | Forward | I | km/h | 0～3.8 |
| Speed | II | km/h | 0～6.6 | |
| III | km/h | 0～10.6 | ||
| Reverse | I | km/h | 0～4.9 | |
| II | km/h | 0～8.5 | ||
| III | km/h | 0～13.6 | ||
| Work | Blade height | mm | 1168 | |
| Equipment | Blade width | mm | 3416 | |
| Max. depth | mm | 545 | ||
| Max. lift | mm | 1095 | ||
| Max. tilt adjustment | mm | ≥427 | ||
| Pitch adjustment | ° | 55 | ||
| Specification | Min. ground clearance | mm | 400 | |
| Ground pressure | Mpa | 0.065 | ||
| Min. turning radius | mm | 3100 | ||
| Grade ability | ° | 30 | ||
| Blade Capacity | m³ | 4.5 | ||
| Productivity | m³/h | 270 | ||
| Ripper | Teeth | 1 tooth | ||
| (Optional) | Max. digging depth | mm | 572 | |
| Max. lift | mm | 702 | ||
| Teeth Weight | kg | 1709 | ||
| Basic Operating Weight | kg | 17100 | ||
| Basic Dimension（LxWxH） | mm | 5188x3416x3060 | ||
| With ripper and ROPS Dimension（LxWxH） | mm | 6215x3416x3060 | ||

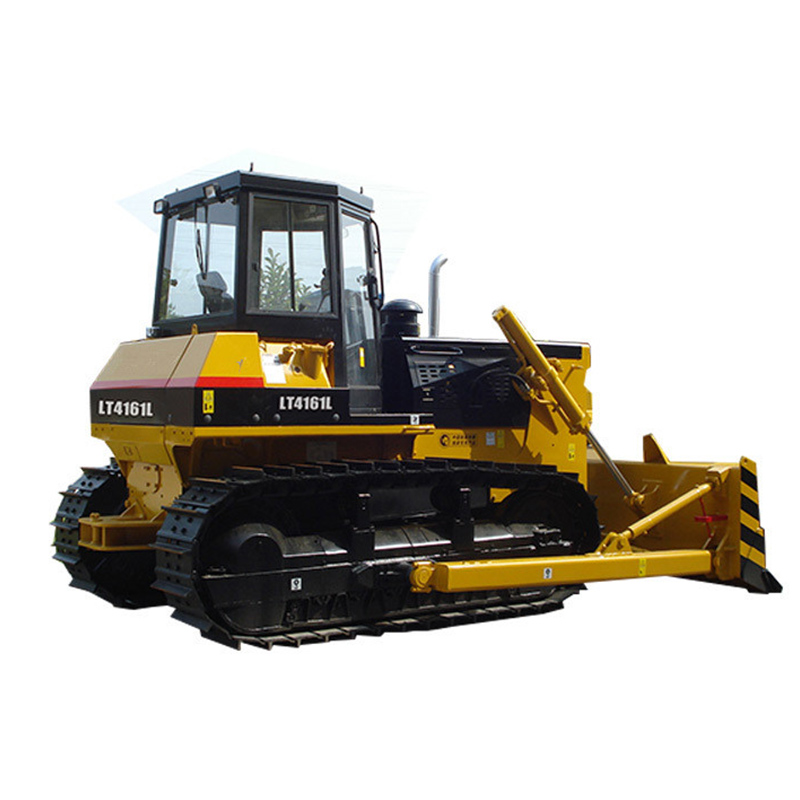

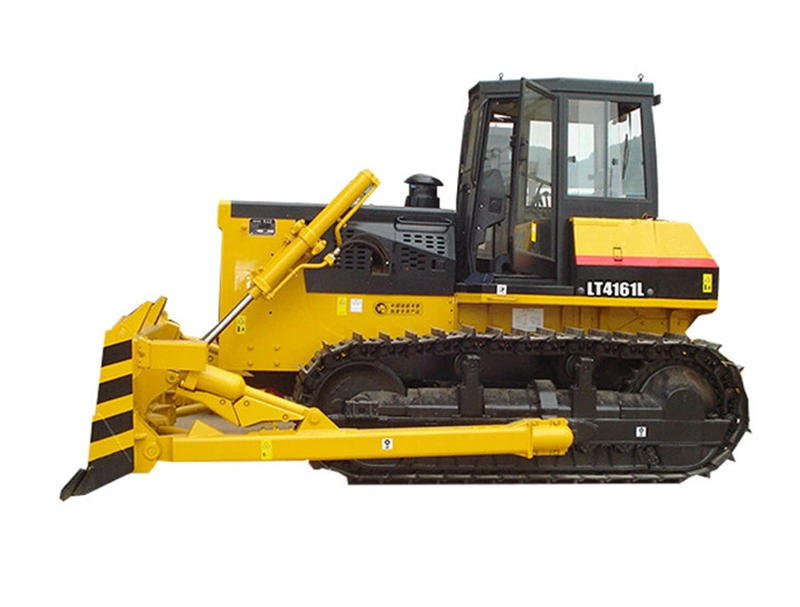

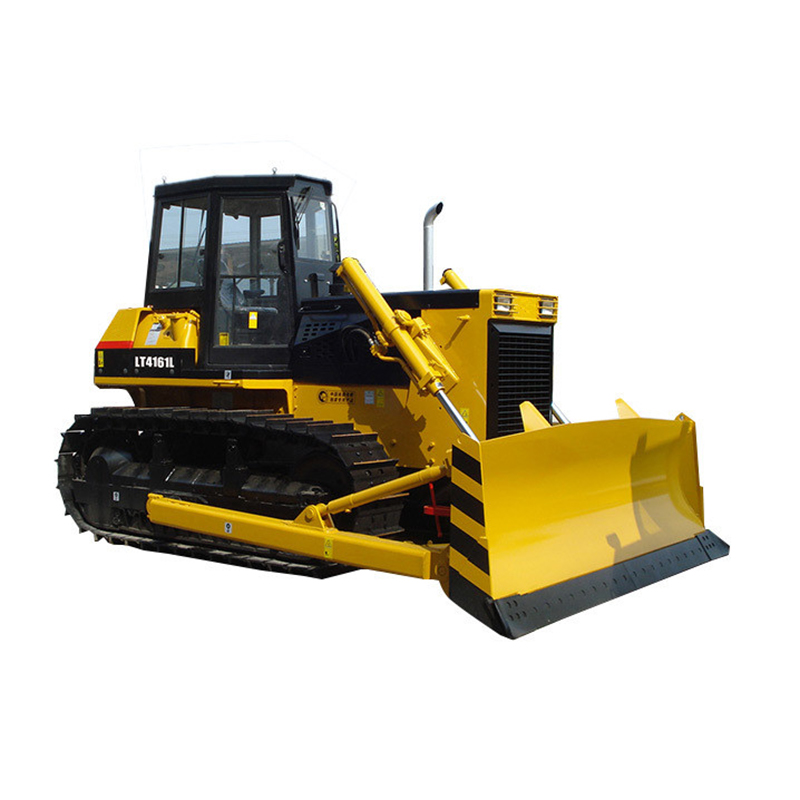

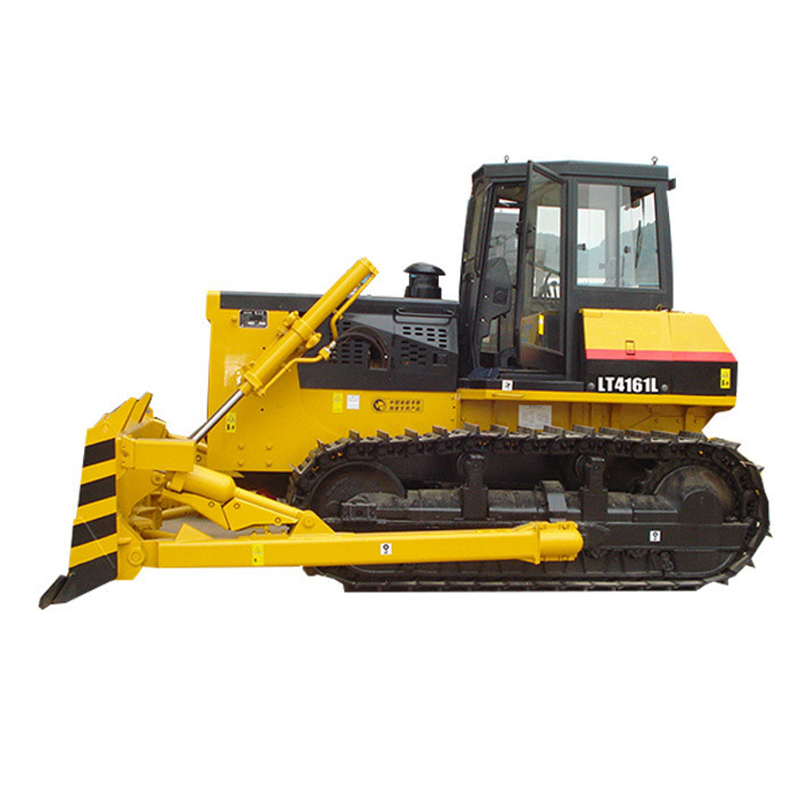

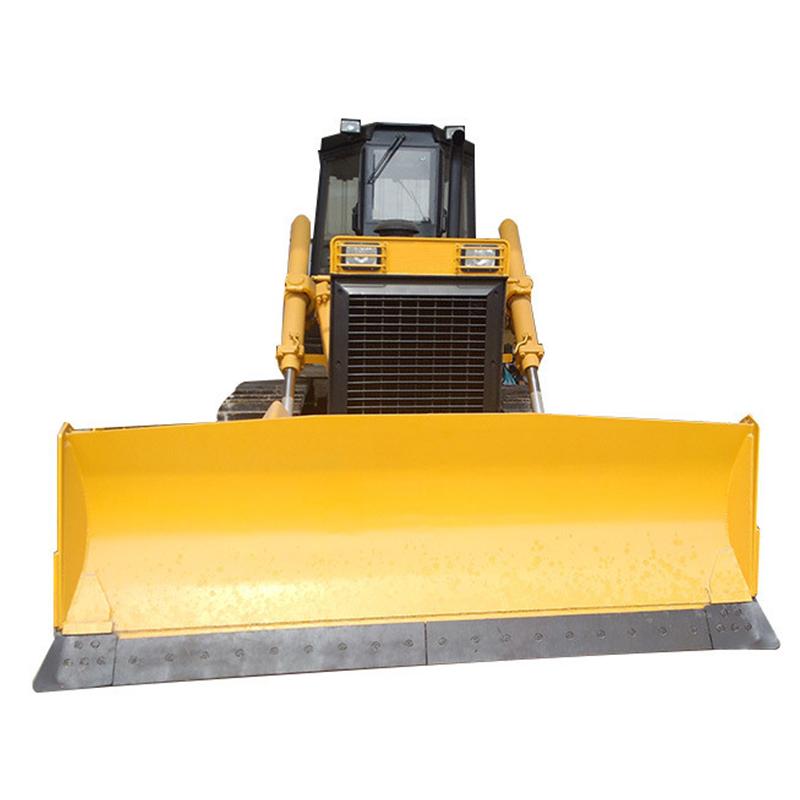

“LT4161L track bulldozer is a large-sized multipurpose track-type one used for shoveling and moving soil, sandstone, and things like that. It is widely applied in various earthwork engineering projects such as earth-bulldozing in minefields, capital construction works, road construction sites and port construction projects, etc., as well as operational tasks of grading earth, shoveling soil, and towing machines.
