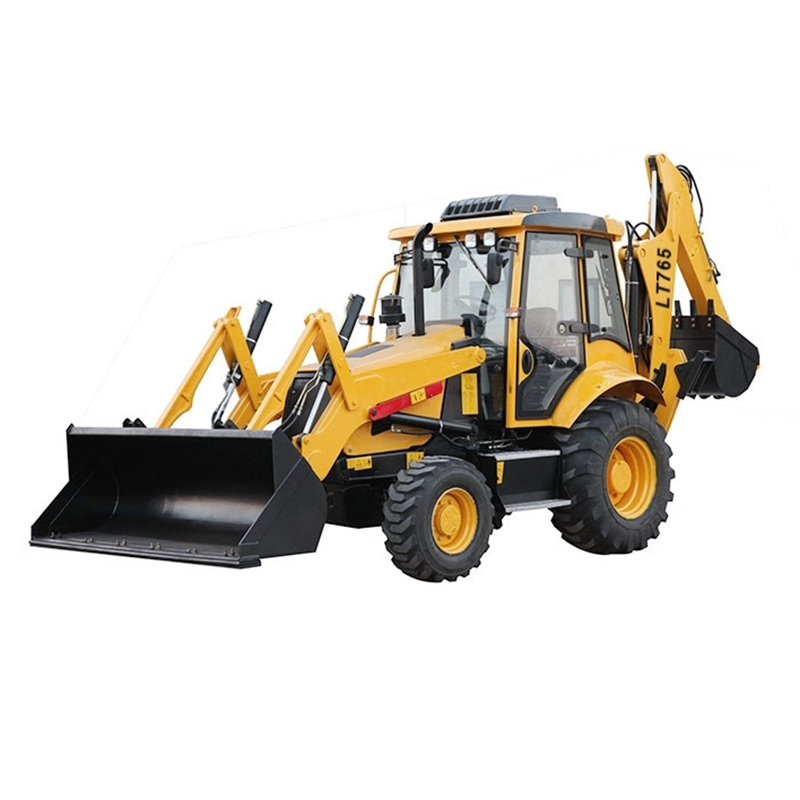

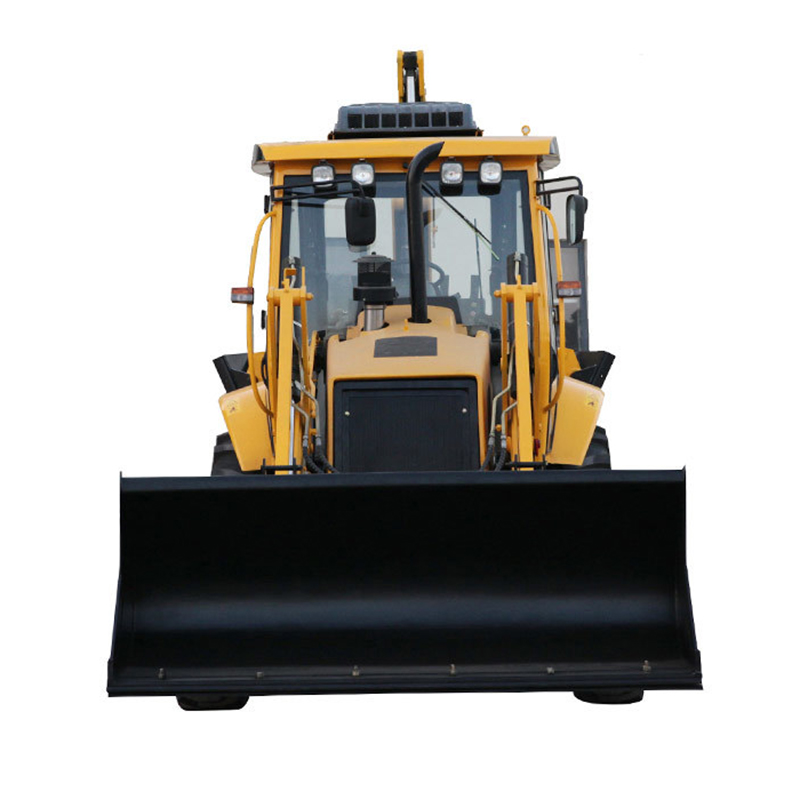

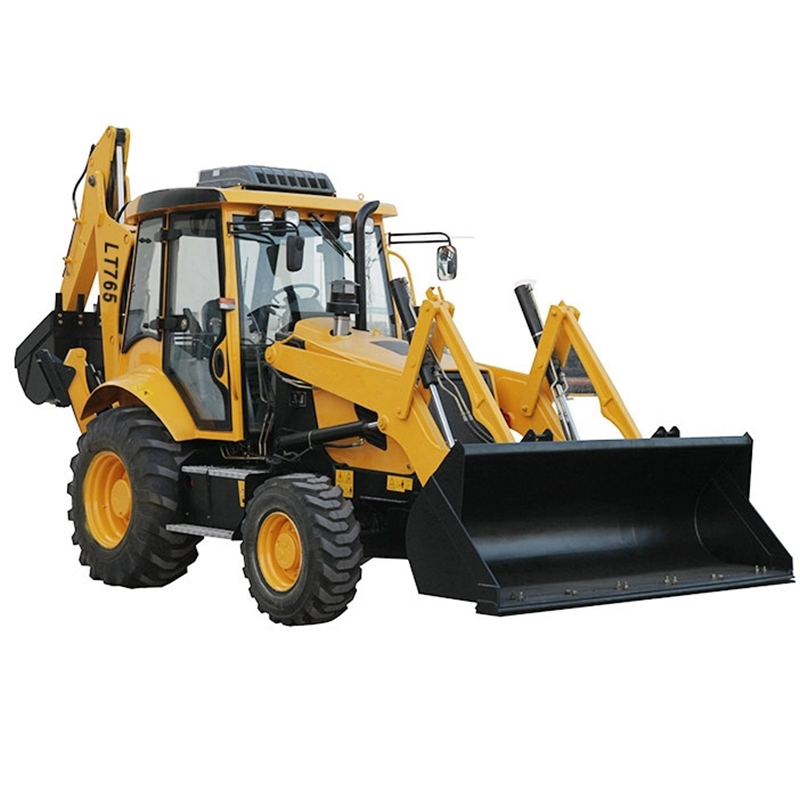

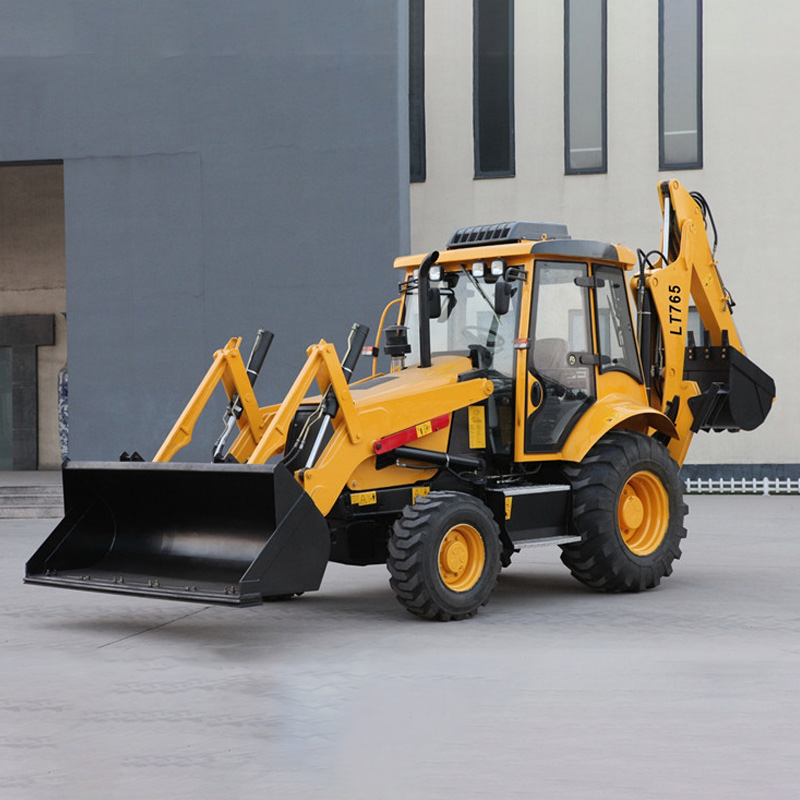

A backhoe loader is a single unit consisting of three pieces of construction equipment. Commonly known as “busy at both ends”. During construction, the operator only needs to turn the seat once to change the working end.
Backhoe loaders are mainly used in urban and rural road construction and maintenance, cable laying, power and airport engineering, municipal construction, farmland water conservancy, and various building construction projects undertaken by small construction teams.
InquiryWith a combination of digging and loading functions, it features high efficiency and a fast return on investment. With hydraulic power take-off, it can be equipped with a variety of auxiliaries for various operations. The cab features a wide vision, greatly improving the working efficiency, small turning radius, flexible steering, and quick response.
It is easy to control the digging arm locking mechanism and the special design that the digging device is placed over-center point makes the machine safer to transport and more balanced to drive.
The large colored glass, small cabin noise, independent heat & A/C system, and large cabin space bring the driver much comfort.
The special optional working device like a breaking hammer can make the machine multi-functional.
The four-gear synchronized electro-hydraulic gear shifting transmission box specially designed for the backhoe loader can quickly shift the gear according to the condition of the road surface. The hydraulic multi-disc wet type brake is safe and reliable with long service life.
| ENGINE | |||
| Engine Model | WEICHAI WP4G95E221 | WEICHAI WP4.1G100E311 | CUMMINS 4BTA3.9 |
| Type | Four-stroke, Direct Injection type, Turbo Charge | ||
| Rated Speed (rpm) | 2200 | 2200 | 2200 |
| Rated Power (hp/kw) | 95/70 | 100/74 | 112/82 |
| Peak Torque (N.m) | 380 | 395 | 460 |
| HYDRAULIC SYSTEM | |||
| Loading Pressure | 20mpa | ||
| Excavating Pressure | 20mpa | ||
| Steering Pressure | 15mpa | ||
| Output Pressure | 16mpa | ||
| Rated Flow | 110L/min | ||
| TYRE | |||
| Front Tire | 14-17.5NHS-14PR | ||
| Rear Tire | 19.5L-24-12PR R-4 | ||
| TRANSMISSION SYSTEM | |||
| CARRARO Transmission | Four gear synchronization, electric-hydraulic control forward/backward. The switch, shift, and loading control handle have a clutch splitting key. | ||
| CARRARO Front Axle | Swing turn, the oscillating angle is 22 degree | ||
| CARRARO Rear Axle | Braking axle with free-maintenance wet-type | ||
| Min. Ground Clearance | Four gear synchronization, electric-hydraulic control forward/backward. The switch, shift, and loading control handle have a clutch splitting key. | ||
| Driving Break | Swing turn, the oscillating angle is 22 degree | ||
| Min. Turning Radius at the outer of Front Wheel | |||
| Two-Wheel Drive | 3790mm | ||
| Four-Wheel Drive | 4300mm | ||
| Travel Speed | |||
| Gears | Forward (km/h) | Backward (km/h) | |
| Ⅰ | 5.8 | 5.8 | |
| Ⅱ | 10.5 | 10.5 | |
| Ⅲ | 20.1 | 20.1 | |
| Ⅳ | 40.2 | 40.2 | |
| Loading Operation Specification | |||
| Rated bucket capacity (m3) | 1 | ||
| Max. dumping clearance (mm) | 2650 | ||
| Max. dump reach (mm) | 1220 | ||
| Dig depth (mm) | 218 | ||
| Drawback angle at ground pos. | 40o | ||
| Bucket upward angle at max. working height | 45o | ||
| Max. breakout force (kn) | ≥40 | ||
| Rated lifting force (kn) | ≥25 | ||
| Rise time( s) | 5.1 | ||
| Fall time(s) | 4.9 | ||
| Tilting time( s) | 0.9 | ||
| Excavating Operation Specification | |||
| Standard Dipper | Extendible Dipper | ||
| Rated Backhoe Bucket Capacity (cbm) | Extend | — | 0.2 |
| Retract | 0.3 | 0.2 | |
| Max. Excavating Depth (mm) | Extend | — | 5519 |
| Retract | 4171 | 4357 | |
| Max. Excavating Force (KN) | Extend | — | ＞57 |
| Retract | ＞57 | ＞57 | |
| Max. Excavating Radius (mm) | Extend | — | 6728 |
| Retract | 5463 | 5597 | |
| Max. Dump Height (mm) | Extend | — | 4916 |
| Retract | 3860 | 3950 | |
| Max. Outreach From Mid. Of Rear Axle (mm) | Extend | — | 7826 |
| Retract | 6561 | 6695 | |
| Max. Outreach At The Max. Dump Height (mm) | Extend | — | 2179 |
| Retract | 1135 | 1466 | |
| Turning Angle | 180o | 180o | |
| Transportation Dimension | |||
| Standard Dipper | Extendible Dipper | ||
| Total Length (m) | 7.43 | 7.57 | |
| Boom Height for Transportation (m) | 3.48 | 3.66 | |
| Total Width (m) | 2.35 | 2.35 | |
| Wheel Base (m) | 2.2 | 2.2 | |
| Cabin Height (Including A/C) (m) | 2.97 | 2.97 | |
| Operating Weight (kg) | 7400 | 7800 | |
Details-1

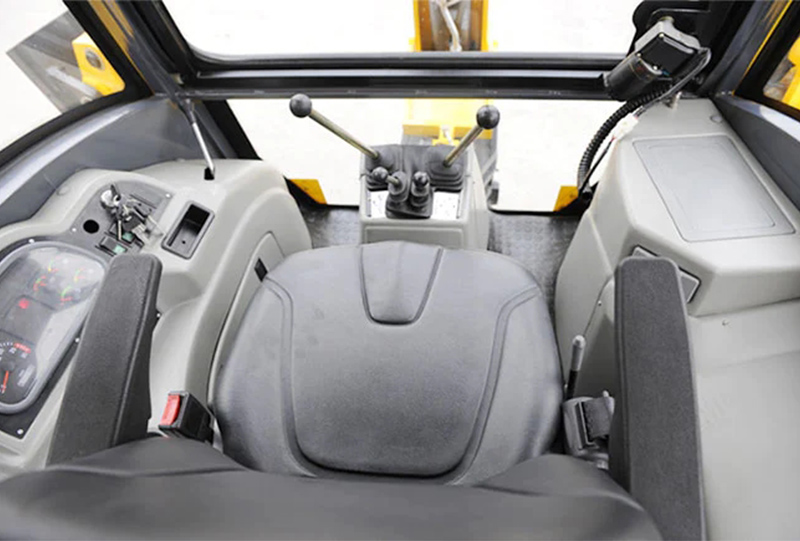

Luxury driver’s cabin, more space, wider visual field. The cab can be dismantled for a large space. Noise-isolation and vibration absorbers meet all kinds of operation.
Details-2

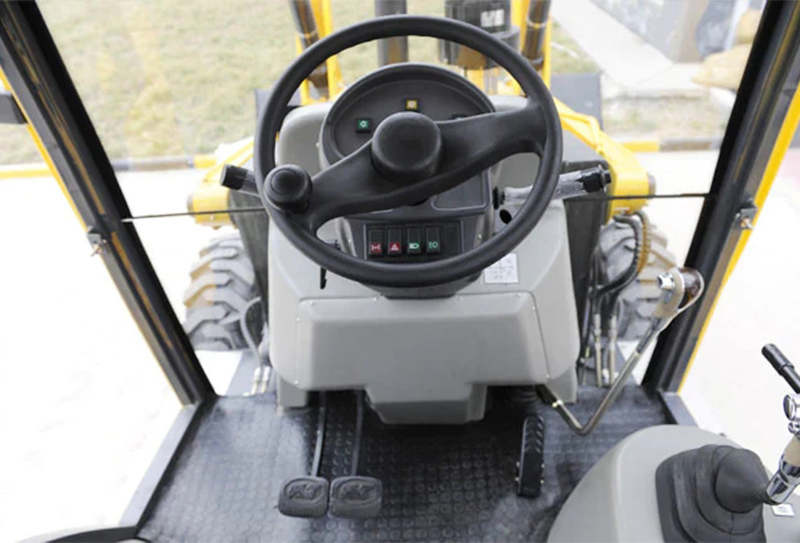

The Single-handle pilot control system (Optional), electronic control gearshift ensures easy and comfortable operation.
Details-3

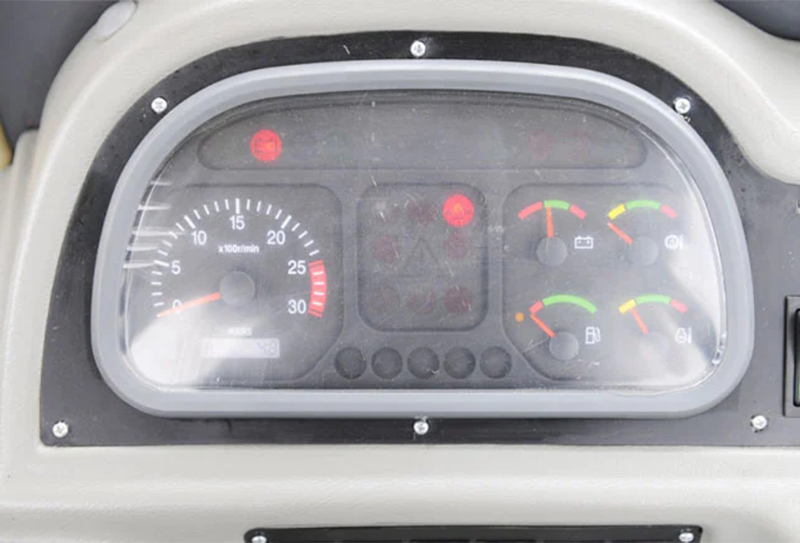

New style Digital LCD instrument.
Details-4

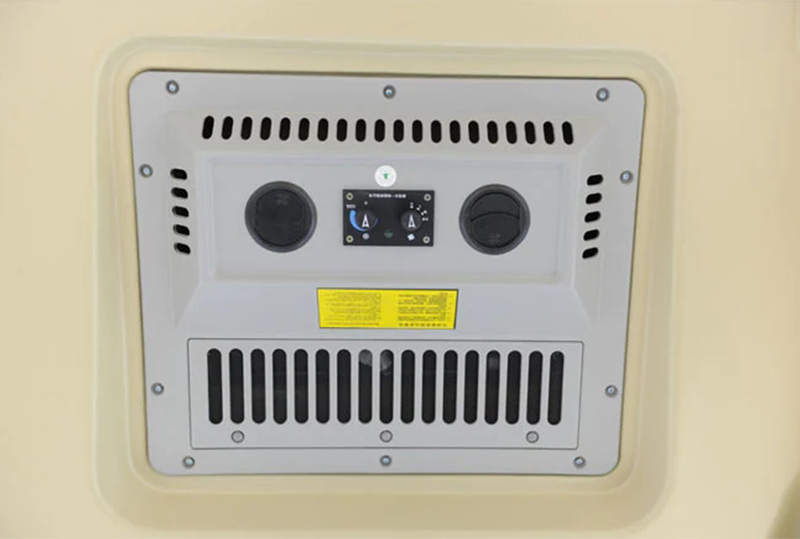

Air condition control panel.
Application and after-sales serviceMainly used at small-scale construction sites, farms, estates, shipyards, ports, roads, and municipal operations.
