Wheeled excavators are excavating machines that rely on tires as traveling parts. It has a fast walking speed, does not damage the road surface, can transfer to a long-distance by itself, and can quickly change a variety of operating devices.
With its distinctive characteristics of mobility, flexibility, and efficiency, wheeled excavators have been fully utilized in the areas of excavation and removal of materials such as airports, ports, oil fields, mines, urban and rural construction, farmland water conservancy, and rapid repairs.
InquiryEngine: Xinhai engine, high torque, non-shaking operation, strong power.
Powerful structure: The working device, the upper and lower frame plates are thick, the welding seam is firm, the strength is strong, the bearing capacity is super strong, and the real material is real.
Excellent performance: All hydraulic components are imported brands and domestic well-known brands, with superior performance, stable quality, and good durability; the inside and outside of the hydraulic system valve merges, and the whole machine operates consistently and stably.
Reinforced transmission shaft, more reliable transmission: Reinforced drive axle with large bearing capacity, high reliability, and low failure rate.
Unique and beautiful appearance: one-time metal molding using automotive mold technology, beautiful waistline, durable, environmentally friendly, and stylish.
Ergonomically designed luxury cab: with large space and wide field of vision. Front and rear adjustable injection molding instrument table, beautiful and elegant, comfortable operation.
| MODEL | LT8065W | ||
| DESCRIPTION | Unit | ||
| Basic parameter | Bucket capacity | m³ | 0.25 |
| Operating Weight | t | 6.0 | |
| Engine | Firm | Xinchai | |
| Engine | Model | A498BPG | |
| Rated power/speed(Net) | kW/(r/min) | 50/2350 | |
| Working range parameters | Boom | mm | 3060 |
| Arm | mm | 1750 | |
| Maximum digging Radius | mm | 5990 | |
| Maximum Digging Depth | mm | 3150 | |
| Min. rear turning radius | mm | 1755 | |
| Maximum digging height | mm | 6300 | |
| Maximum dumping height | mm | 4580 | |
| Performance parameters of the whole machine | Max. excavating force | kN | 45 |
| Swing Speed | r/min | 10.5 | |
| Travel Speed (high/low) | km/h | 30/3.3 | |
| Grading capacity | °/ % | 30°/59% | |
| Max. tracking force | KN | 60 | |
| Hydraulic system pressure | Mpa | 21 | |
| Overall dimensions | OVERALL Length | mm | 5545 |
| OVERALL Width | mm | 2050 | |
| Overall Height | mm | 2740 | |
| Up to frame width | mm | 1930 | |
| Min. ground clearance | mm | 215 | |
| Height of dozer blade(optional) | mm | 460 | |
| Dozer blade lifting /draping height | mm | 400/90 | |
| Hydraulic tank capacity | L | 125 | |
| Fuel tank capacity | L | 110 | |
Urban maintainers are competent for almost all maintenance and repair work in the city.
Joomach’s new generation of LT815W focuses on city pipeline laying, facility renovation, repair, and other comprehensive upgrades, using the fastest and most stable operating capabilities, the fastest mobility, and the lowest fuel consumption at the same tonnage, giving customers the greatest benefits.

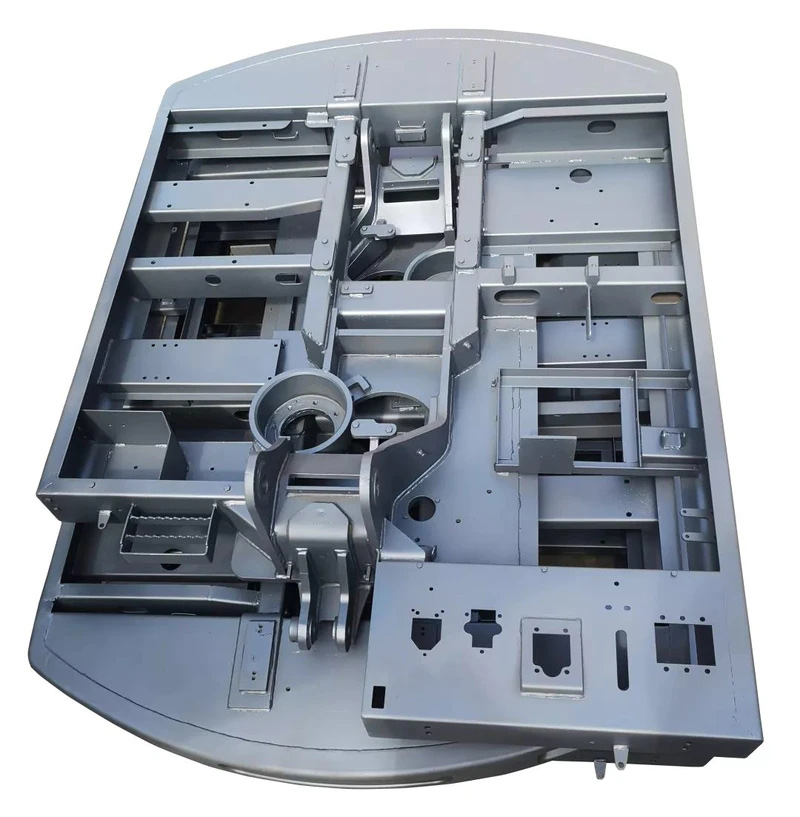

The upper and lower frame plates are thick, the welding seam is firm, the strength is strong, the bearing capacity is super strong, and the real material is real.

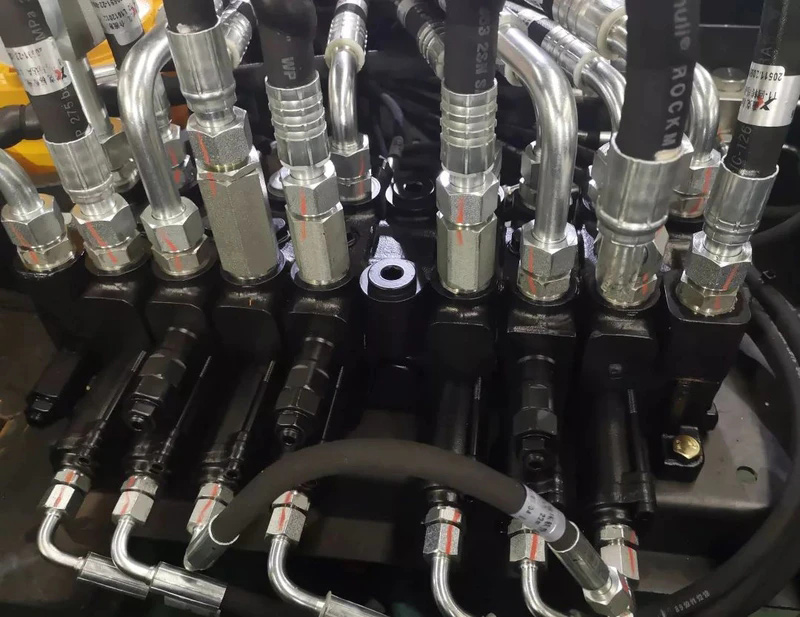

All hydraulic components are imported brands and domestic well-known brands, with superior performance, stable quality, and good durability; the inside and outside of the hydraulic system valve merges, and the whole machine operates consistently and stably.

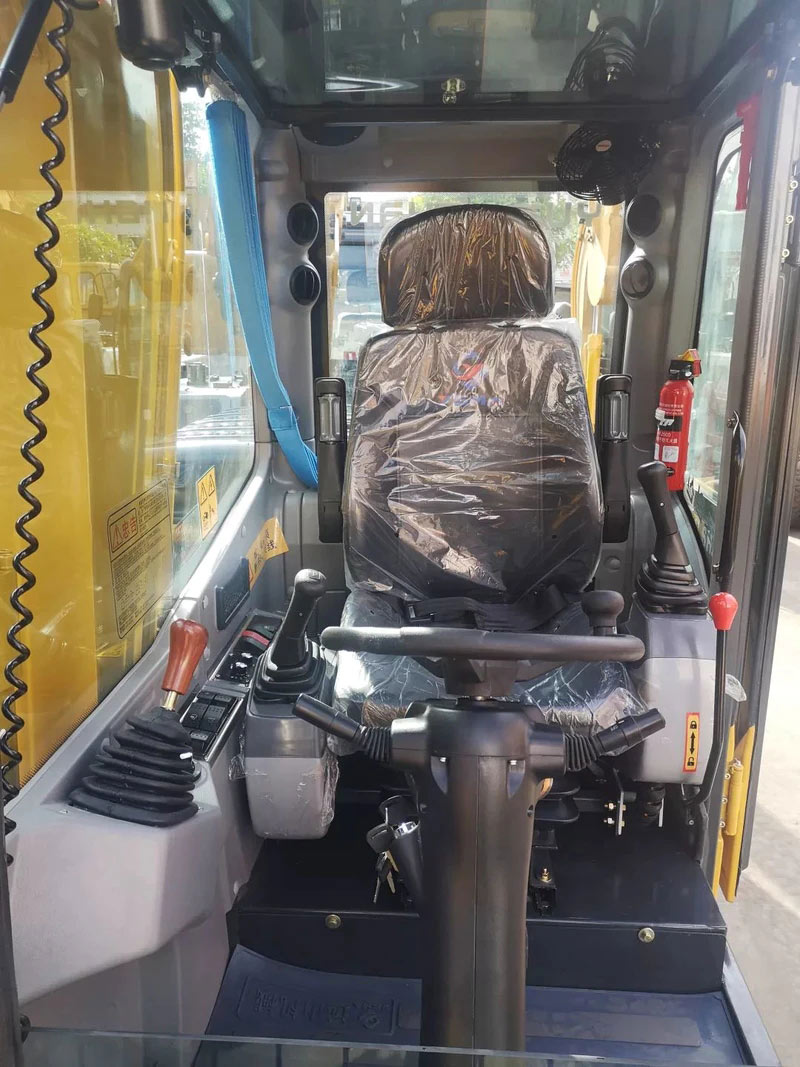

Ergonomically designed luxury cab

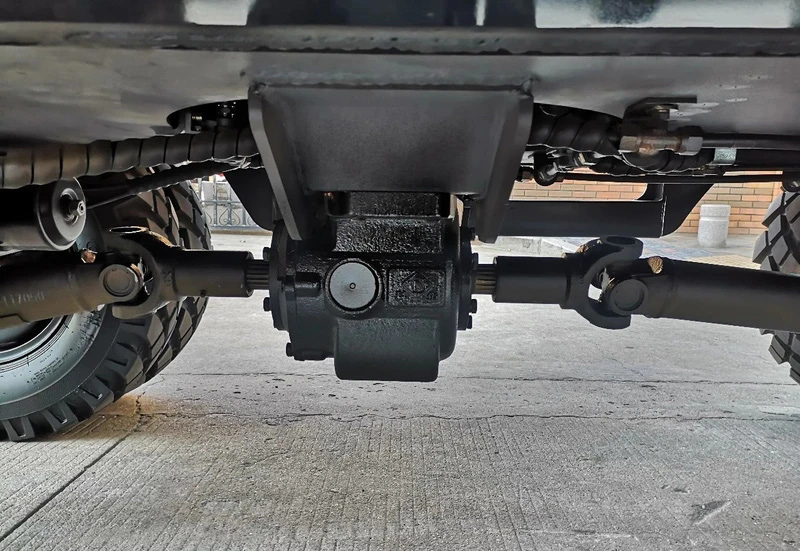

Reinforced transmission shaft, more reliable transmission
Application and after-sales serviceUrban maintainers are competent for almost all maintenance and repair work in the city.
The new generation of LT8065W focuses on city pipeline laying, facility renovation, repair, and other comprehensive upgrades, using the fastest and most stable operating capabilities, the fastest mobility, and the lowest fuel consumption at the same tonnage, giving customers the greatest benefits.
