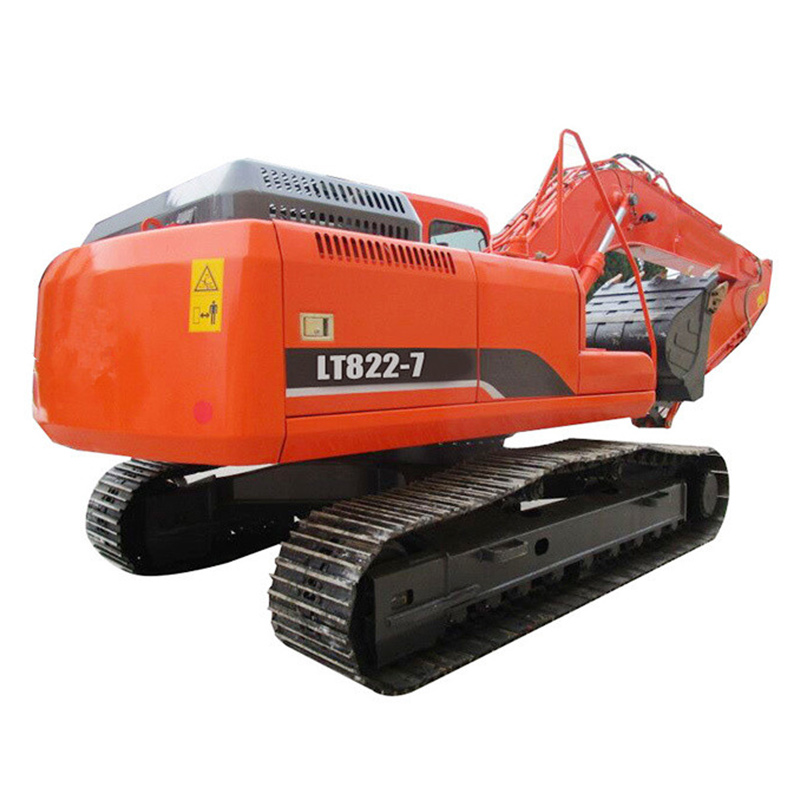

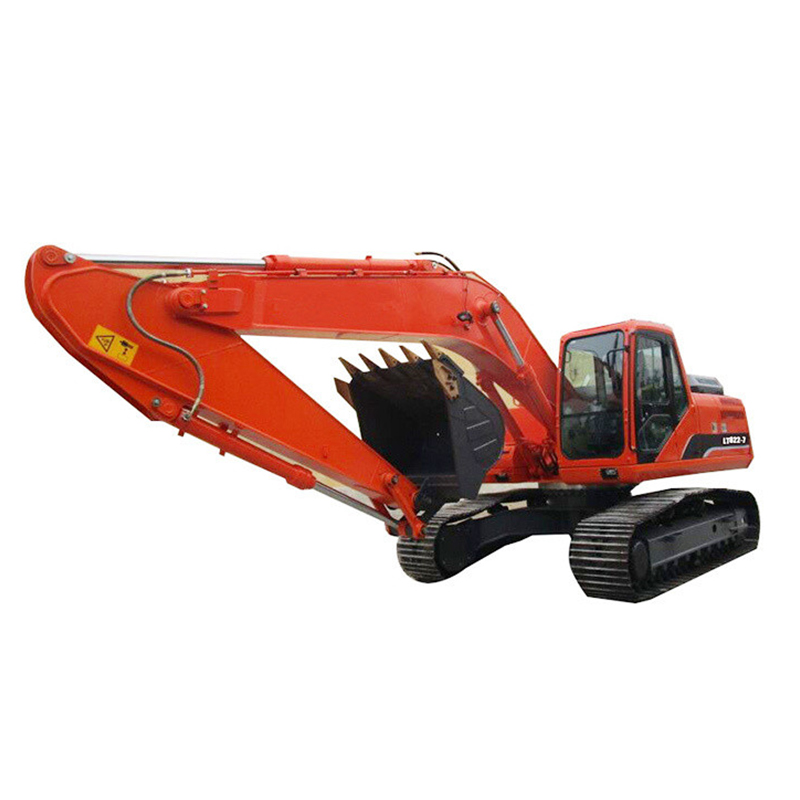

LT822-7 20 Ton Medium Crawler Type Excavator

Excavators, known as excavating machinery, is also an earthmoving machine that uses buckets to dig materials above or under the bearing surface and load them into transport vehicles or to the stockyard.

The materials excavated by the excavator are mainly soil, coal, sediment, and pre-loose soil and rock. Judging from the development of construction machinery in recent years, the development of excavators is relatively fast. Excavators have become one of the most important construction machinery in engineering construction. The three most important parameters of an excavator are operating weight (mass), engine power, and bucket capacity.

Inquiry

LT822-7 excavator features

Proven performance
Performance counts in every climate, on every job. We understand because we’ve been there in some of the most extreme conditions on the planet.
Reliability and efficiency
Everything you need in an excavator JOOMACH delivers. Power to handle the toughest conditions on-site. Reliability that gets the job done on time and within budget. Fuel and operating efficiencies that minimize operating costs.
Powerful strength
JOOMACH excavators power through the most challenging jobs with fuel-efficient and low-emission operations.
Powerful hydraulics for better operating efficiency
Increased availability and minimized service intervals
High-strength steel in the boom, stick, and bucket increases life by 30%
Highly durable materials for increased bucket and ground engaging tool life
Improved swing motor strength more than doubles component lifespan
High-quality electrical components throughout
Battery relay and throttle motor from trusted brands
Operator comfort and safety
Our spacious and ergonomically designed cab promotes operator productivity, comfort, and safety at every turn:
-Sleek ergonomic design
-Top-quality instrumentation
-Sound attenuated cab
-Automatic climate control
-Contoured high-quality suspension seat promoting operator comfort
-Driving speed

Parameters of LT822-7 excavator

MODEL LT822-7
DESCRIPTION Unit
Basic parameter Bucket capacity 0.5-1.2
Operating Weight t 21.5
Engine Firm Doosan/ISUZU
Engine Model DE08/6BG1
Rated power/speed(Net) kW/(r/min) (110/1950)/(135/1950)
Working  range parameters Boom mm 5700
Arm mm 2900
Maximum digging Radius mm 9910
Maximum Digging Depth mm 6630
Maximum Vertical digging depth mm 6045
Maximum digging height mm 9660
Maximum dumping height mm 6810
Performance parameters of the whole machine Max. excavating force(arm/bucket) kN 97/136.2
Swing Speed r/min 12.4
Travel Speed (high/low) km/h 4.5/3.1
Grading  capacity °/% 35°/70%
Noises at driver location dB(A) 75
Overall  dimensions Transport Length mm 9510
Transport Width mm 2990
Transport Height mm 3030
Cab Height mm 3000
Length of Shoe mm 3645
Track Gauge mm 2390
Shoe width mm 600
Minimum Tail Swing Radius mm 2750
          MODEL LT822-7

More details of Joomach excavator

Joomach excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering, mining, gardening, urban construction, cable laying construction, farmland use, pipeline excavation and buried, and mechanized construction in modern military engineering industries.

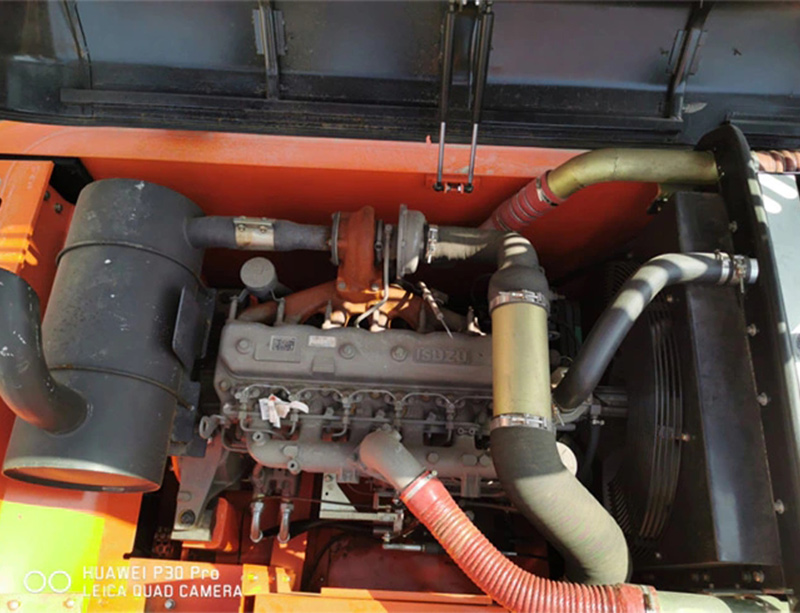

Engine
1. Tier II Engine
2. Three Work Modes
3. Automatic Idle Control System
4. Tri-stage Fuel Filtration
5. Alternator
6. Dual Element Air Filter
7. Oil Filter
8. Turbocharger with Charge Air Cooler

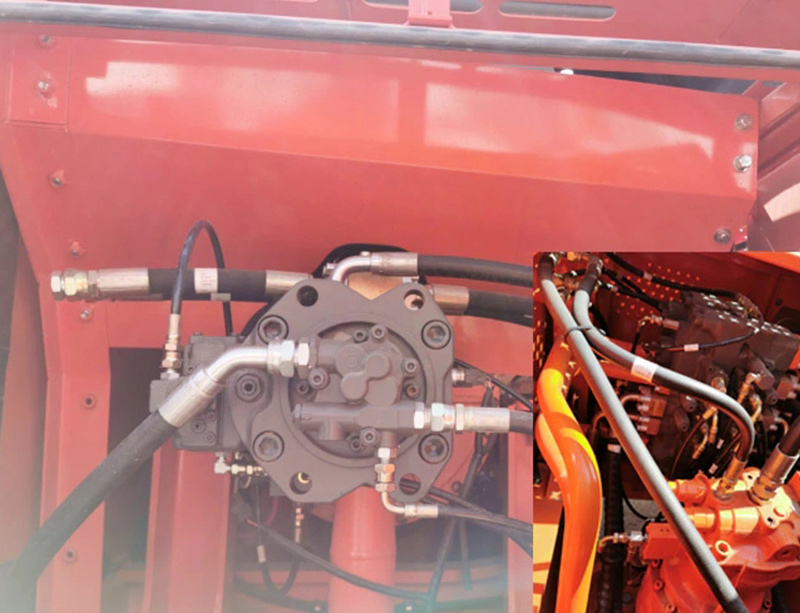

lt822 7 20 ton medium crawler type excavator4Hydraulic system
1. Power Boost Mode
2. Automatic Two-Speed Travel
3. Reduced-Drift Valve for Boom and Arm
4. Reverse Swing Dampening Valve
5. Bi-directional Double-Loop Hydraulic System
6. Pilot Operated Safety Check Valve
7. Safety Relief Valve

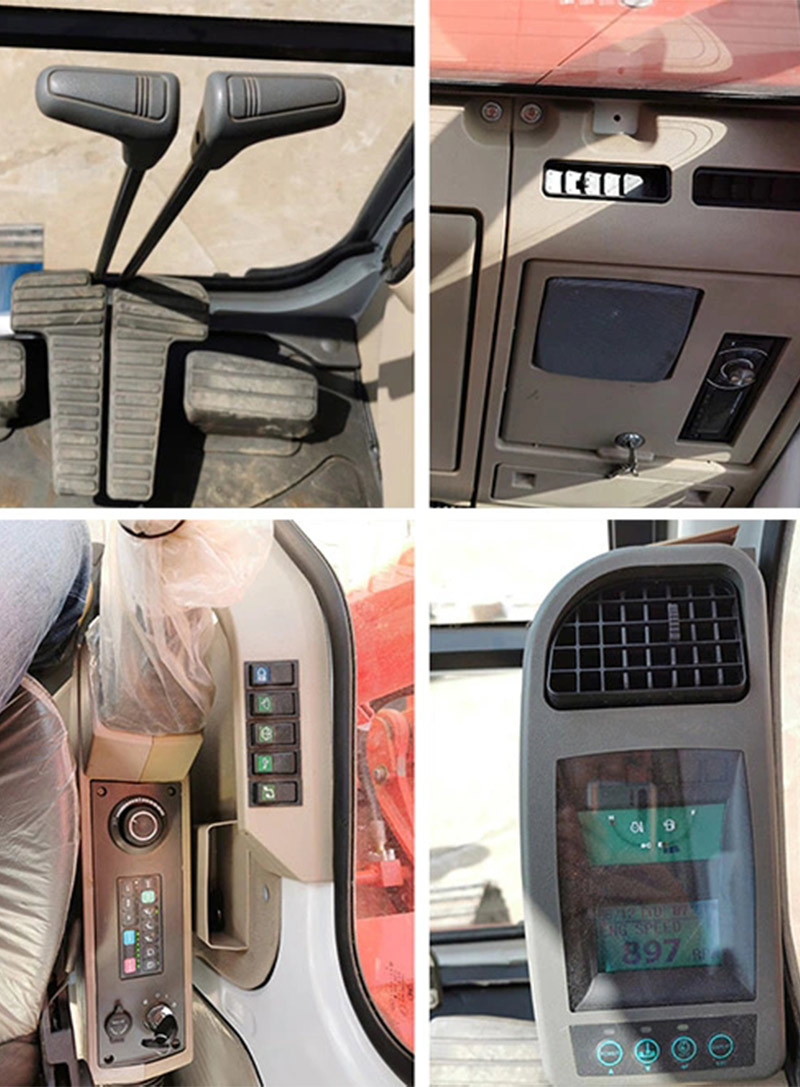

lt822 7 20 ton medium crawler type excavator5CAB
1. ROPS/FOPS (optional)
2. Removable Roof Window and Front Window
3. Emergency Exit Window
4. Removable Windshield within Cab Storage Bracket
5. Adjustable Seat
6. Cigarette Lighter
7. LCD Monitor
8. Auto Climate Control/AC/Heater/Pressurize
9. Windshield Wiper
10. 24V AM/FM Radio
11. 12V Power Outlet
12. Washable Floor Mat
13. Interior Part: Cup Holder, Interior Light, Hot/Cold Beverage Compartment, Storage Compartment, Seat with Storage Bag at the back.

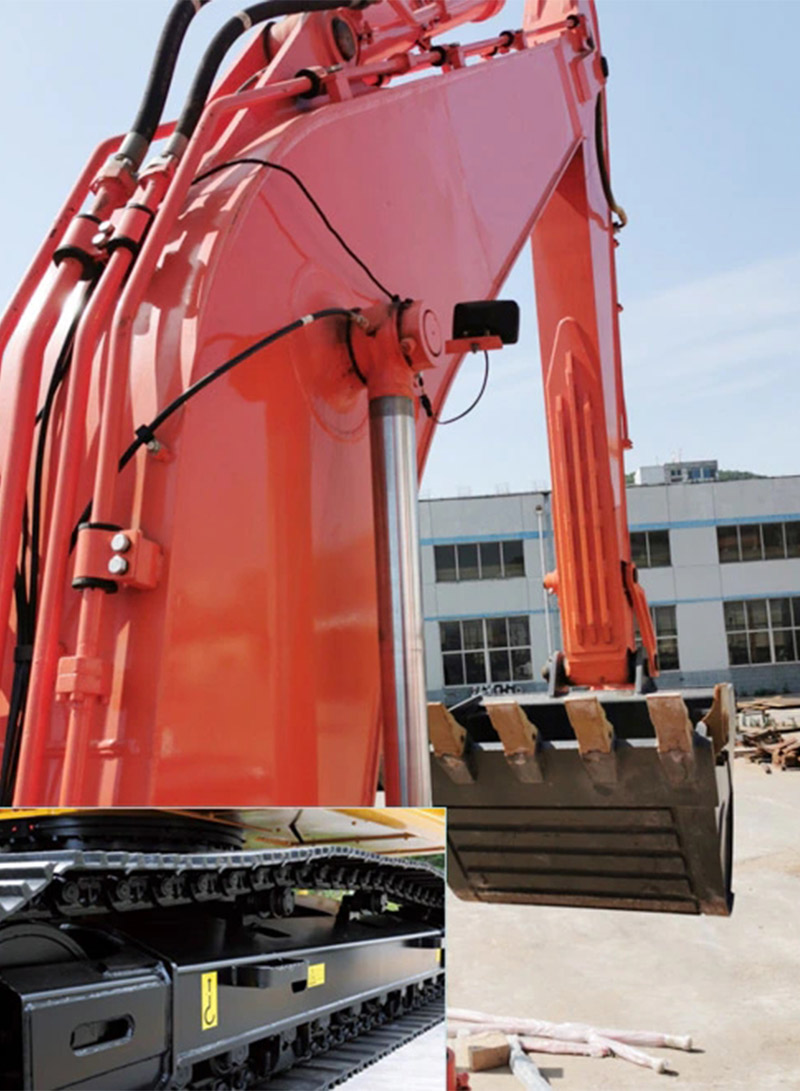

lt822 7 20 ton medium crawler type excavator6Undercarriage and upper structure

1. Lashing Points
2. Heavy Duty Rollers and Idlers
3. Heavy Duty Track Guides (Center)
4. 5.7m Boom, 2.9m Arm, Bucket with Lift Hook

lt822 7 20 ton medium crawler type excavator7

Application and after-sales service

LT822-7excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering, mining, gardening, urban construction, cable laying construction, farmland use, pipeline excavation, and buried, and mechanized construction in modern military engineering industries.
