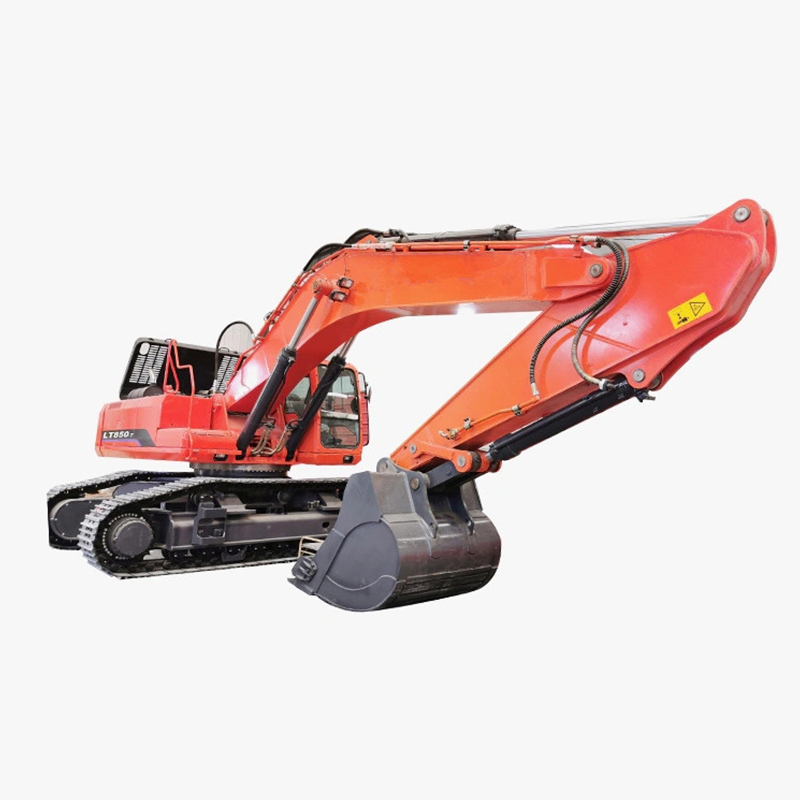

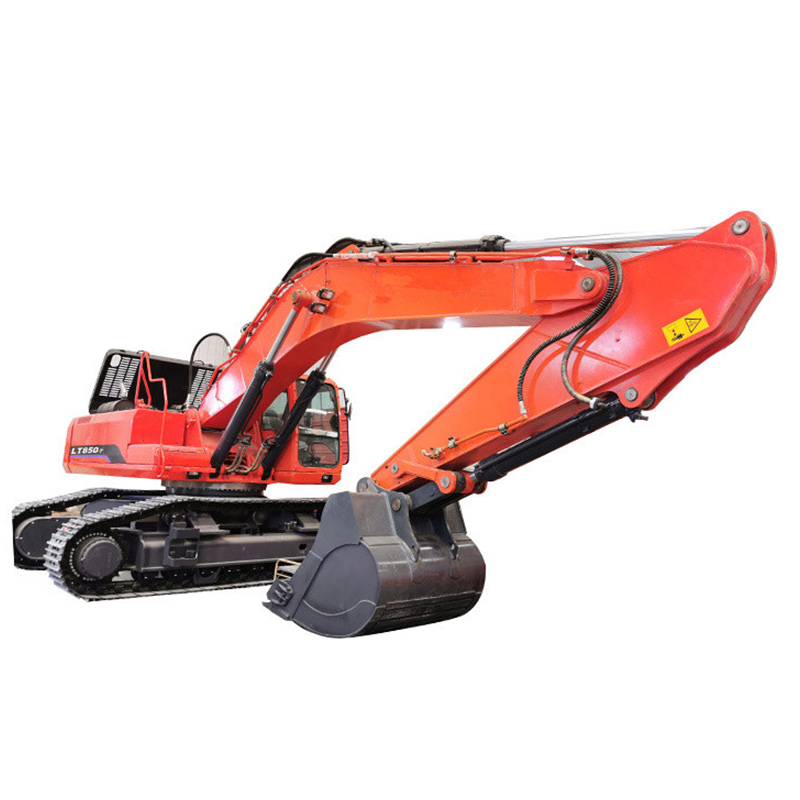

LT850-7 50 Ton Large Crawler Excavator

Excavator, also known as excavating machinery, is an earthmoving machine that uses buckets to dig materials higher or lower than the bearing surface and load them into transport vehicles or unload them to the stockyard.

The materials excavated by the excavator are mainly soil, coal, sediment, and pre-loose soil and rock. Judging from the development of construction machinery in recent years, the development of excavators is relatively fast. Excavators have become one of the most important construction machinery in engineering construction. The three most important parameters of an excavator: operating weight (mass), engine power, and bucket capacity.

Inquiry

Features of Joomach 50 ton excavator

Industry-leading performance and productivity
The combination of a newly improved engine and a redesigned driven hydraulic system with an attractive cost-performance ratio is unrivalled by any other hydraulic excavators in its class.
Durability & stability
Manufactured with surprisingly strong materials and structures, the LT830-7 is unrivalled in durability and safety, allowing it to pass rigorous performance tests under extreme conditions. Whenever you work in a tough environment, you can count on JOOMACH’s LT850-7.
Easy maintenance
Short maintenance operations at long intervals increase the machine’s availability onsite at all times. JOOMACH has developed the LT850-7 to deliver even higher profitability to the customer.
Operate comfort
More space, wider visibility, better air conditioning, and a very comfortable seat – all these elements allow the operator to work safely and comfortably for long hours in the best possible conditions.

Parameters of excavating machinery

MODEL LT850-7
DESCRIPTION Unit
Basic parameter Bucket capacity 2.17
Operating Weight t 50.8
Engine Firm Doosan/ISUZU
Engine Model DE12/6UZ1
Rated power/speed(Net) kW/(r/min) (238/1800)/(257/1800)
Working  range parameters Boom mm 7100
Arm mm 3350
Maximum digging Radius mm 12110
Maximum Digging Depth mm 7800
Maximum Vertical digging depth mm 4400
Maximum digging height mm 11050
Maximum dumping height mm 7900
Performance parameters of the whole machine Max. excavating force (arm/bucket) kN (212.7/225.4)/(286.2/303.8)
Swing Speed r/min 8.9
Travel Speed (high/low) km/h 5.0/3.0
Grading  capacity °/ % 35°/70%
Noises at driver location dB(A) 77
Overall  dimensions Transport Length mm 12132
Transport Width mm 3342
Transport Height mm 3700
Cab Height mm 3350
Length of Shoe mm
Track Gauge mm
Shoe width mm 600
Minimum Tail Swing Radius mm 3750

More details of the Joomach excavator

JOOMACH excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering. It is also applied in mining, gardening, urban construction, cable laying construction, farmland use, pipeline excavation and buried, and mechanized construction in modern military engineering industries.

lt850 7 50 ton large crawler excavator4

lt850 7 50 ton large crawler excavator5

lt850 7 50 ton large crawler excavator6lt850 7 50 ton large crawler excavator7Application and after-sales service

LT850-7excavator is widely used in industrial and civil building construction and construction, transportation, water conservancy, and power engineering. It is also applied in mining, gardening, urban construction, cable laying construction, farmland use, pipeline excavation and buried, and mechanized construction in modern military engineering industries.
