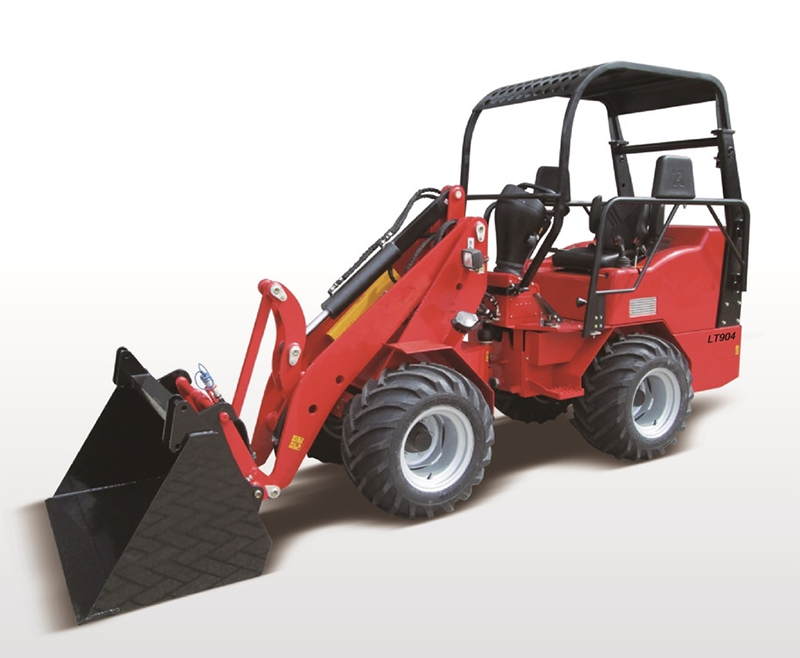

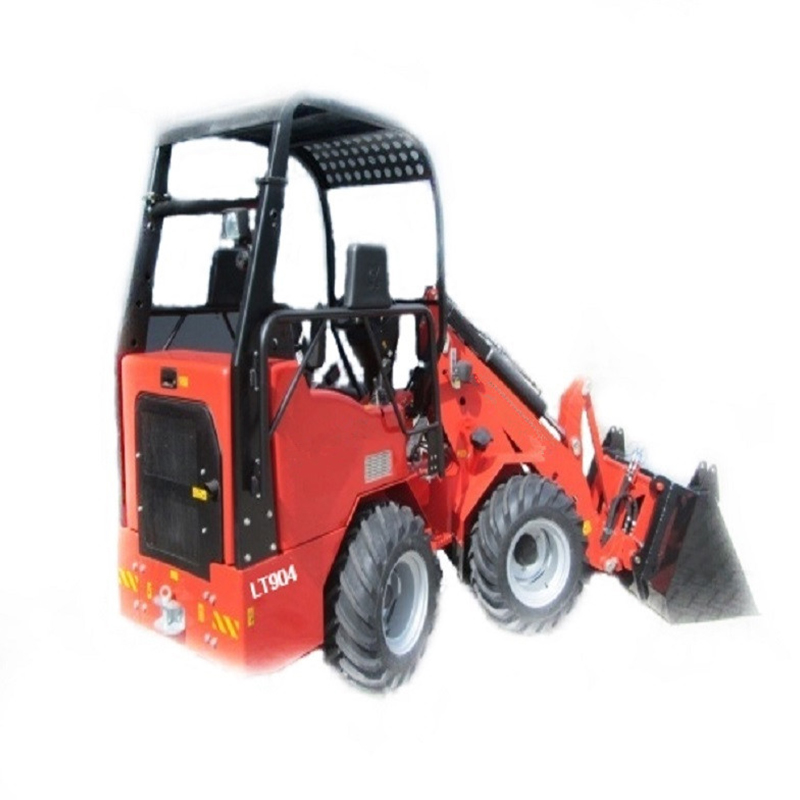

Mini-wheel loaders deliver high performance, versatility, good maneuverability, light operation, and precision in any application. Its maximum power is 24.4kw, operating weight is 2450kg, and bucket capacities are 0.45cbm.
Inquiry1.Adopt Perkins power to achieve Euro III emissions, energy-saving, and environmental protection.
2.The closed hydrostatic system with low energy consumption and energy-saving.
3.The unique hydraulic quick-change mechanism can meet users’ multi-purpose operation needs.
4.The integrated multi-function joystick is easy to operate.
5.The adjustable combination instrument is practical and generous.
6.Unique frame hinges, compact and durable.
7.Adapt to a wide range of wide tires and shock-absorbing seats for safety and comfort.
8.The cover can be turned forward for easy maintenance.
9.Small working radius, flexible and flexible.
10.Rich Optional.
Quick hitch for special needs such as the standard bucket, standard bucket with an upper clamp, sillage cutters, feed measuring bucket, bale clamp, mowing deck, sweepers, paver installation system clamp, brick clamp, kerbstone clamp, brick clamp, tile fork, earth drill installation, stone bucket with inlay plate, manure fork with an upper clamp, pallor forks, etc.
| Engine | Model | 1403D 15 |
| Rated power | 24.4KW | |
| Rated speed | 2800r/min (EUR III) | |
| Maximum torque | 96N. m | |
| Bore*stroke | 84x90mm | |
| Displacement | 1500cm³ | |
| Fuel consumption rate under calibration conditions | 263g/kW. h | |
| Dimensions | A Total length with standard bucket | 4330mm |
| A’ Length of cab transportation position | 4260mm | |
| Total height without cab | 1970mm | |
| B Height to top of the cab | 2480mm≥25° | |
| C Total width | ||
| Narrow tire standard | 1075mm | |
| Wide tire | 1329mm | |
| D Wheelbase | 1550mm | |
| E Minimum ground clearance | 345mm | |
| F Track width | ||
| Narrow tire standard | 812mm | |
| Wide tire | 939mm | |
| G Bucket width | 1370mm | |
| H Radius at the outer edge | 2541mm | |
| H’ Max. radius | 3037mm | |
| I Total working height | 3630mm | |
| J Max. height of bucket pivot | 2950mm | |
| K Max. dumping height | 2190mm | |
| L Dumping reach | 630mm | |
| M Digging depth | 150mm | |
| N Max. inclination angle | 43° | |
| O Backroll angle on the ground | 42° | |
| P Departure angle | 22° | |
| Q Max. dumping angle | 32° | |
| T Total length without a bucket | 3550mm | |
| Performance parameters | Bucket capacity standard | 0.45m³ |
| Rated load | 400kg | |
| Operating weight | 2450kg | |
| Operating weight with our bucket | 2160kg | |
| Total | 8s | |
| Travel speed | ||
| Forward I | 7km/h | |
| Forward II | 18km/h | |
| Reverse I | 7km/h | |
| Reverse II | 18km/h | |
| Max. breakout force | 15KN | |
| Max. grade ability | 22° | |
| Fuel tank capacity | 70L | |
| Hydraulic tank capacity | 40L | |
| Tire spec. | ||
| Standard | Narrow tire:10 16.5NHS | |
| Optional | Wide tire:31×15.5 15 |
LT904 mini wheel loader is more suitable for infrastructure construction, industrial applications, terminal loading and unloading, urban streets, houses, barns, barns, airport runways, etc., and can also be used as auxiliary equipment for large scale construction machinery.
