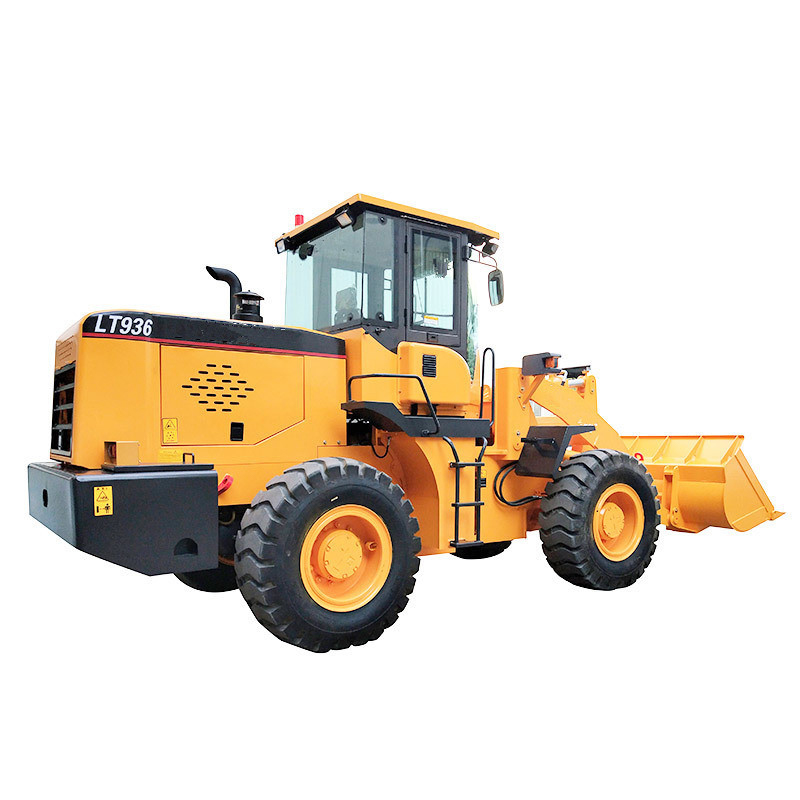

LT936 3Ton Medium Front End Wheel Loader

The loader is a kind of earthwork construction machinery widely used in construction projects such as roads, railways, construction, hydropower, ports, mines, etc. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal. It can also be used for ore, Use hard soil for light shoveling and digging. Different auxiliary working devices can also be used for bulldozing, lifting, and other materials such as timber loading and unloading operations.

Inquiry

3 ton medium front end wheel loader LT936 product feature

Durable Structure
The Max. dumping height is 3400mm. Medium wheelbase design makes the loader more steady, larger dumping height, and shorter action cycling time that makes the working more efficient.
Large Force
Single rocker Z-form reversal mechanism working device has large breakout force due to the optimization design.
Comfortable Operating Environment
The cab can be dismantled for a large space. Noise-isolation and vibration absorbers meet all kinds of operation. The Single-handle pilot control system (Optional), electronic control gearshift, luxury chair ensure the easy and comfortable operation.
Convenient Maintenance
The pin with dustproof and the external grease fittings offer easy maintenance. ide-opening hood Makes servicing & maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space.
Rich Optional

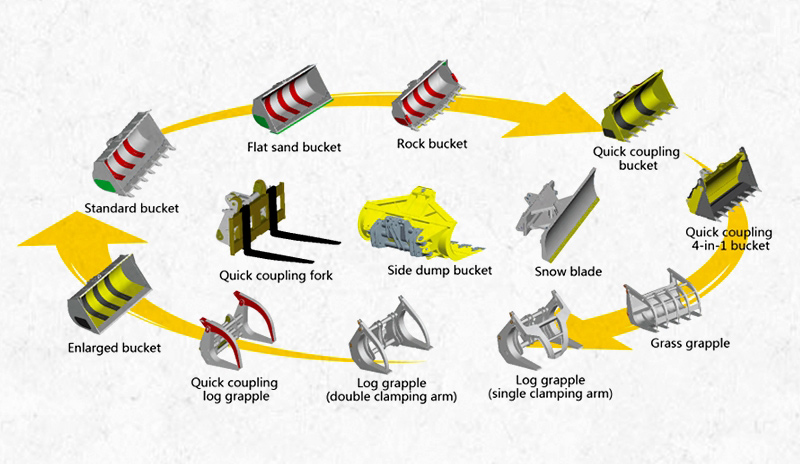

Quick hitch for special needs such as the log grapple, fork, snow blade, grass fork, enlarged bucket, etc.

3 ton medium front end wheel loader LT936 product parameters

LT936
Base parameter Operating weight 10400Kg
Rated load 3000Kg
Bucket capacity 1.7m³
Engine Engine model Weichai Deutz WP6G125E22(Tie II)
Rated power 92KW
Rated rotate speed 2200rpm/min
Max.torque 500N.m
Performance parameters Breakout force 98KN
Raise time ≤6.8s
Total ≤12.5s
Grade ability ≥25°
Forward I 0-8km/h
Forward II 0-13.5km/h
Forward III 0-25km/h
Forward IV 0-36km/h
Reverse I 0-9.5km/h
Reverse II
Reverse III
Overall dimensions Overall length 7200mm
Overall width 2300mm
Overall height 3200mm
Bucket width 2350mm
Track base 2850mm
Wheelbase 1800mm
Working range parameters Min. ground clearance 450mm
Max.dumping height 3400mm
Max. dumping reach 1290mm
Min. turning radius
Other  Transmission
Tire type 17.5-25

3 ton medium front end wheel loader LT936 product details

Details-1

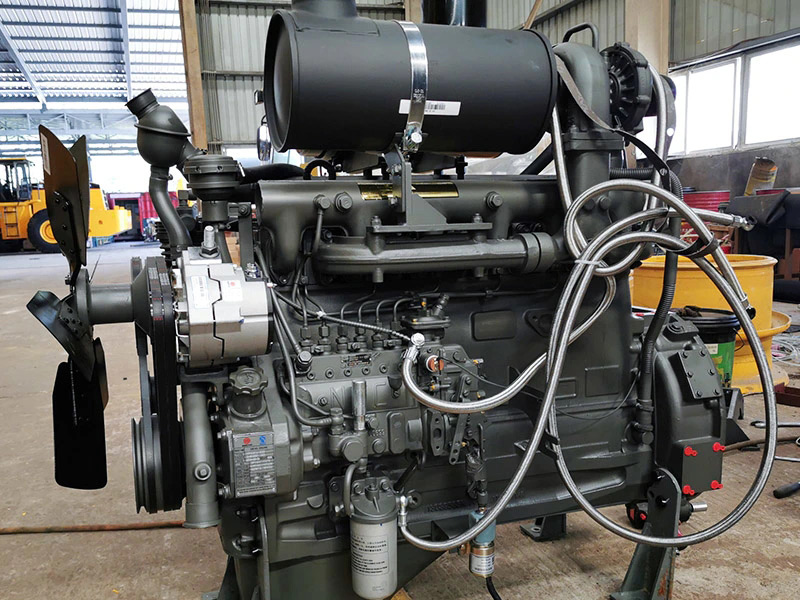

Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine, Shangchai engine is optional.

lt936 3ton medium front end wheel loader 7

Details-2

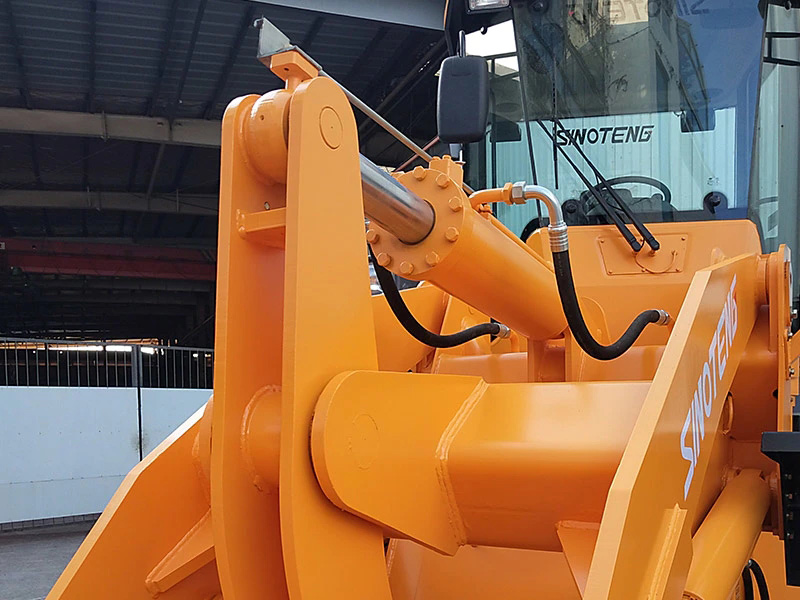

Single rocker arm Z-type reversal mechanism, optimized design, stronger breakout force.

lt936 3ton medium front end wheel loader 8

Details-3

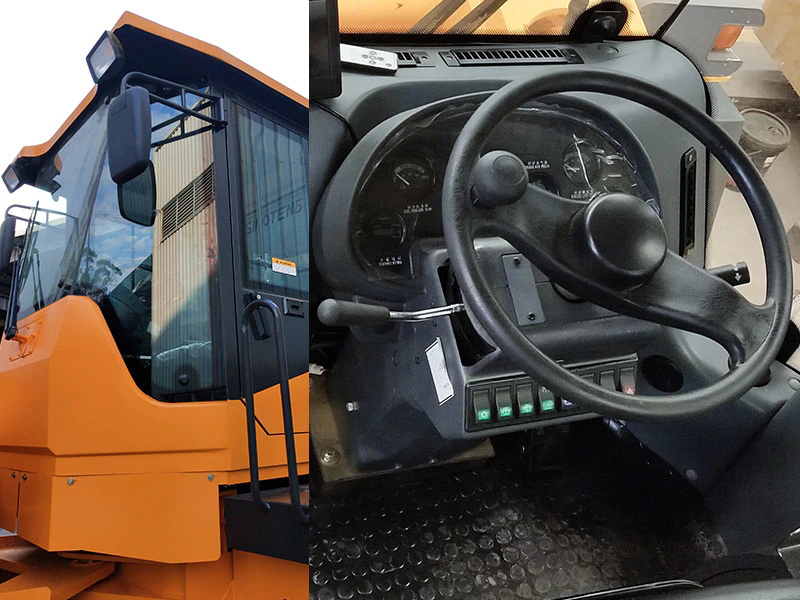

Luxury driver’s cabin, more space, wider visual field.

lt936 3ton medium front end wheel loader 9

Details-4

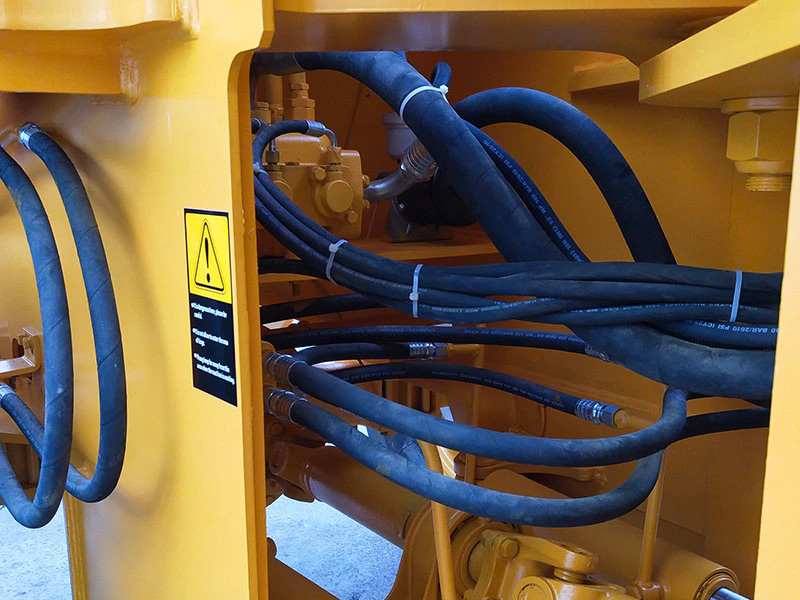

JOOMACH uniquely designed hydraulic pipeline layout, the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.

lt936 3ton medium front end wheel loader 10

Details-5

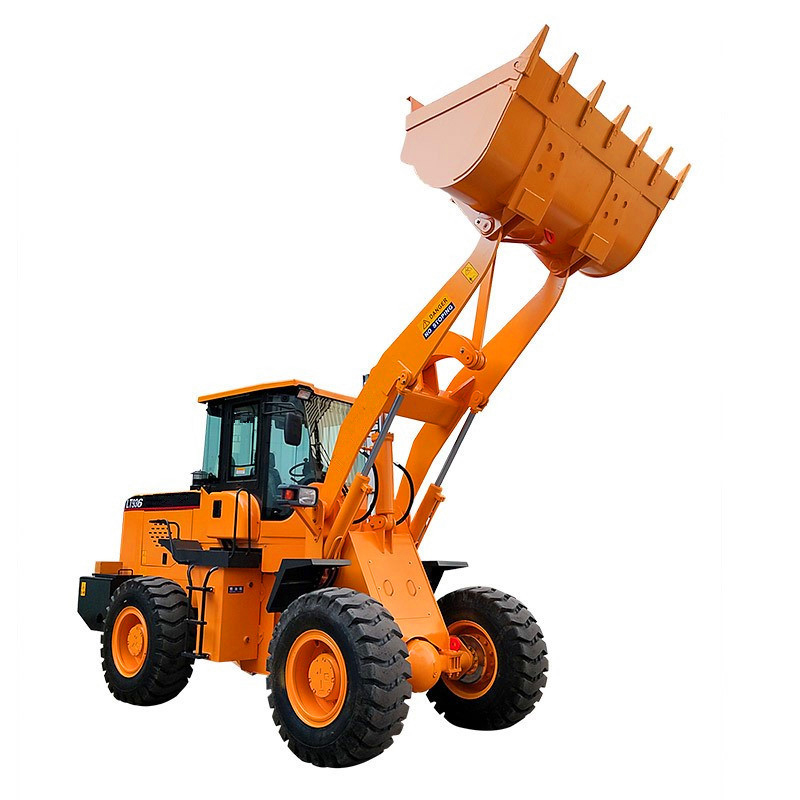

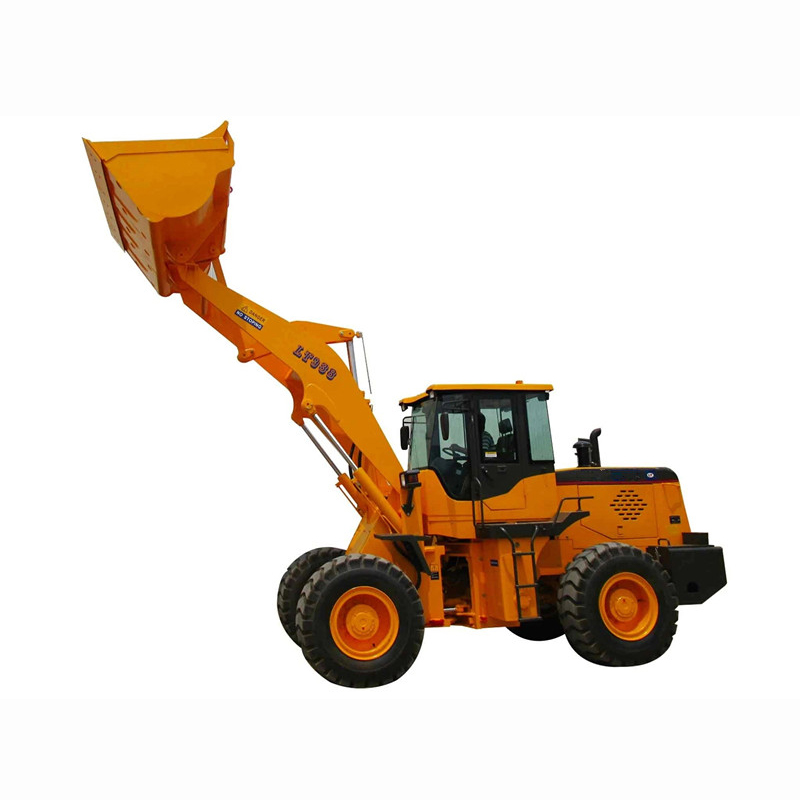

The max. dumping height is 3400mm.

lt936 3ton medium front end wheel loader 11

Details-6
An articulated frame with a small turning radius makes the wheel loader flexible and convenient to operate.

lt936 3ton medium front end wheel loader 12

Details-7

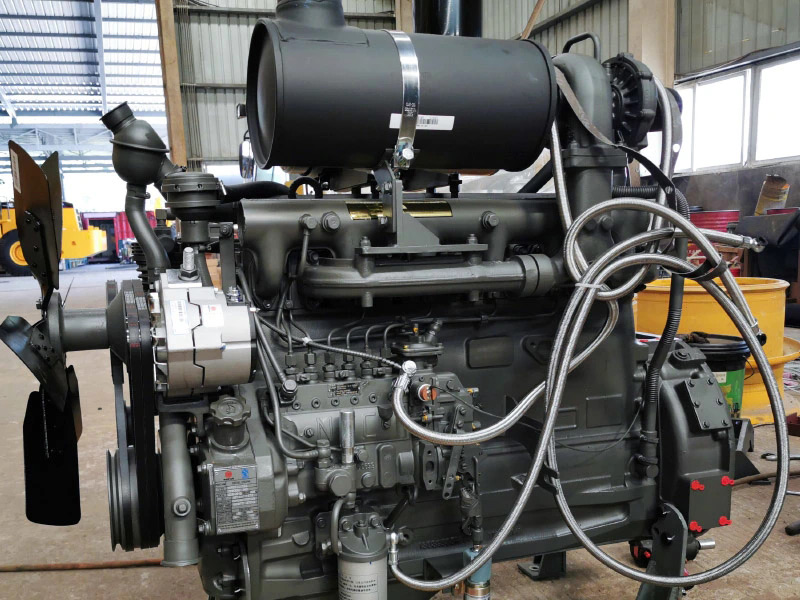

Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine, Shangchai engine is optional.

lt936 3ton medium front end wheel loader 12

Details-8

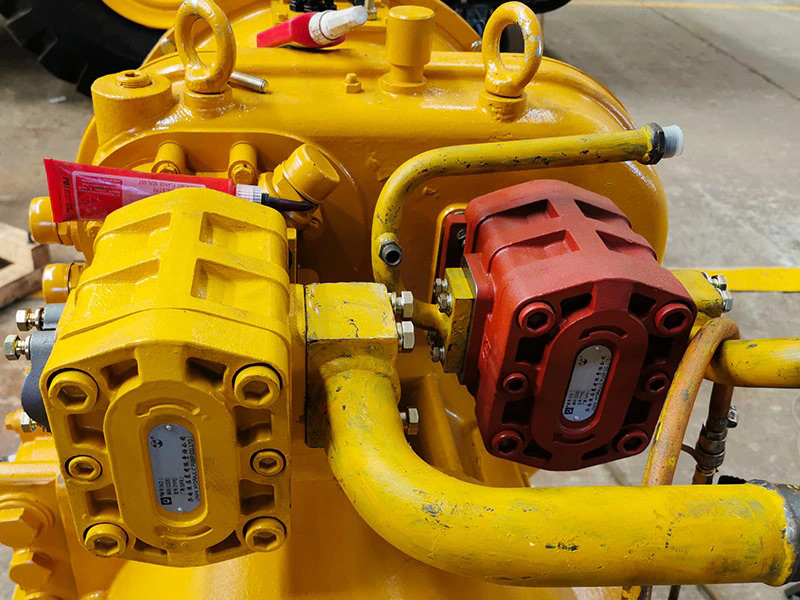

Famous brand hydraulic pump, long service life, and high working efficiency.

lt936 3ton medium front end wheel loader 133 ton medium front end wheel loader LT936 application and after-sales service

LT936 is applicable for agriculture, such as planting, feeding or farming, etc,is also applicable for forestry business, communication construction, farming, pasture, etc. such as forest conservation, forest exploitation, wood factory.

lt936 3ton medium front end wheel loader 14
