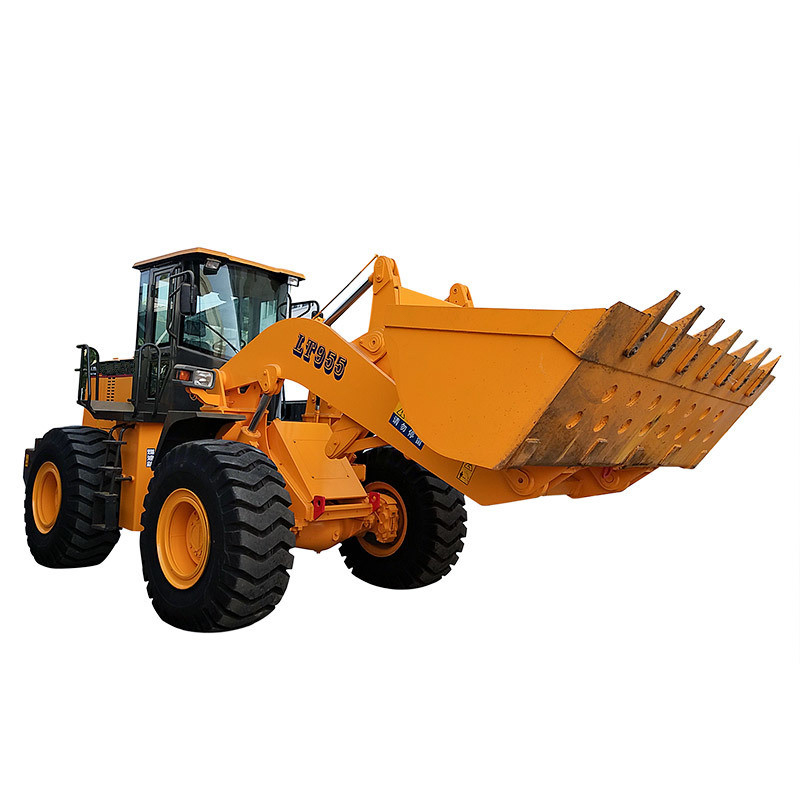

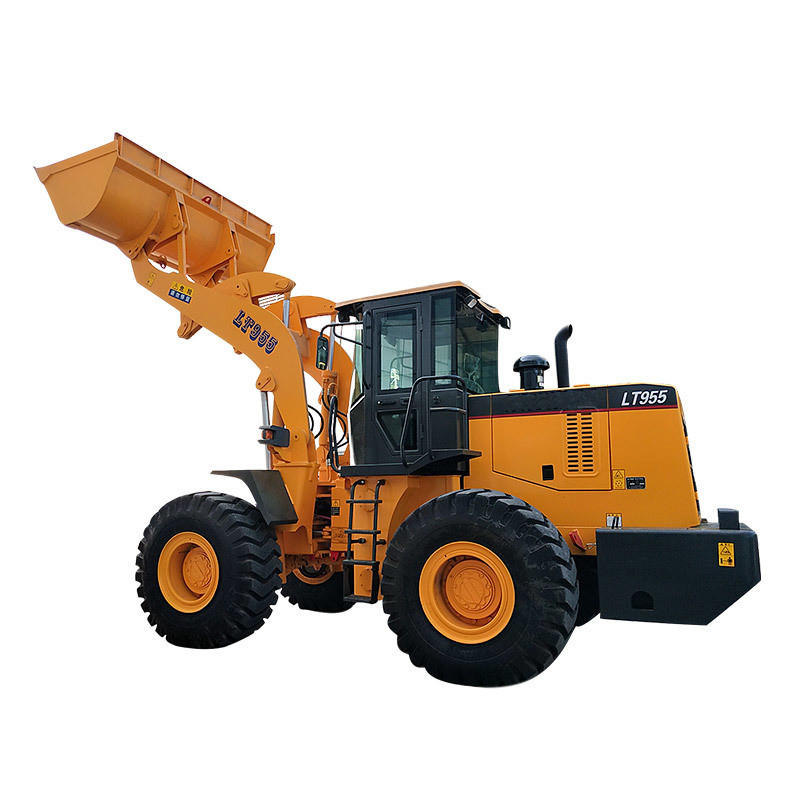

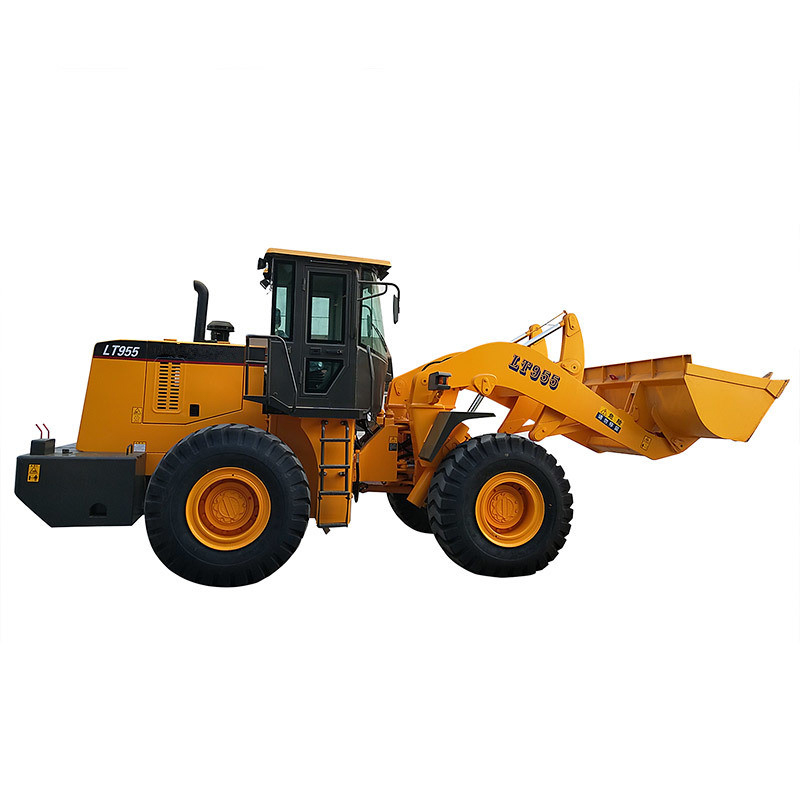

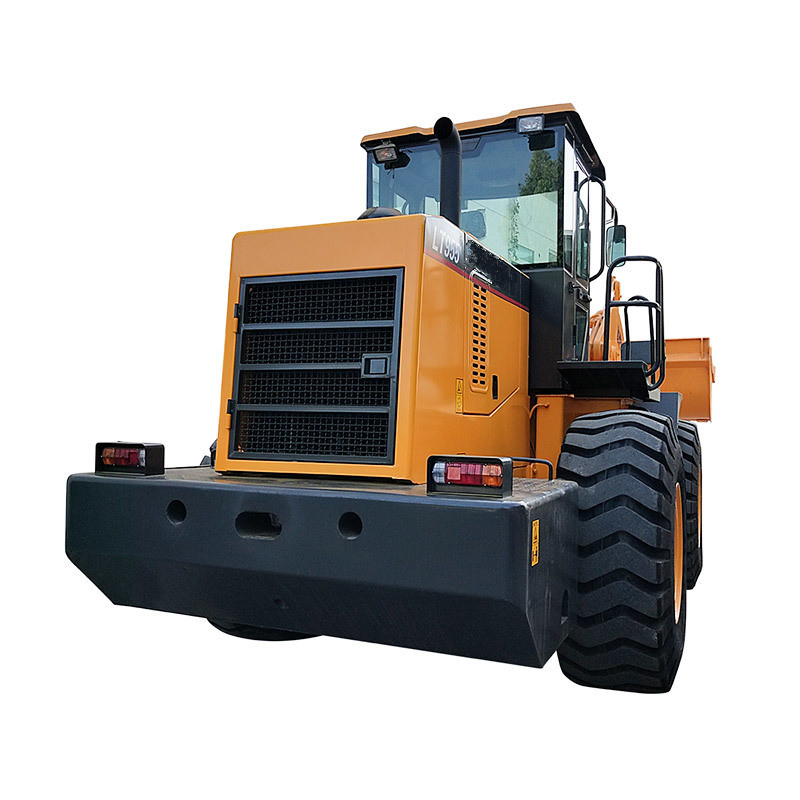

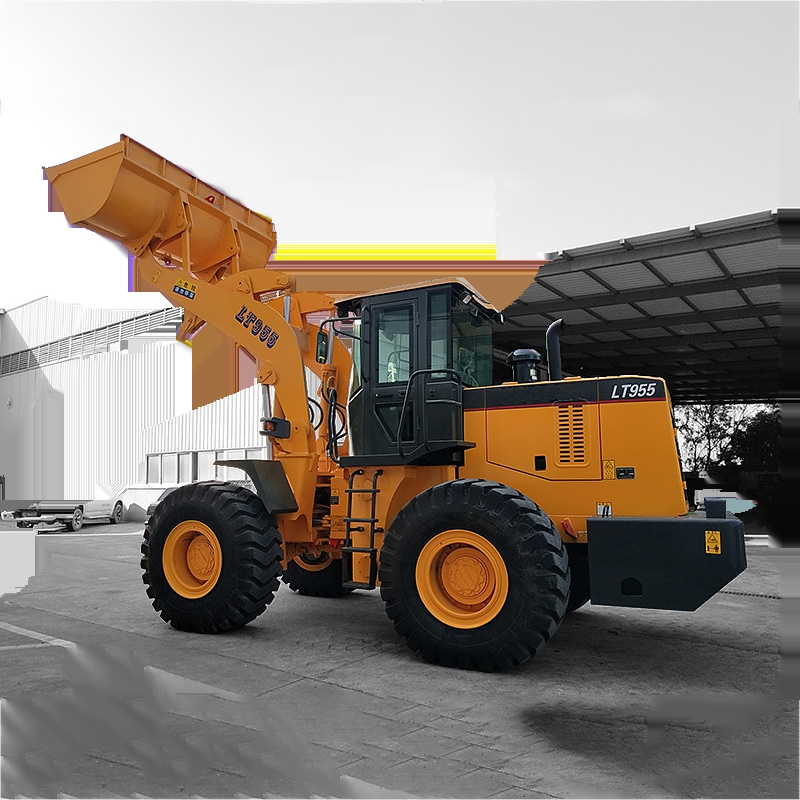

LT955 5 Ton Compact Frame Medium Front End Wheel Loader

The loader is a kind of earthwork construction machinery widely used in construction projects such as roads, railways, construction, hydropower, ports, mines, etc. It is mainly used for shoveling bulk materials such as soil, sand, lime, and coal. It can also be used for ore, Use hard soil for light shoveling and digging. Different auxiliary working devices can also be used for bulldozing, lifting, and other materials such as timber loading and unloading operations.


Compact frame 5 ton medium front wheel loader LT955 product feature

Powerful engine
Weichai Engine, strong power, energy conservation, and environmental protection. Cummins engine, Shangchai engine is optional.
Hydraulic systems
To adopt confluence of dual-pump confluence and diffluence technology, rational use of engine power, reduce energy consumption effectively. Independent transmission oil and hydraulic oil cooling improve the hydraulic system stability.
Effective operations
Small turning radius, more flexible. The working efficiency is 15% higher than the traditional types.
Comfortable operating environment
Cab with a broad view, noise-isolation, and vibration absorber meet all kinds of operation, which can be dismantled for Large space. Radio with MP3 function and speaker, the joystick control system(Optional) ensure easy operation and more comfortable.
Easy to maintain
New design of skeleton structure hood. A wide-opening hood Makes servicing & maintenance of the engine easier. The large distance between up and down articulated boards creates large maintenance space. Exclusive dust-proof layer and sealed articulated points make the loader more durable.
Rich Optional
Such as the air conditioner,heat systems, joystick, longer arms,quick hitch,log grapple, fork, snow blade, grass fork,enlarged bucket, and teeth, etc.

Compact frame 5 ton medium front wheel loader product parameters

Base parameter Operating weight 16100KG
Rated load 5000KG
Bucket capacity 3.0m³
Engine Engine model Weichai WD10G220E21(Tie II)
Rated power 162KW
Rated rotate speed 2200rpm/min
Max.torque 745.3N.m
Performance parameters Breakout force 145KN
Raise time ≤6.8s
Total ≤12.5s
Grade ability ≥25°
Forward I 0-11.5km/h
Forward II 0-38km/h
Forward III
Forward IV
Reverse I 0-16km/h
Reverse II
Reverse III
Overall dimensions Overall length 7310mm
Overall width 2870mm
Overall height 3220mm
Bucket width 3000mm
Track base 2820mm
Wheelbase 2260mm
Working range parameters Min. ground clearance 450mm
Max.dumping height 3000mm
Max. dumping reach 1310mm
Min. turning radius
Other  Transmission
Tire type 23.5-25

Compact frame 5 ton medium front wheel loader product details

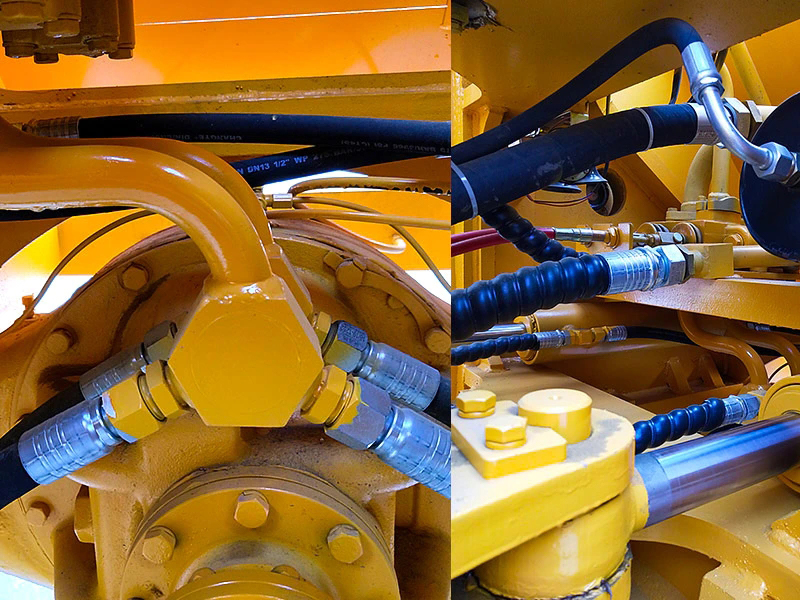

JOOMACH uniquely designed hydraulic pipeline layout,the layout of hydraulic pipelines is reasonable, and the whole row is beautiful, reducing the energy loss of the hydraulic system and providing efficiency.

lt955 5 ton compact frame medium front end wheel loader7

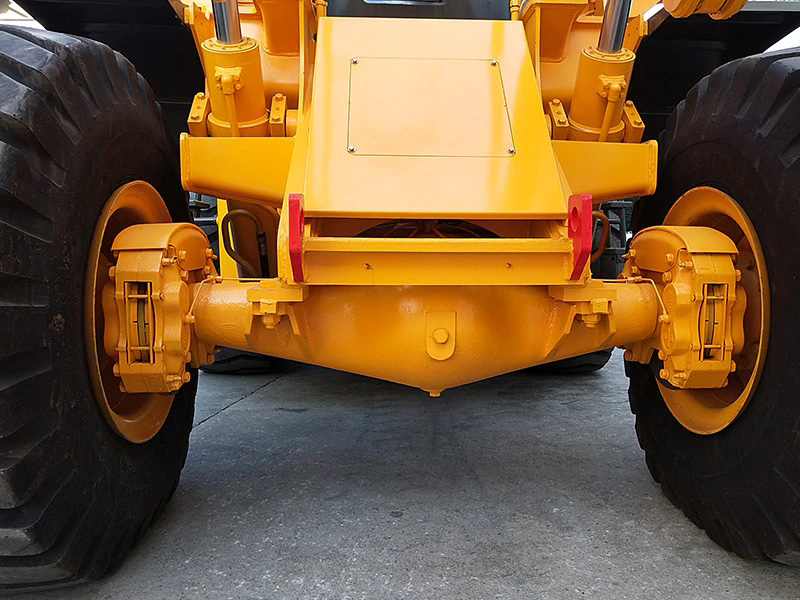

JOOMACH’s self-made high-reliability reinforced front and rear axles increase the anti-overload capability by 50% and the anti-torsion capability by 20%. They also add brake disc protection plates to protect the braking system.

lt955 5 ton compact frame medium front end wheel loader8

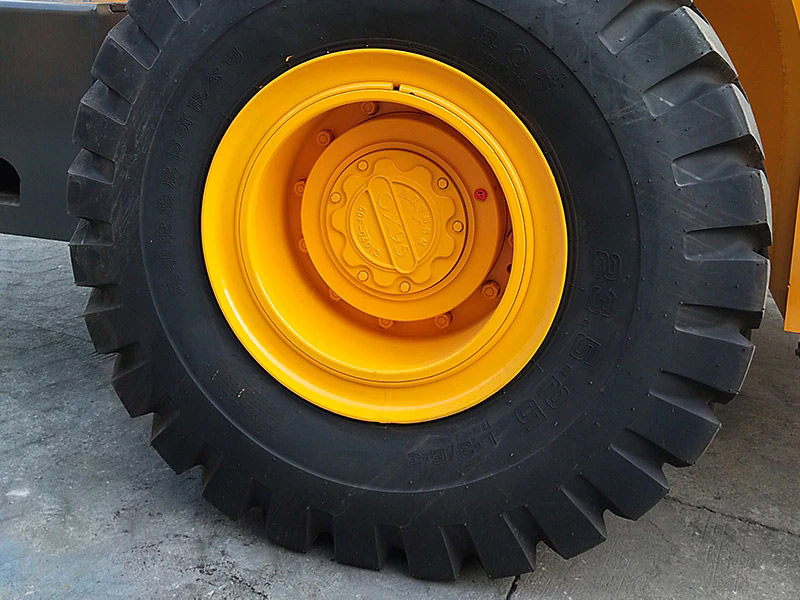

JOOMACH exclusive custom loader tires, high reliability, endurable, and more overload capacity.

lt955 5 ton compact frame medium front end wheel loader9

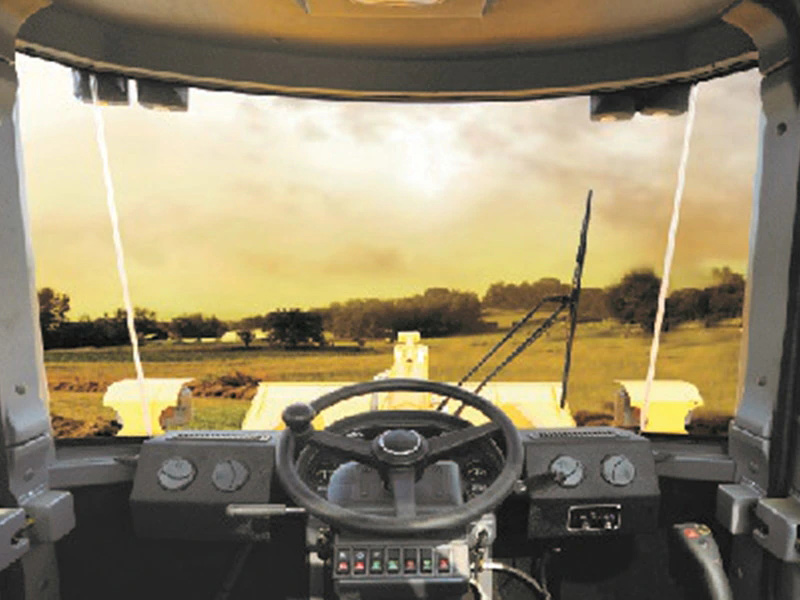

Luxury driver’s cabin, more space, wider visual field.

lt955 5 ton compact frame medium front end wheel loader10

Application and after-sales service

LT955 is usually used in heavy engineering construction.
Like: highway, railways, airport construction and maintenance, industrial or commercial land construction, petroleum exploration and development, port handling, etc.


Please feel free to leave your needs here, a competitive quotation will be provided according to your requirement.
