A Tandem Vibratory roller is a kind of road repairing equipment, mainly suitable for roads and other large-scale paving works, generally used for asphalt concrete pavement construction.
InquiryHydraulic vibration and oscillation, great centrifugal force, and high compactness.
This roller has an articulated frame, hydraulic steering, a small turning radius, and flexible drive.
3. Anticorrosive spray water system and fool capacity water tank and electric pressurized sprinkler.
Shock-proof sock absorber for long life and operate comfortably.
5. Close performance is extremely fine and work close building.
6. Secure hydraulic brake.

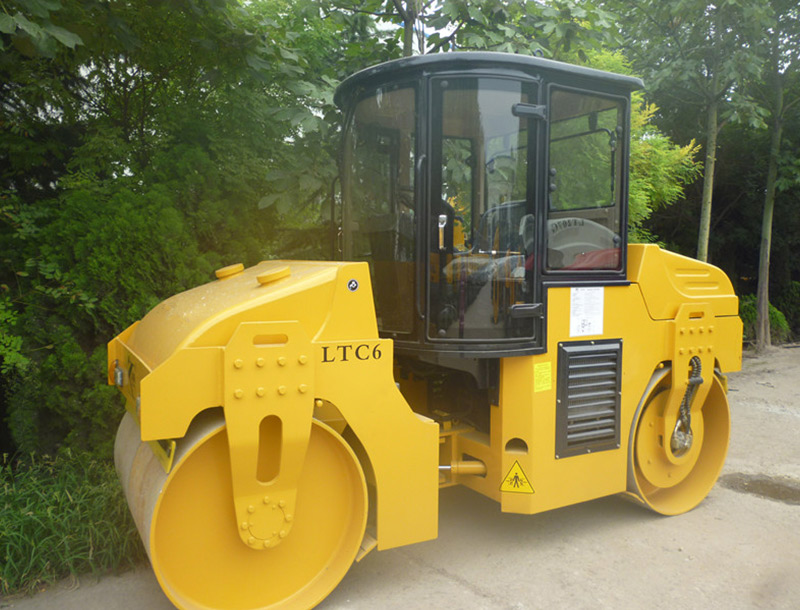

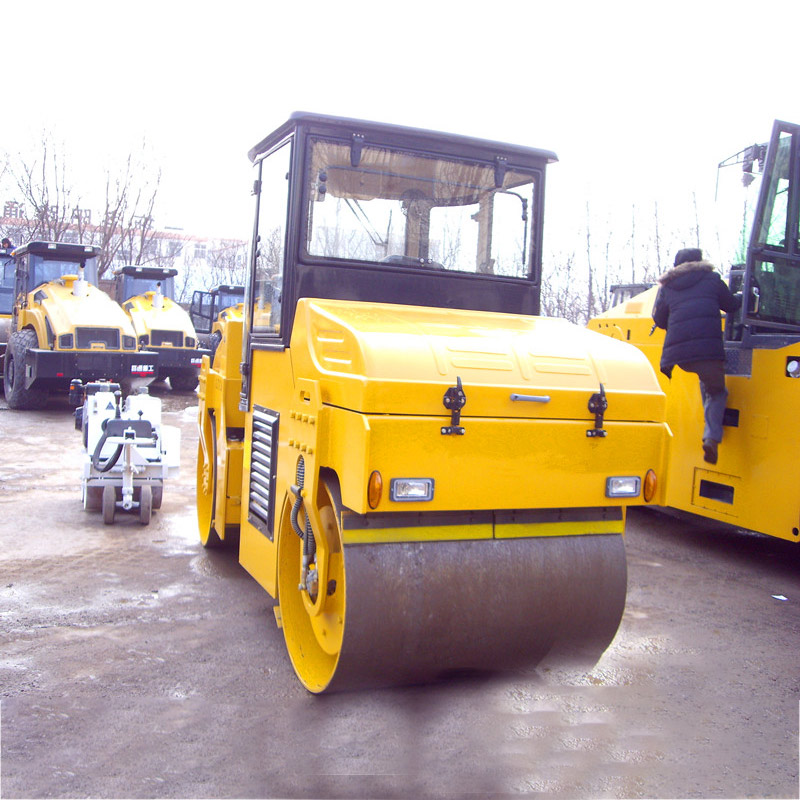

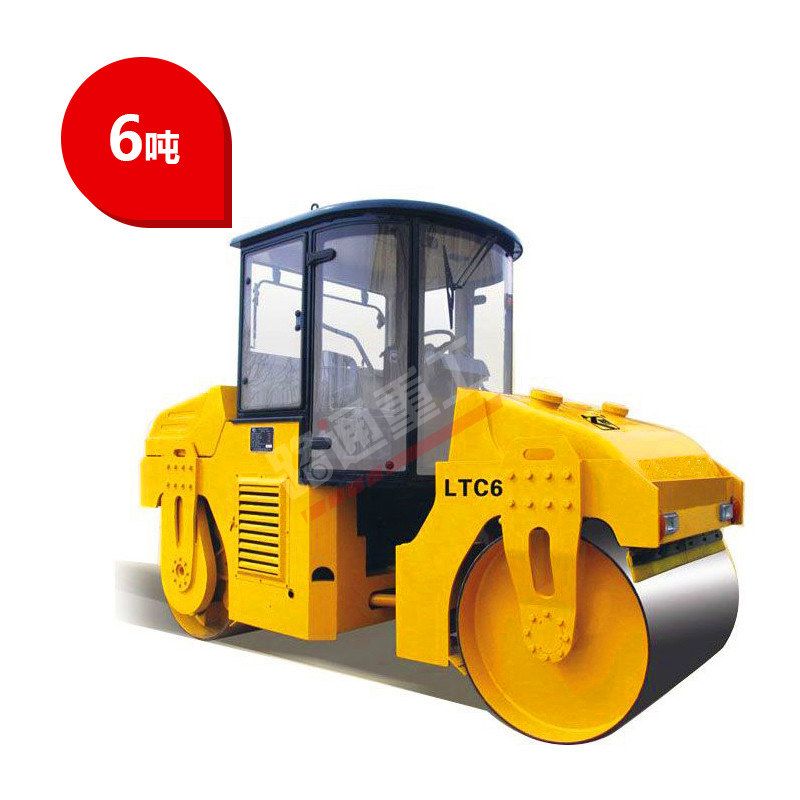

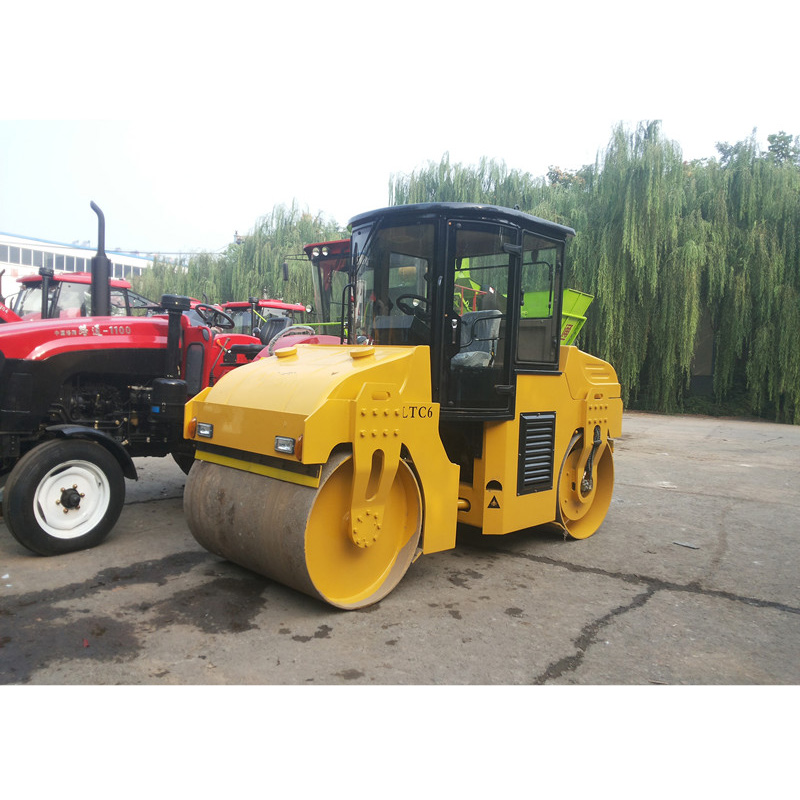

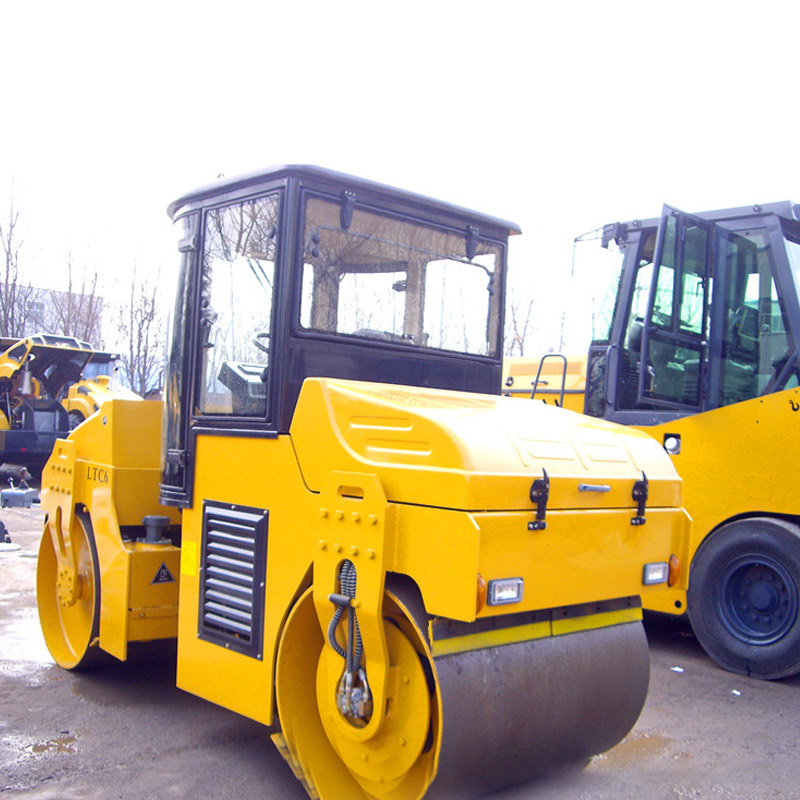

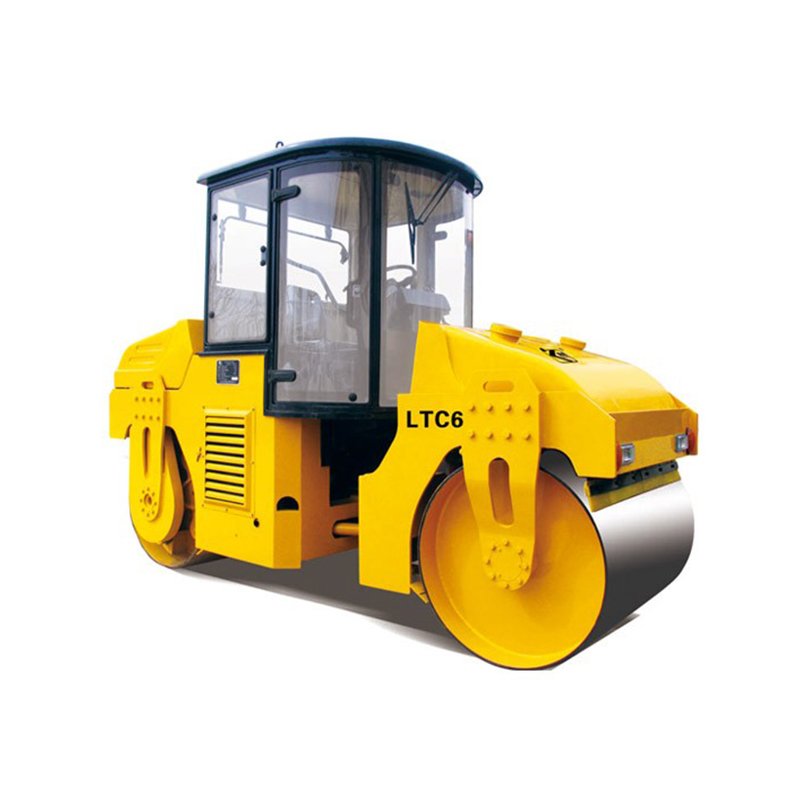

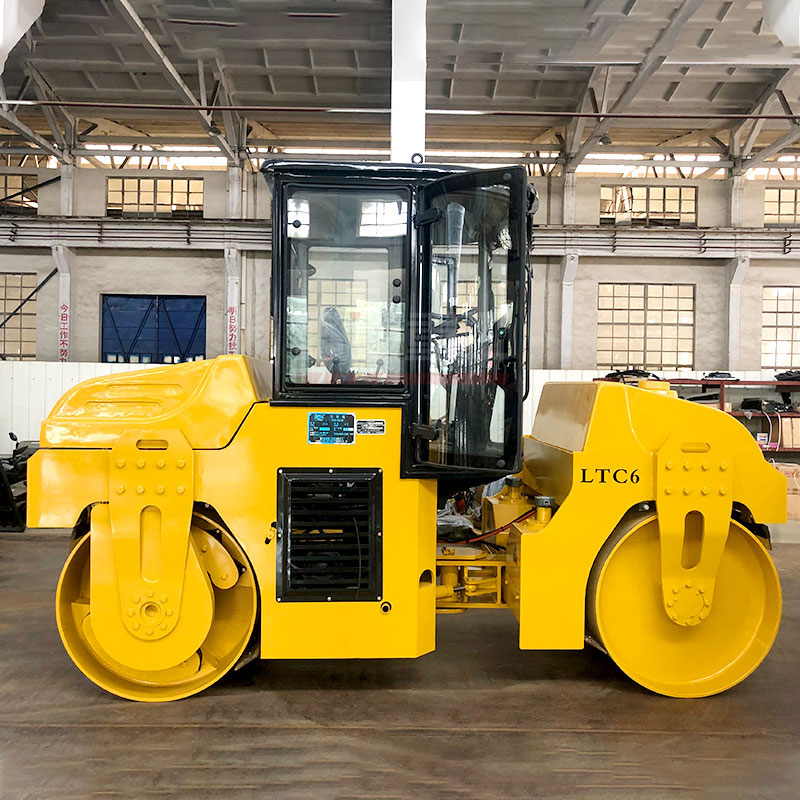

6 tons mech-drive, hydro-vibration roller main technical parameters| Model | LTC6 | LTC6D | |
| Operating mass | kg | 6000 | 6000 |
| Static linear (front and rear) | N/cm | 232.4 | 232.4 |
| Vibration amplitude | HZ | 46 | 43 |
| Centrifugal frequency | KN | 55 | 0.6 |
| Oriental vibration amplitude | mm | 0.62 | 2.5/7.5 |
| Travel speed(I/II) | Km/h | 2.5/7.5 | > 20 |
| Grade ability | % | > 20 | 950 |
| Drum diameter | mm | 950 | 1320 |
| Rolling width | mm | 1320 | 3690*1600*2700 |
| Overall dimension | mm | 3690*1600*2700 | 2200 |
| Rated speed | R/min | 2200 | 42 |
| Diesel power | kw | 36.8 | 498BG |
| Diesel model | 4D32T31/502 | 435 | |
| Water tank capacity | L | 435 |
The LTC6/LTC6D double-drum vibrating and oscillating roller is suitable for municipal roads and highway maintenance, as well as for the compaction of narrow roads such as trench foundations with a width of more than 1.5 meters, construction, pipeline backfilling, sports venues, and other narrow roads.
