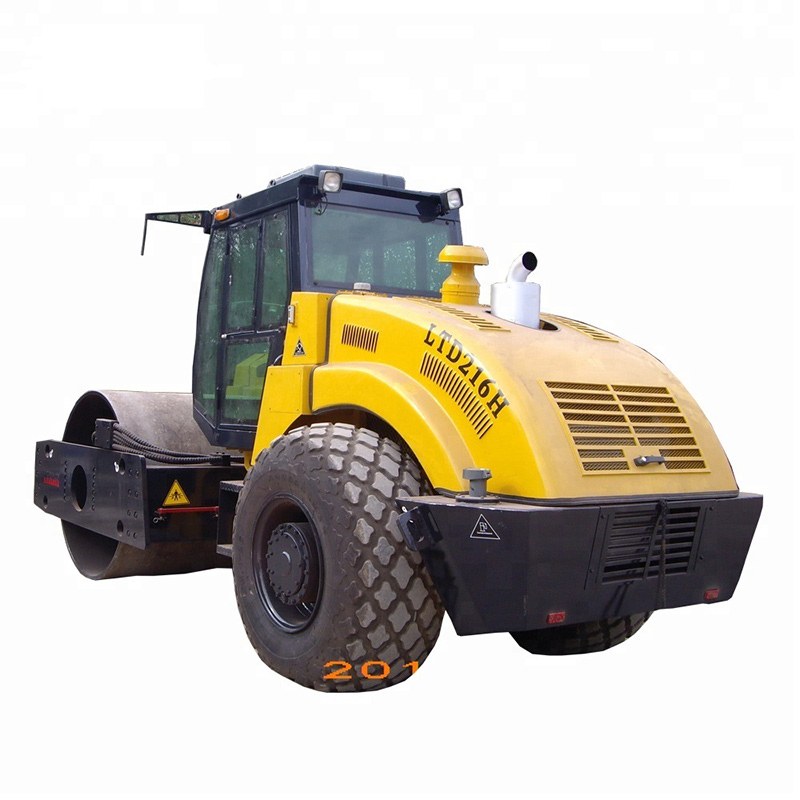

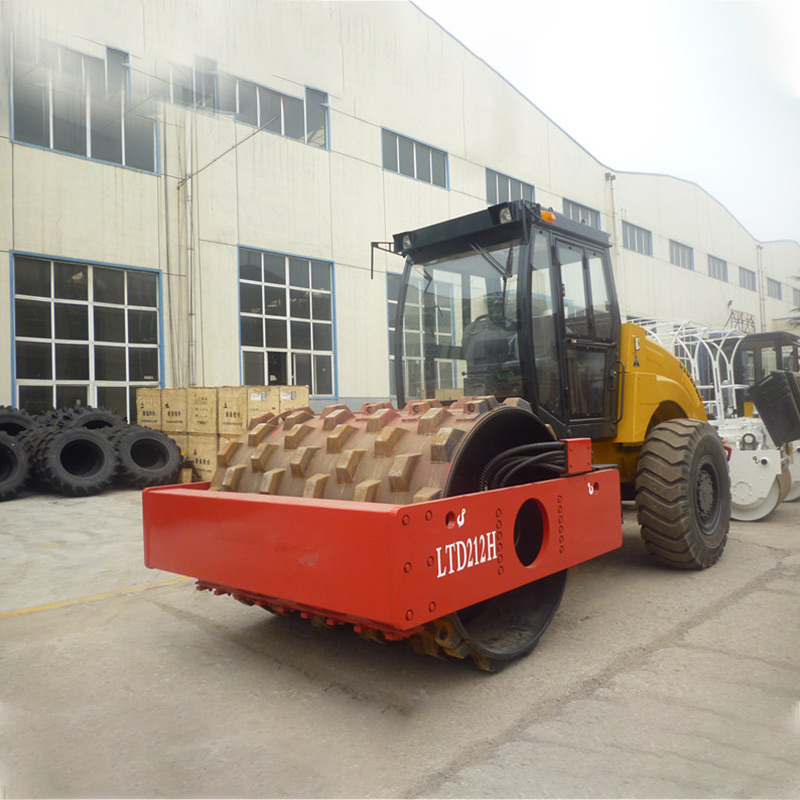

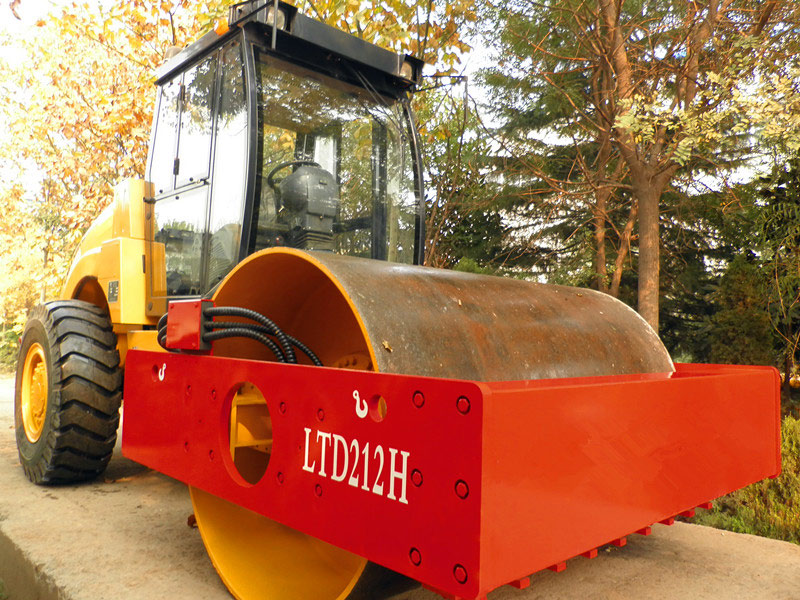

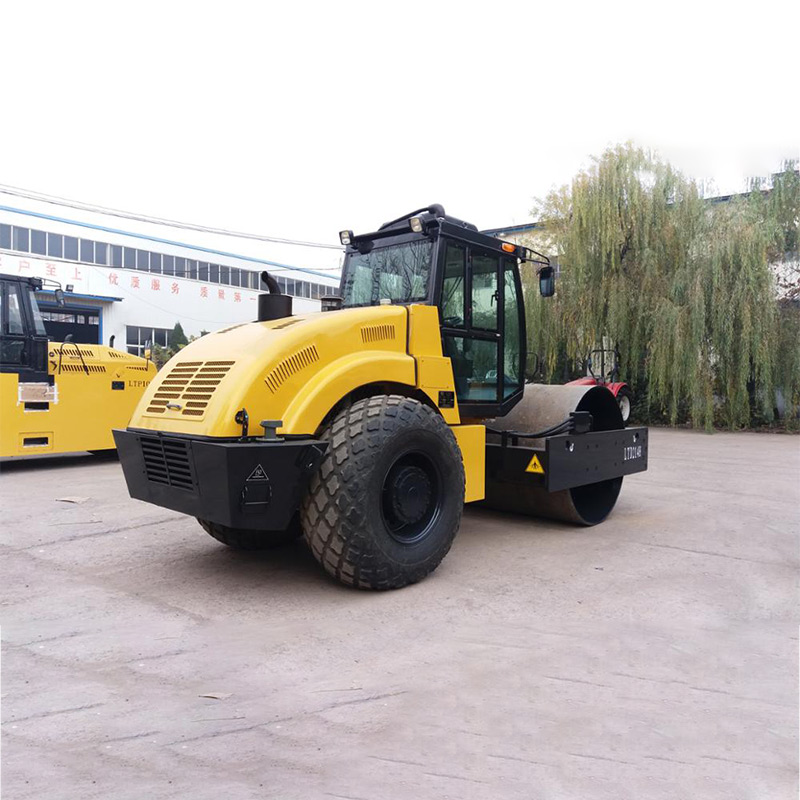

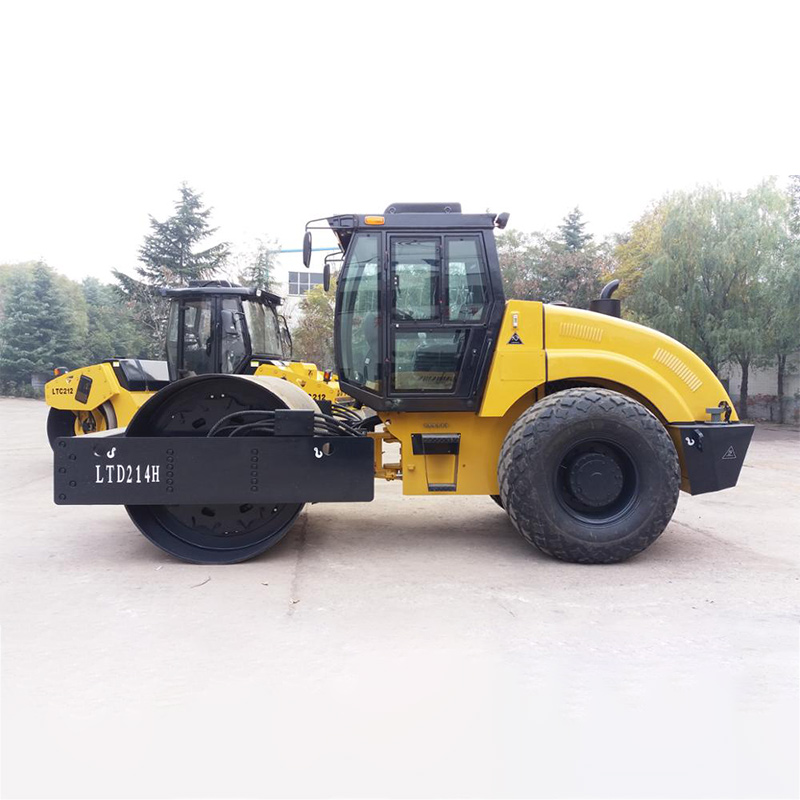

LTd210H/212H/214H/216H Single-Drum Fully Hydraulic Drive Vibration Roller

LTD210H/212H/214H/216H series of fully hydraulic vibratory roller produced with foreign advanced technology and imported key components. This machine is a super heavy-duty vibratory roller with large working quality and strong excitation force. Therefore, it is compaction equipment often used in large-area, high-quality, high-performance, and mechanized construction. It is suitable for rolling non-sticky materials, such as gravel, crushed stone, sand-gravel mixture, sandy soil, etc. It also has a good compaction effect on base materials.

Inquiry

10-16 tons single-drum fully hydraulic drive vibration roller main features

Power system: Cummins B-series turbocharged diesel engine, has a high coefficient of power reserve, fit for the operating condition above 4000 meters altitude.
Full hydraulic, full wheels drive, frequency and amplitude conversion, articulated steering, two sleepless CVT, advanced technology, blocking the oil supply to brake the vehicle, safe and reliable.
Streamline outline, circular windshield glass and curvy hood form a unique style.

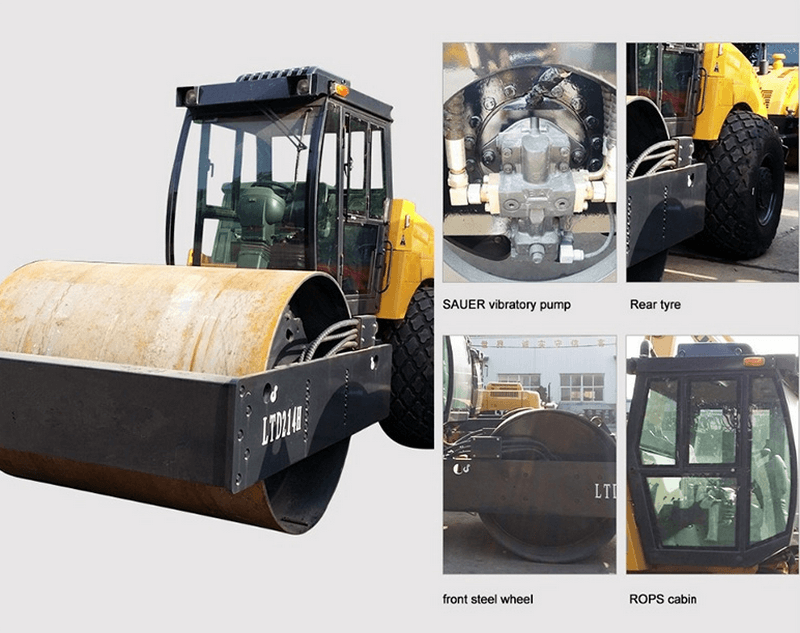

Hydraulic pump and vibrating motors are the 90 series made by the American manufacturer Sauer.

ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller910-16 tons single-drum fully hydraulic drive vibration roller main technical parameters

Model LTD210H
Operating mass kg 10000
Static linear load N/cm 326
Vibration amplitude mm 1.7/0.8
Vibration frequency HZ 28/35
Centrifugal force KN 260/160
Max. travel speed Km/h 12
Grade ability % 35
Turning radius mm 7000
Vibration drum width mm 2100
wheelbase mm 3060
Min. ground clearance mm 360
Overall dimension mm 5650x2280x3000
Diesel power kw 110
Diesel model Cummins6BT5.9

Application and after-sales service

This series of roller is ideal for foundation compaction in highways, mine roads, large dams, important ports, and industrial sites.

ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller16

ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller11ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller12ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller13ltd210h/212h/214h/216h single drum fully hydraulic drive vibration roller14
